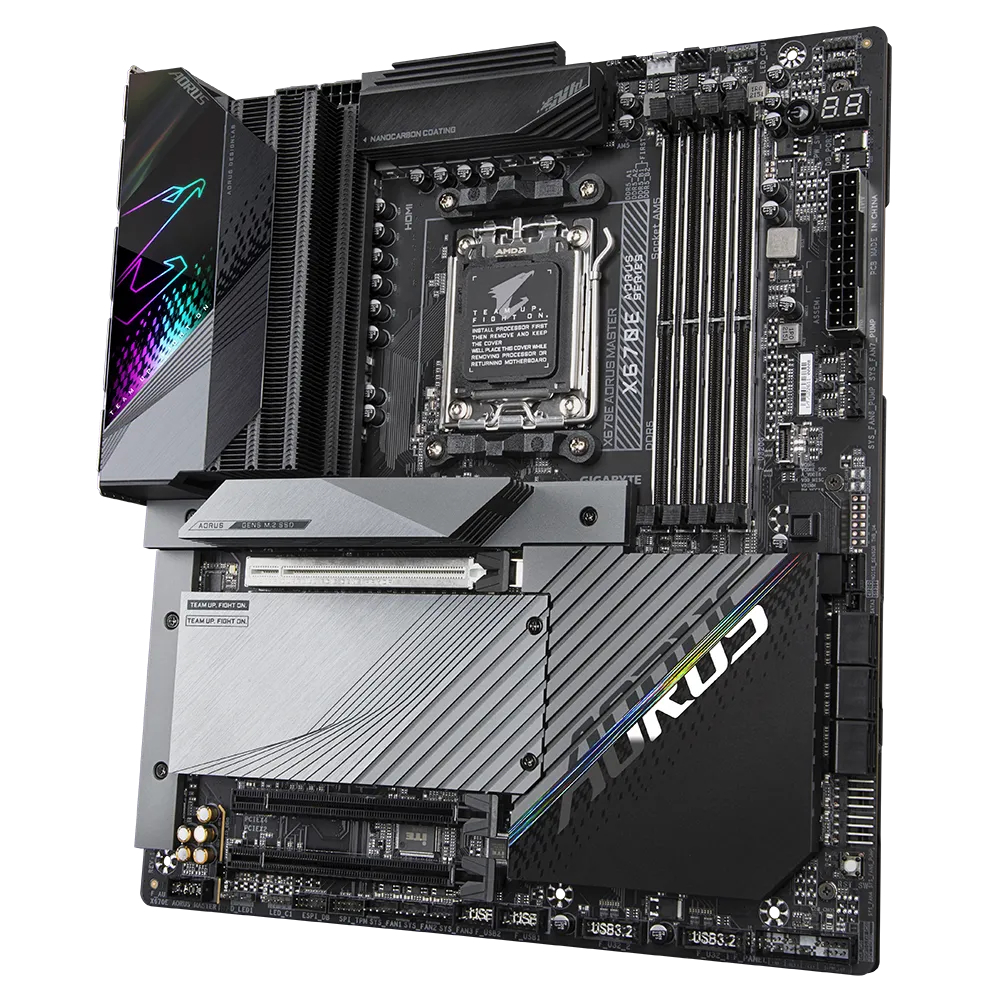

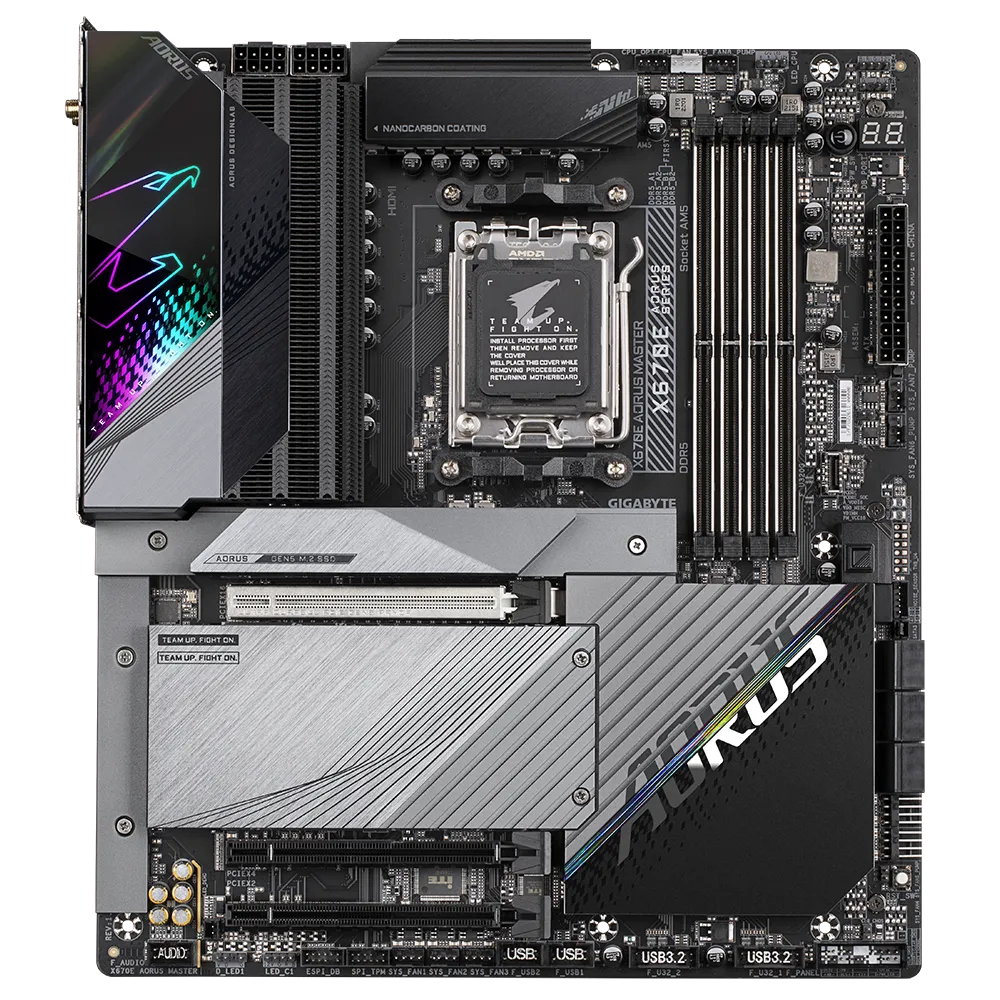

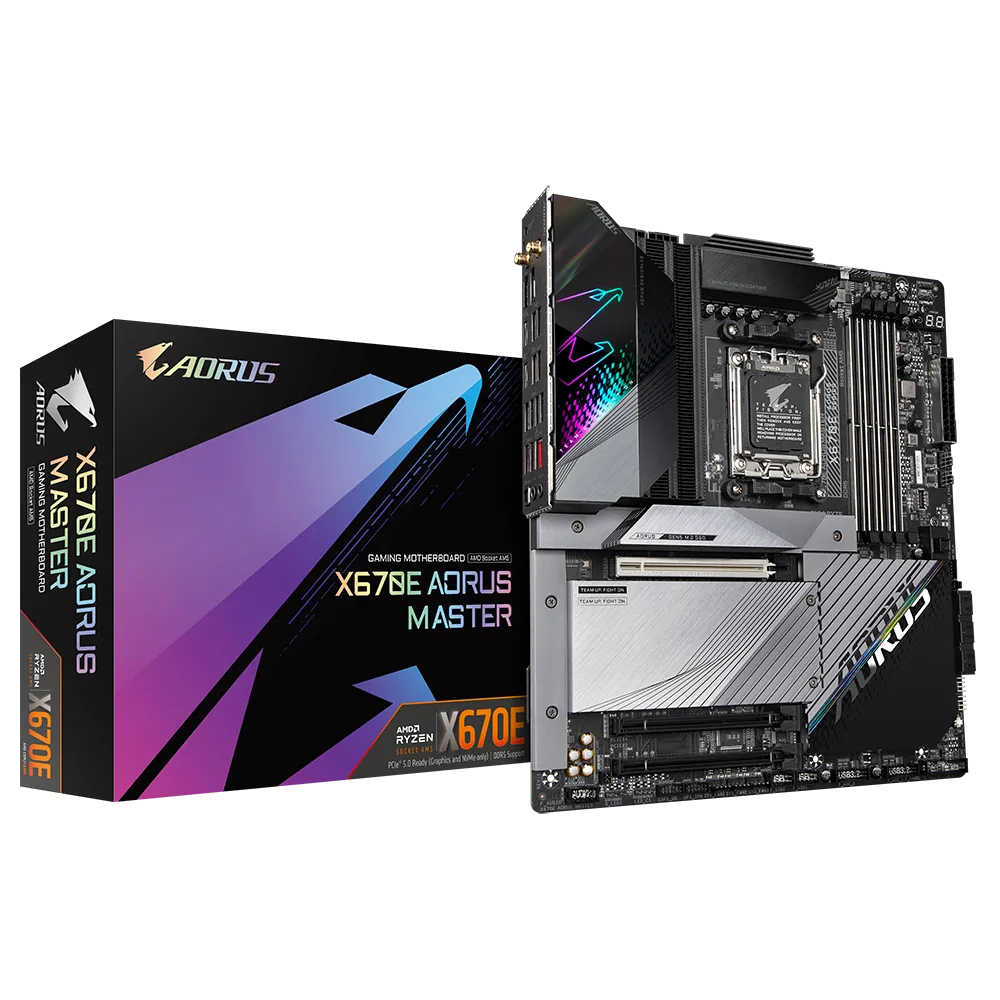

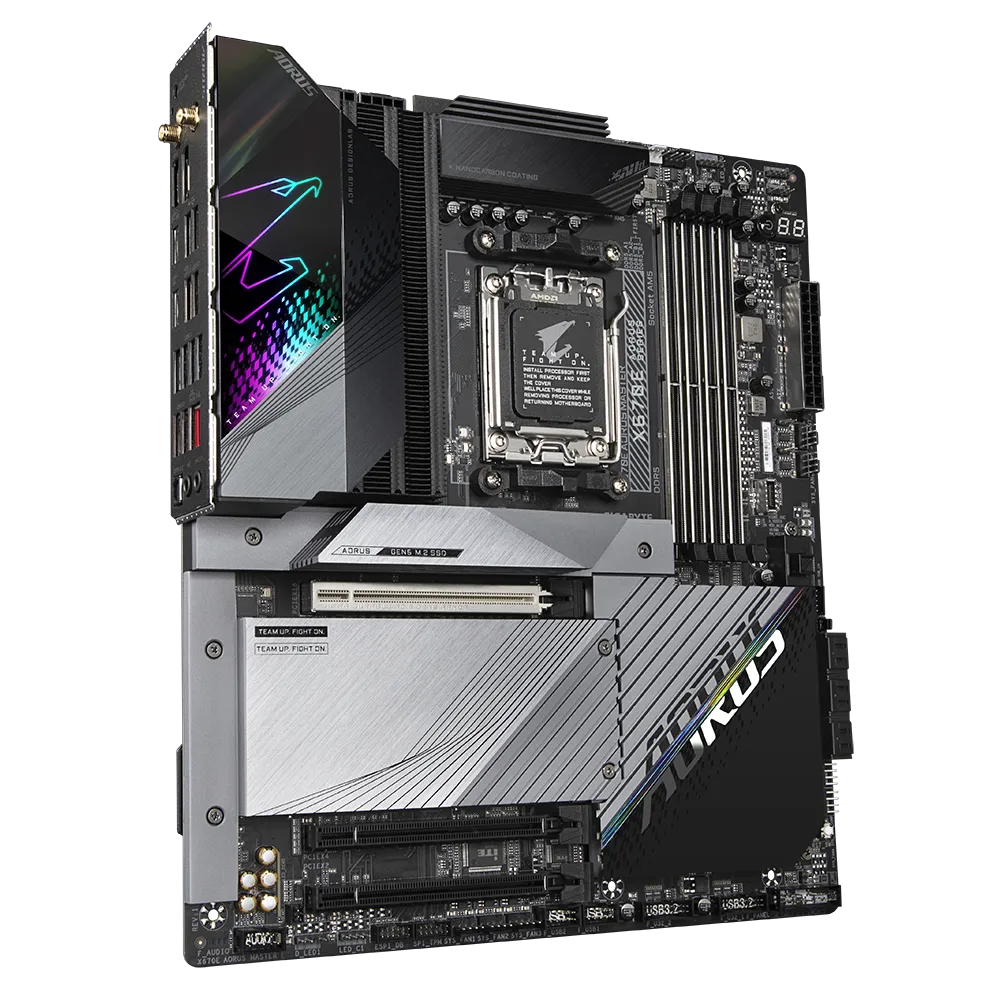

Gigabyte X670E-Aorus-Master AM5 DDR5 Ses GLAN DP/HDMI/USB SATA3 USB3.2 E-ATX

MARKA

GIGABYTE

GARANTİ SÜRESİ

24 AY

EAN

4719331844363

İŞLEMCİ

AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

YONGA SETİ

X670

BELLEK

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Çift kanal bellek mimarisi
ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

DAHİLİ GRAFİK

Birleşik Grafik İşlemcileri

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

GENİŞLEME YUVALARI

1x PCI Express x16 slot (PCIEX16), integrated in the CPU

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

SES DESTEĞİ

Realtek® ALC1220-VB kodek
* Arka panel hat çıkışı jakı DSD sesini destekler.
Support for DTS:X® Ultra
HD Ses Desteği
2/4/5.1/7.1-channel output
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
S/PDIF Çıkış Desteği

LAN

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB PORTLARI

İşlemci

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Yongaseti

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 yuva dahili USB bağlantısı ile

Chipset+USB 3.2 Gen 1 Hub

4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub

2 x USB 2.0/1.1 ports on the back panel

DEPOLAMA ARAYÜZÜ

x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

6 x SATA 6Gb/s konnektör
* The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot.

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

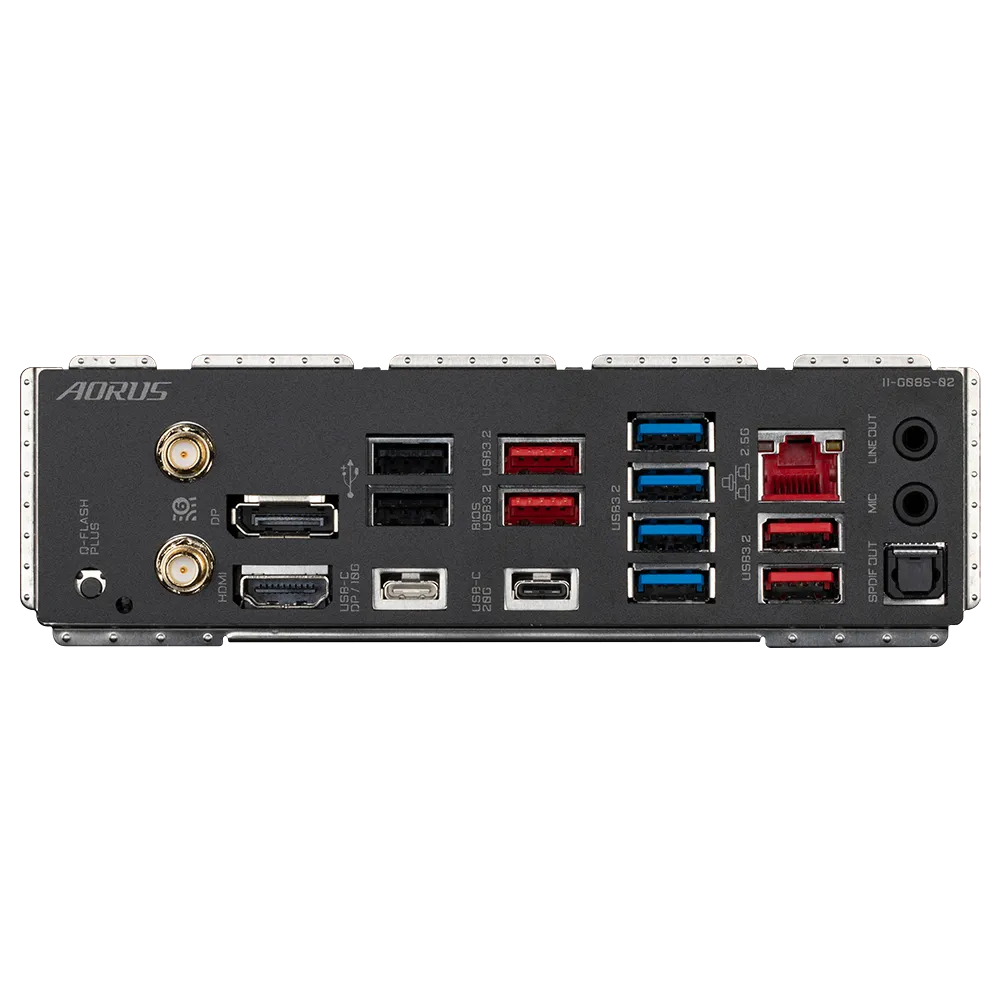

ARKA GİRİŞ/ÇIKIŞ PORTLARI

1 x Q-Flash Plus button
2 x SMA anten konnektörleri (2T2R)
1 x DisplayPort bağlantı noktası
1 x HDMI bağlantı noktası
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 portlar
1 x RJ-45 bağlantı noktası
1 x optik S / PDIF Çıkış konektörü
2 x ses jakı

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1 x 24-pin ATX ana güç konektörü
2 x 8 pinli ATX 12V güç konnektörleri
1 x CPU Fan konektörü
1 x sıvı soğutma CPU fan başlığı
4 x sistem fan konektörü
4 x system fan/water cooling pump headers
2 x Adreslenebilir LED şerit başlıkları
2 x RGB LED şerit başlıkları
1 x CPU soğutucu LED şerit / RGB LED şerit başlığı
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s konnektörler
1 x Ön panel konektörü
1 x Ön panel ses konektörü
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0 / 1.1 başlıkları
1 x noise detection header
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
TPM özeliği, bölgesel kuralların farklılığı nedeniyle opsiyonel olabilir
1 x Power (Güç) Düğmesi
1 x Reset (Yeniden Başlatma) Düğmesi
1 x reset jumper
1 x Clear CMOS bağlayıcı teli
2 x sıcaklık sensör başlığı
Voltaj Ölçüm Noktası

İŞLETİM SİSTEMİ DESTEĞİ

Windows 10 64-bit desteği
Support for Windows 11 64-bit

FORM FAKTÖRÜ

E-ATX Form Faktörü; 30,5 cm x 26,9 cm

BIOS

1 x 256 Mbit flash
Lisanslı AMI UEFI BIOS kullanımı
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
