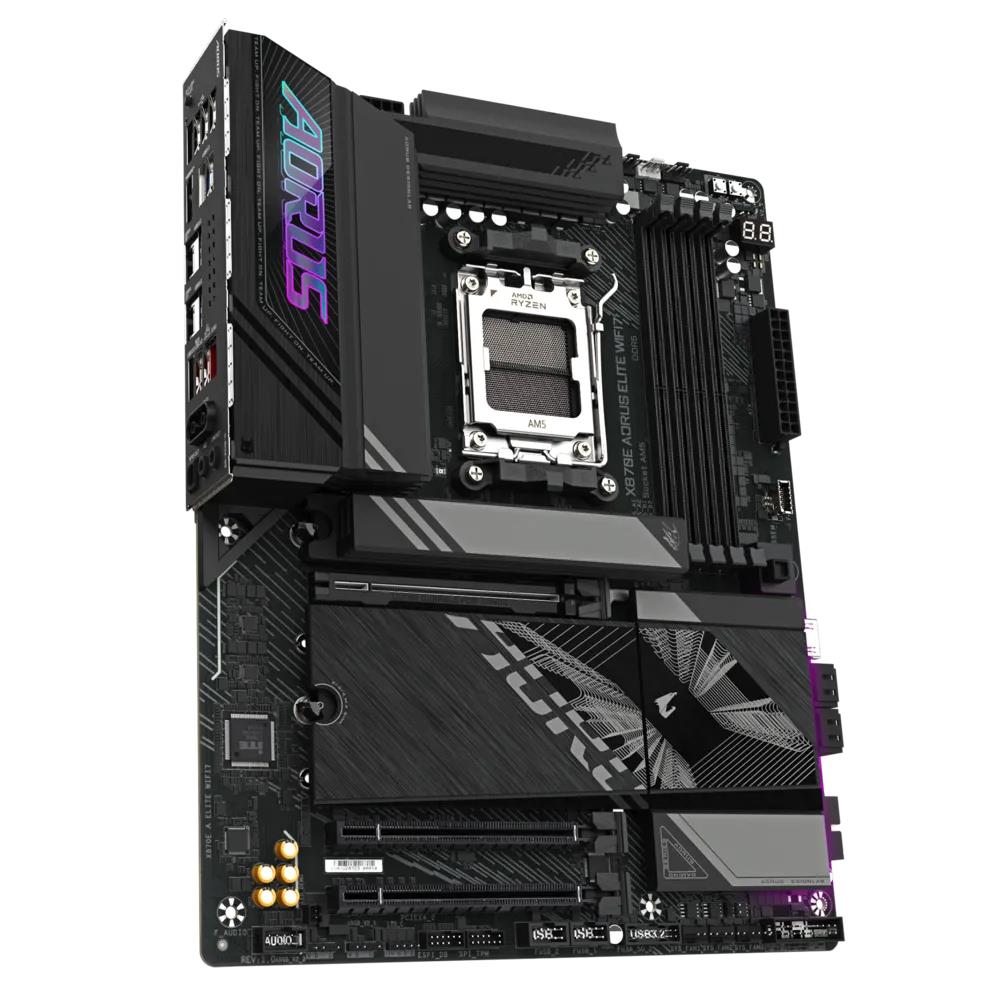

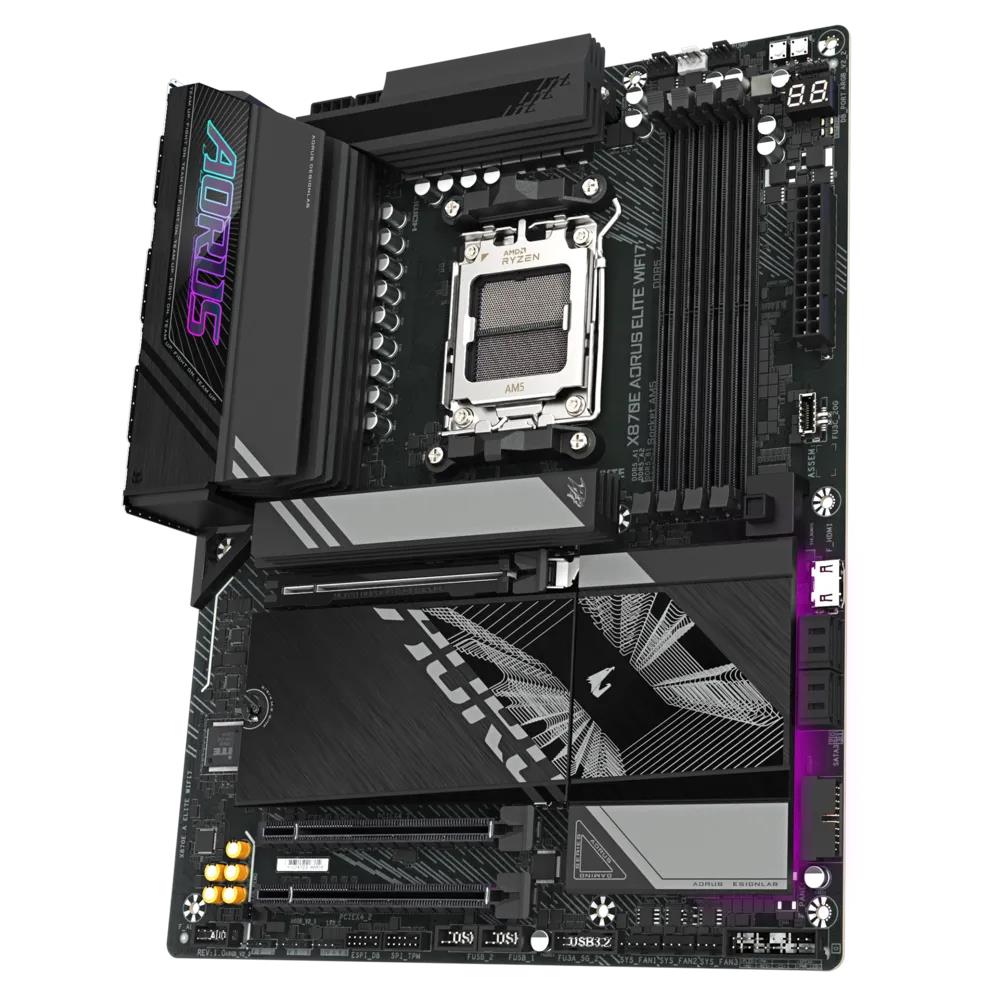

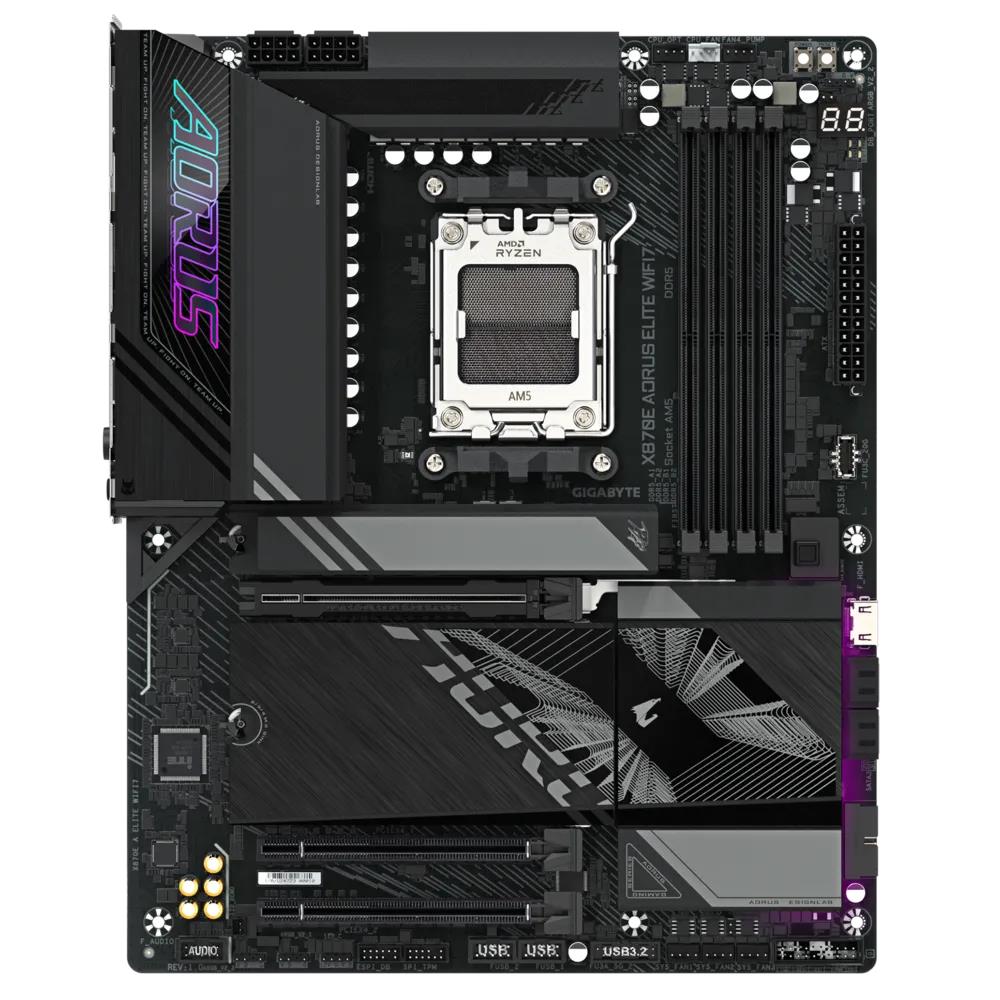

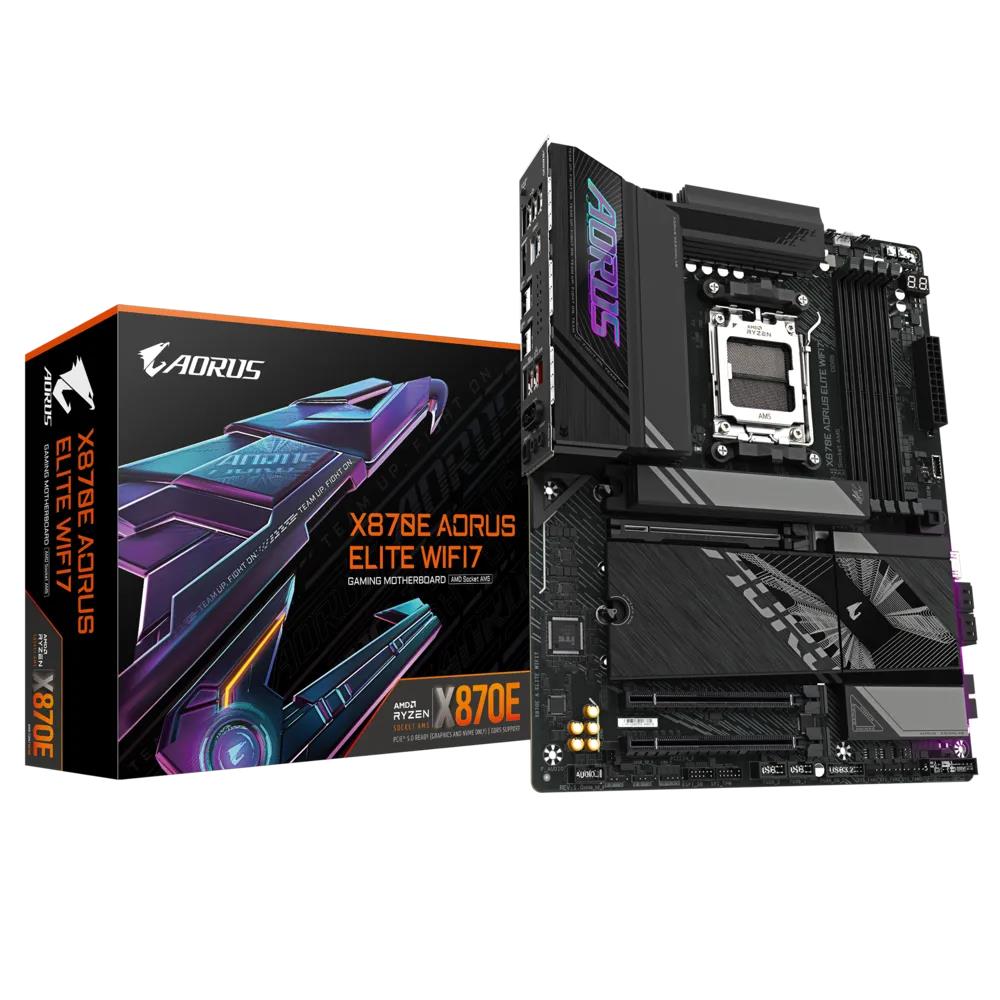

Gigabyte X870E-Aorus-Elite-Wifi7 AM5 DDR5 Ses Glan HDMI/USB4 SATA3 USB3.2 ATX

MARKA

GIGABYTE

GARANTİ SÜRESİ

24 AY

EAN

4719331864613

İŞLEMCİ

AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors

YONGA SETİ

X870E

BELLEK

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Çift kanal bellek mimarisi
ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTEs website for more information.)

DAHİLİ GRAFİK

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller

2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor - AMD Radeon™ Graphics support

Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.

1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4.

(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time

GENİŞLEME YUVALARI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

SES DESTEĞİ

Realtek® ALC1220 codec
* Arka panel hat çıkışı jakı DSD sesini destekler.
HD Ses Desteği
2/4/5.1/7.1-kanal
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
S/PDIF Çıkış Desteği

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB PORTLARI

CPU+ASMedia USB4® controller

2 x USB4® USB Type-C® ports on the back panel

İşlemci

1 x USB 3.2 Gen 1 port on the back panel

Yongaseti

1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
8 x USB 2.0/1.1 portlar (4 port arka panel üzerinde, 2 port dahili USB bağlığı aracılığı ile kullanılabilir)

DEPOLAMA ARAYÜZÜ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s konektörler

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

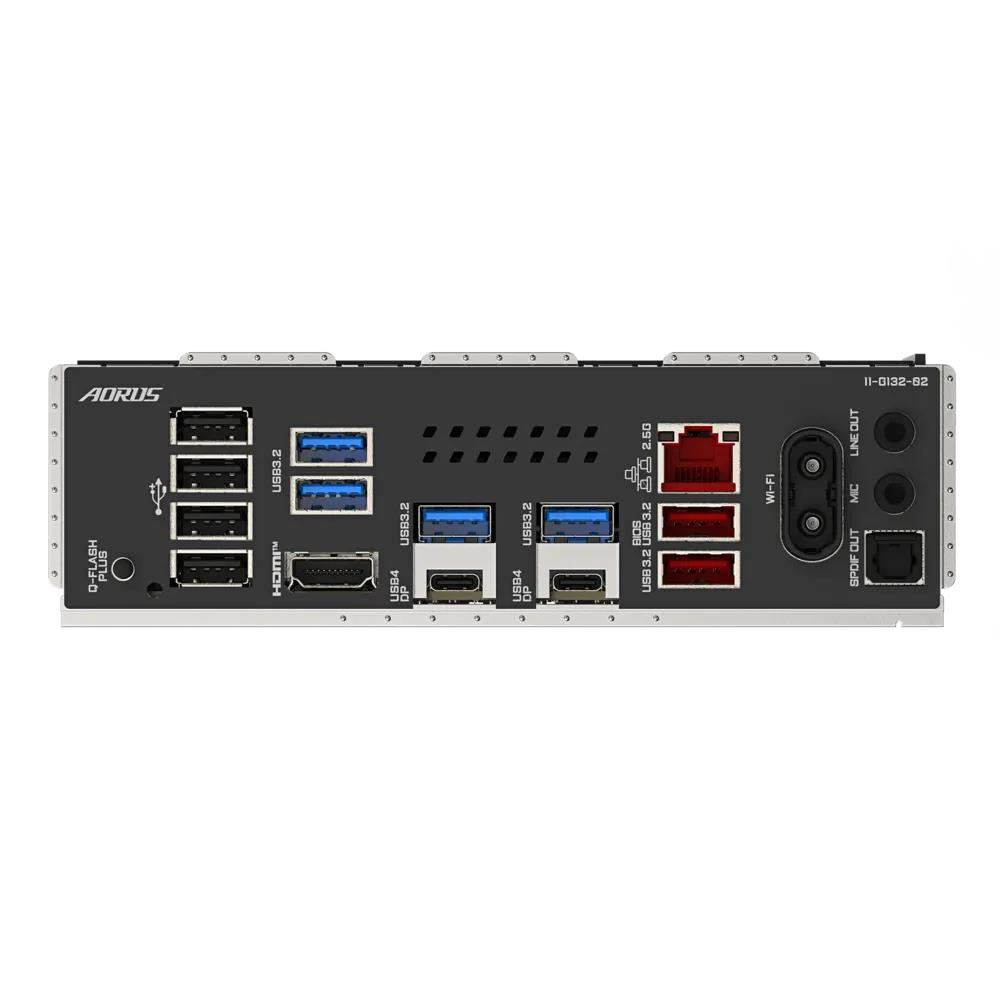

ARKA GİRİŞ/ÇIKIŞ PORTLARI

1 x Q-Flash Plus button
4 x USB 2.0/1.1 yuva
4 x USB 3.2 Gen 1 ports
1 x HDMI bağlantı noktası (Not:)
2 x USB4® USB Type-C® ports (DisplayPort) (Not:)
1 x RJ-45 bağlantı noktası
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x ses jakı
1 x optik S / PDIF Çıkış konektörü

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1 x 24-pin ATX ana güç konektörü
2 x 8 pinli ATX 12V güç konnektörleri
1 x CPU Fan konektörü
1 x CPU fan/water cooling pump header
3 x Sistem fanı bağlantı noktası
1 x sistem fan/sıvı soğutma pompa başlığı
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED şerit başlığı
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s konnektörü
1 x ön panel başlığı
1 x ön panel ses başlığı
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0 / 1.1 başlıkları
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
TPM özeliği, bölgesel kuralların farklılığı nedeniyle opsiyonel olabilir
1 x HDMI bağlantı noktası (Not:)
1 x Power (Güç) Düğmesi
1 x Reset (Yeniden Başlatma) Düğmesi
1 x reset jumper
1 x Clear CMOS bağlayıcı teli

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows 11 64-bit

FORM FAKTÖRÜ

ATX Form Faktör; 30.5cm x 24.4cm

BIOS

1 x 256 Mbit flash
Lisanslı AMI UEFI BIOS kullanımı
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
