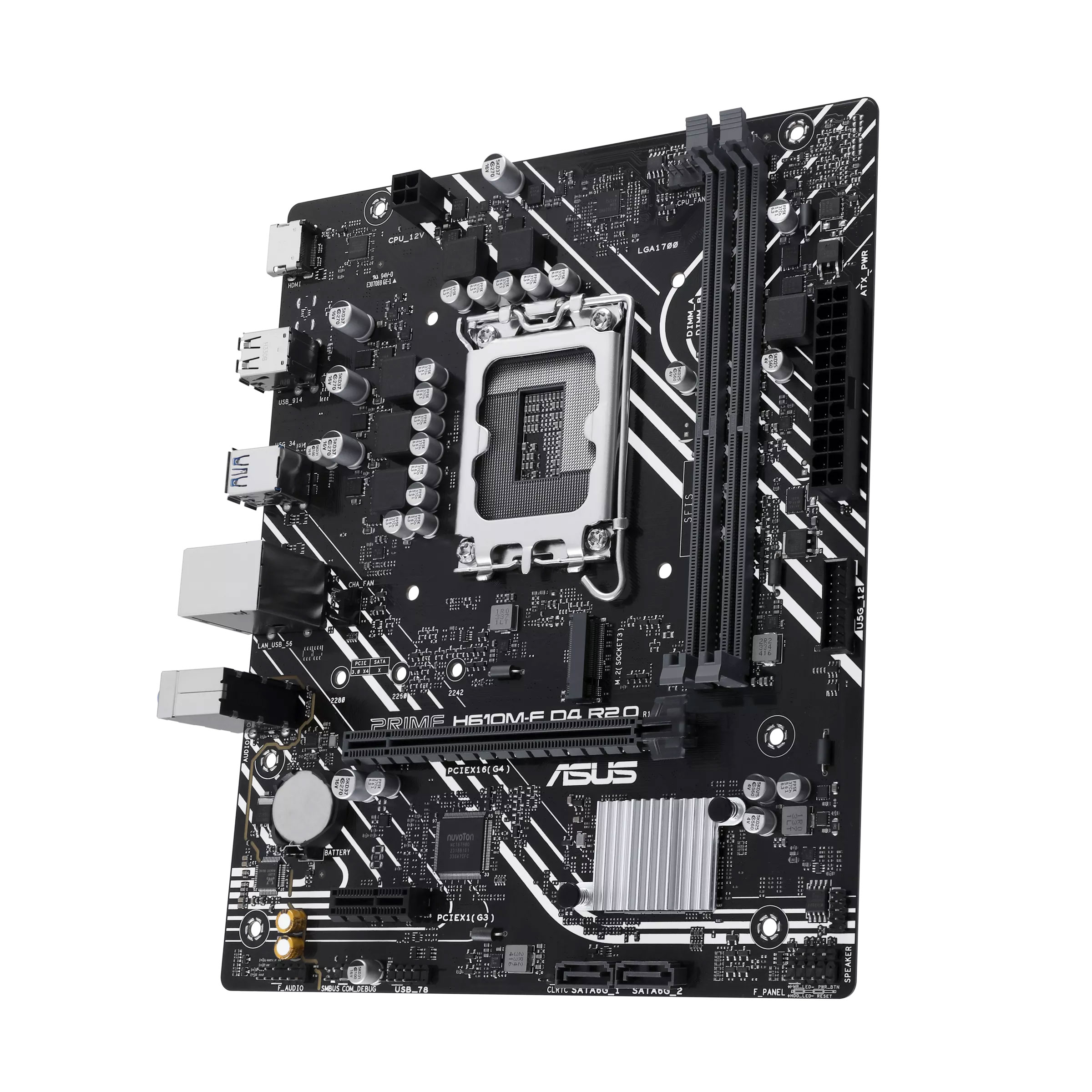

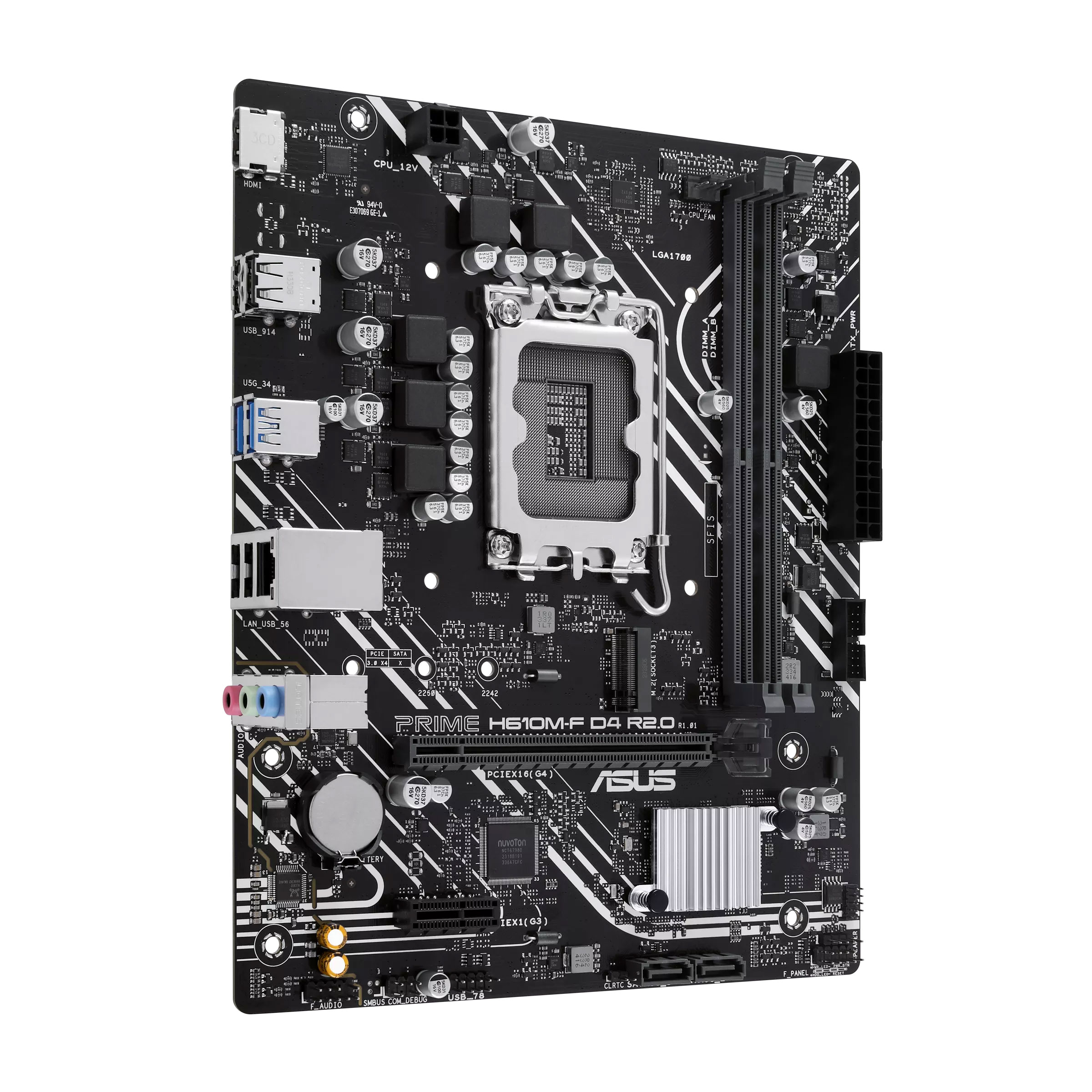

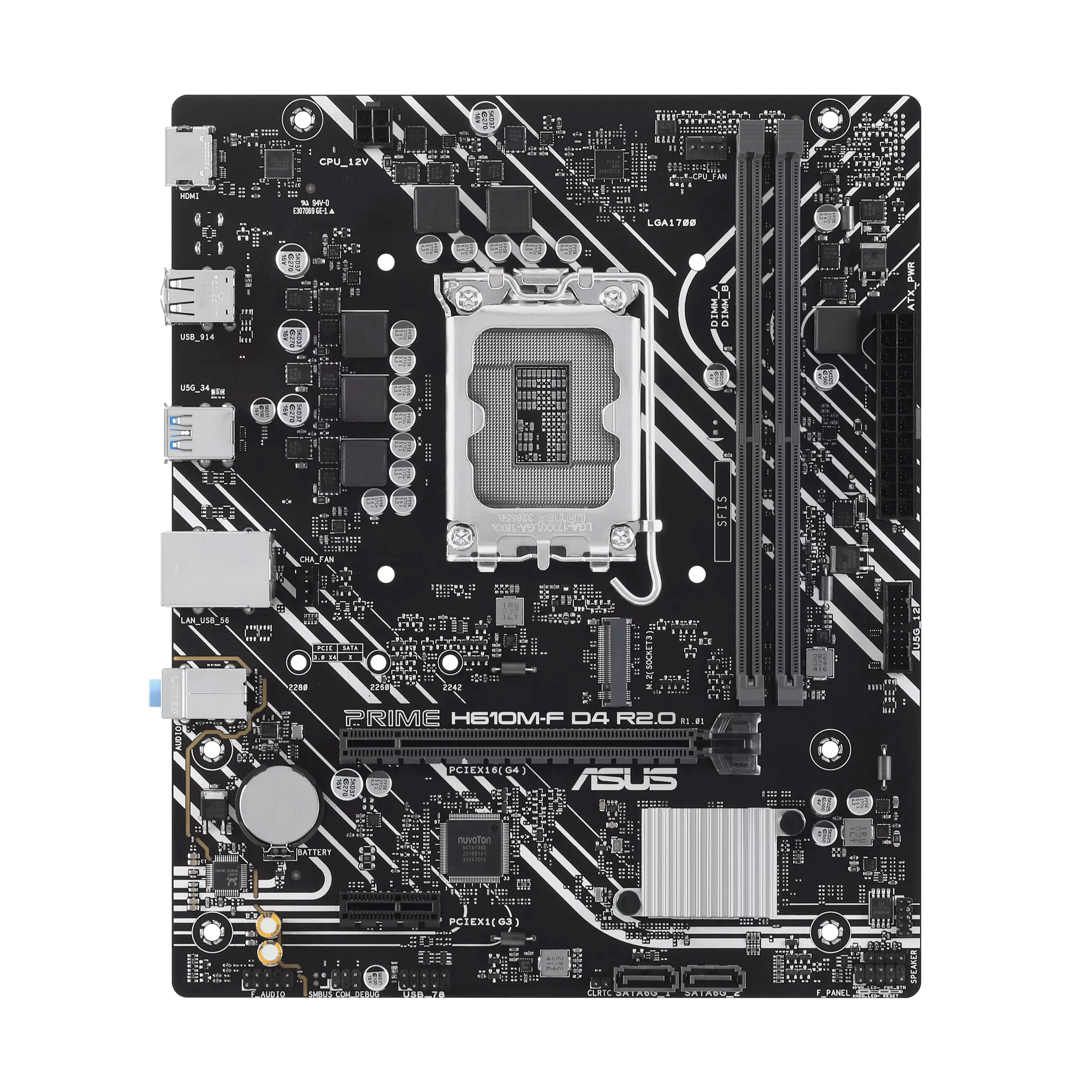

Asus Prime H610M-F D4 R2.0 1700P DDR4 Ses GLAN HDMI SATA3 USB2.0 mATX

MARKA

ASUS

GARANTİ SÜRESİ

24 AY

İŞLEMCİ

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

YONGA SETİ

H610

BELLEK

2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

DAHİLİ GRAFİK

1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

GENİŞLEME YUVALARI

Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

SES DESTEĞİ

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

LAN

1 x Realtek 1Gb Ethernet

USB PORTLARI

Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

DEPOLAMA ARAYÜZÜ

Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
2 x SATA 6Gb/s ports

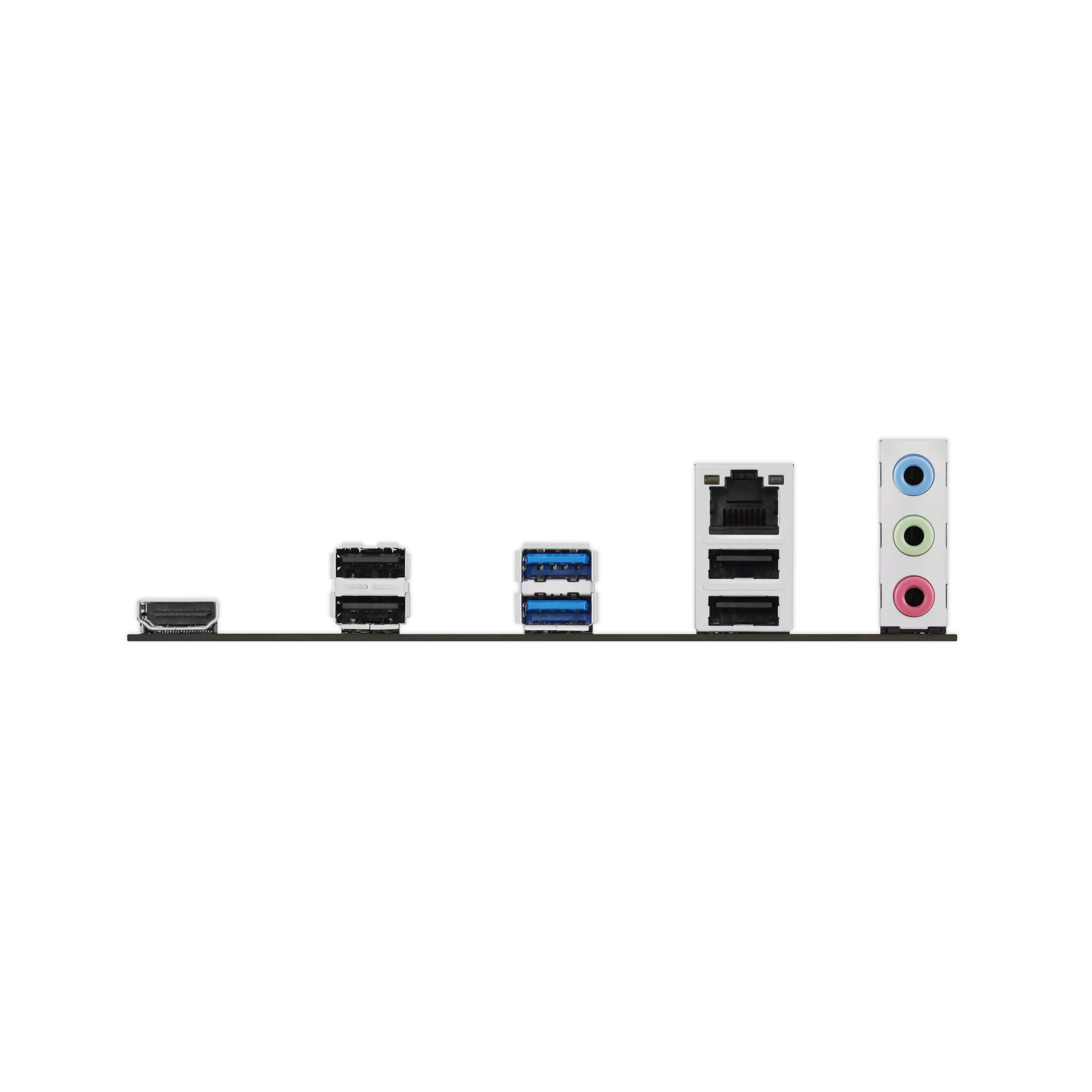

ARKA GİRİŞ/ÇIKIŞ PORTLARI

2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin System Panel header

İŞLETİM SİSTEMİ DESTEĞİ

Windows® 11 , Windows® 10 64-bit

FORM FAKTÖRÜ

micro-ATX Form Factor
8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

KARGO VE GARANTİ

Ürünlerimiz her zaman stokta olup, resmi tatil günleri hariç hafta içi saat 16:00’a ve Cumartesi saat 11:00’e kadar verilen siparişler aynı gün, yurt içi kargo ile özenle gönderilmektedir. Ayrıca, tüm ürünlerimiz tamamen orijinal olup, Türkiye distribütör garantisiyle desteklenmektedir.
