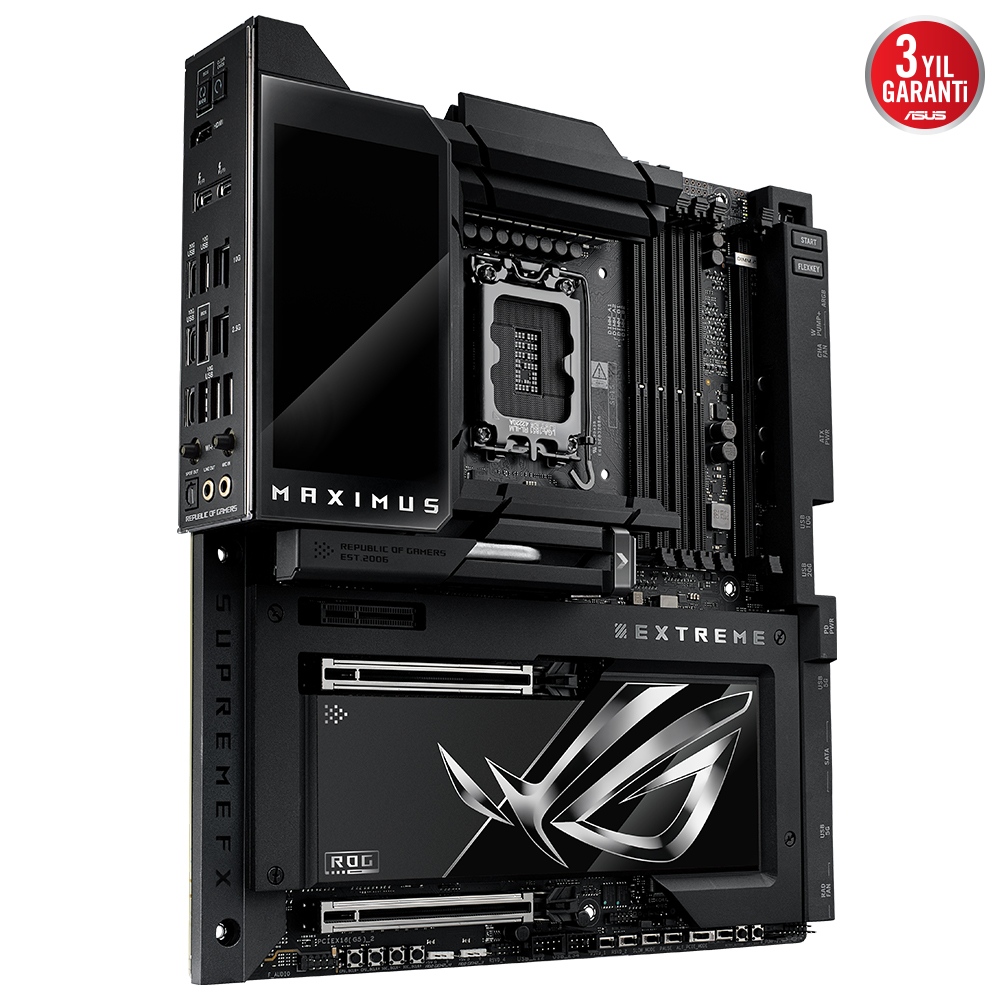

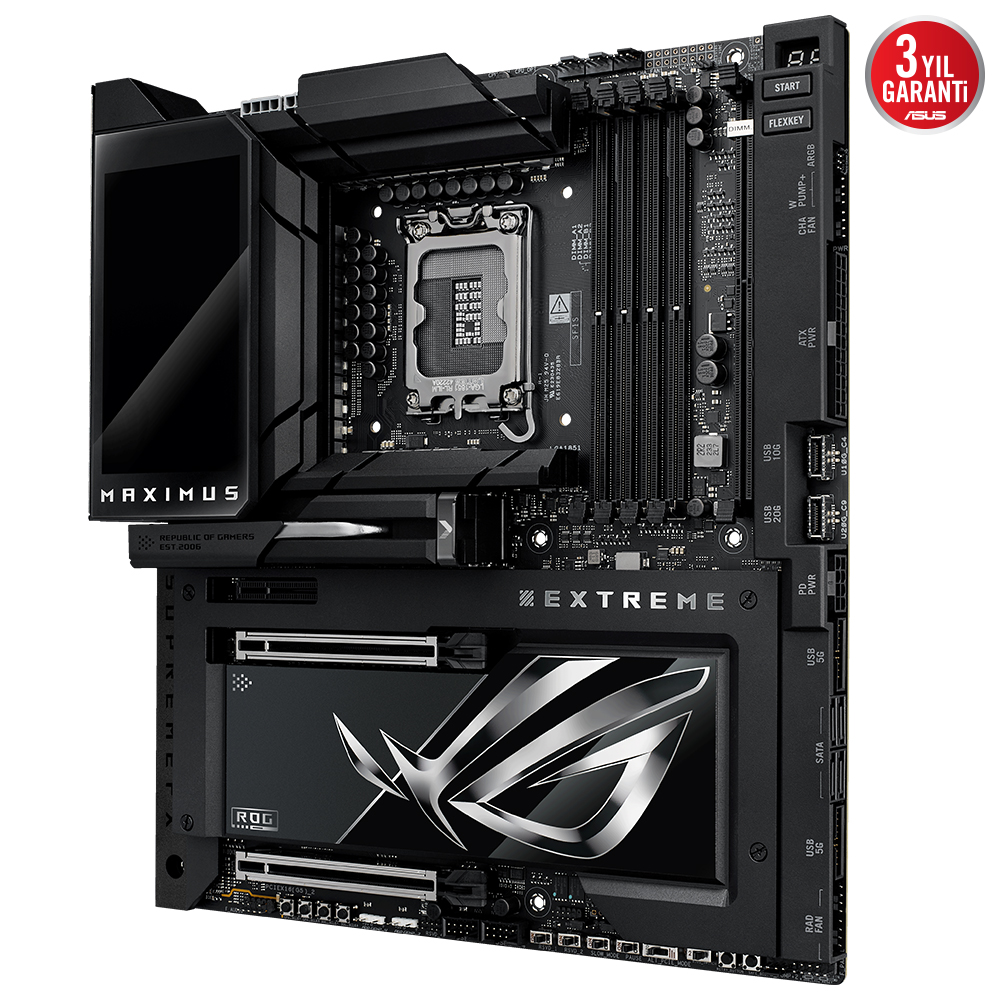

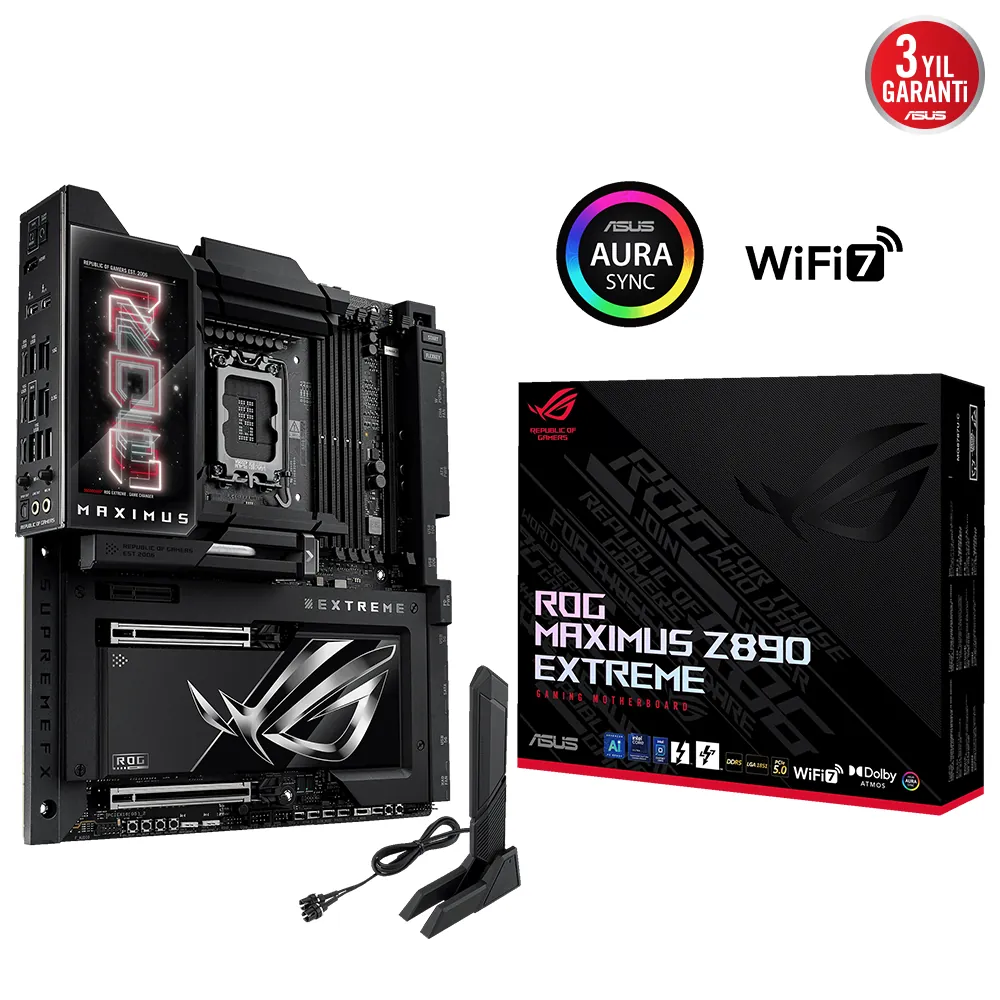

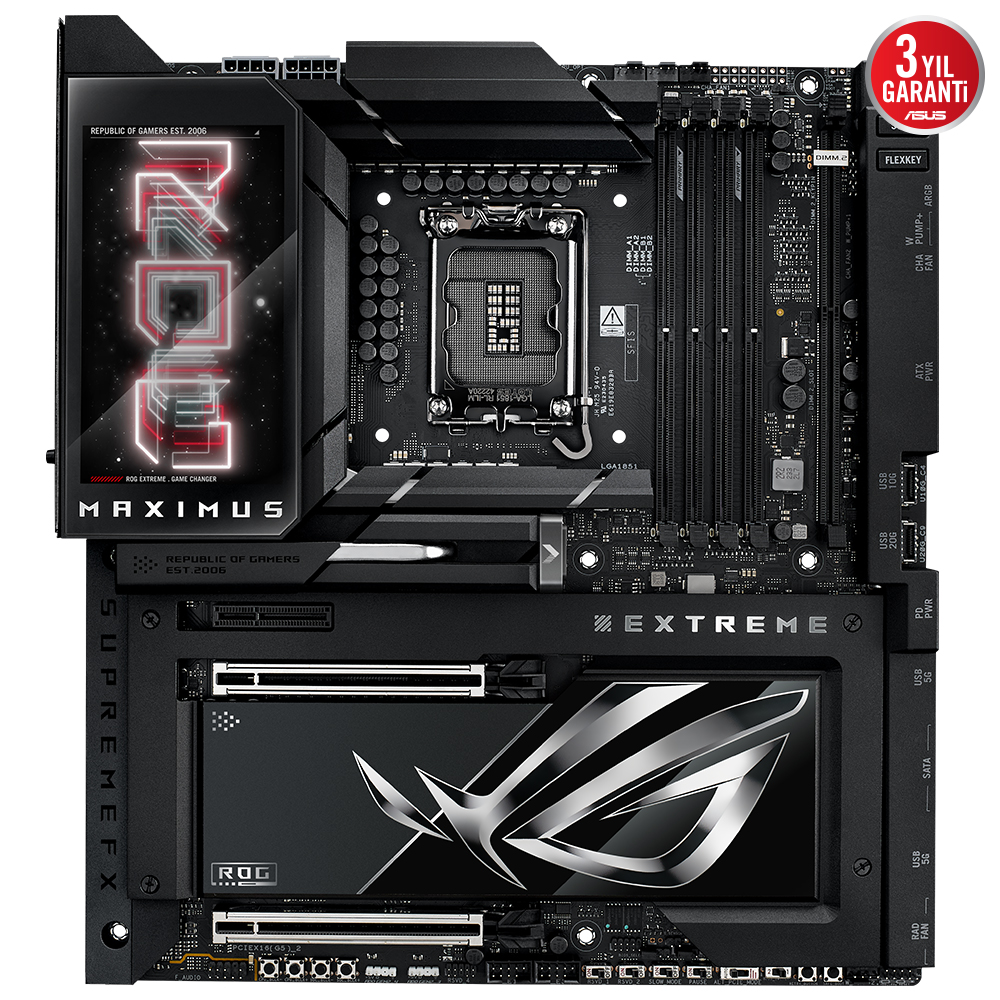

Asus Rog Maximus Z890 Extreme 1851P DDR5 Ses Glan Hdmi Sata3 Usb3.2 E-Atx

MARKA

ASUS

GARANTİ SÜRESİ

36 AY

EAN

4711387754153

İŞLEMCİ

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

YONGA SETİ

Intel® Z890

BELLEK

4 x DIMM slots, max. 256GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

DAHİLİ GRAFİK

1 x HDMITM port**
2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable.
****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s.
*****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
******VGA resolution support depends on processors or graphic cards resolution.
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

GENİŞLEME YUVALARI

Intel® Core™ Ultra Processors(Series 2)*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Intel® Z890 Chipset**
1 x PCIe 4.0x4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

SES DESTEĞİ

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

LAN

1 x Intel® 2.5Gb Ethernet
1 x Marvell® AQtion 10Gb Ethernet
ASUS LANGuard

USB PORTLARI

Rear USB (Total 10 ports)
2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

DEPOLAMA ARAYÜZÜ

Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel® Z890 Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

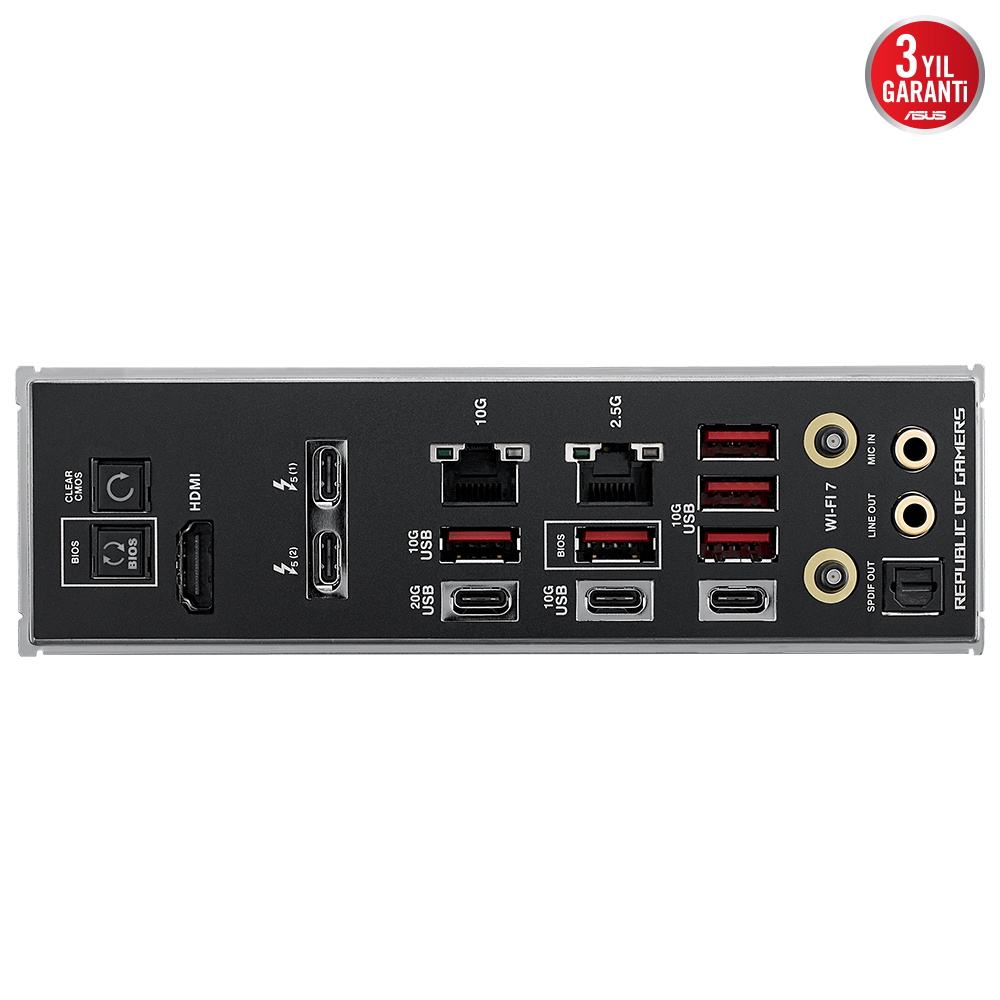

ARKA GİRİŞ/ÇIKIŞ PORTLARI

2 x Thunderbolt™ 5 USB Type-C® ports
1 x USB 20Gbps port (1 x USB Type-C®)
7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
1 x Marvell® AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
4 x BCLK button
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
18 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

İŞLETİM SİSTEMİ DESTEĞİ

Windows 11 (22H2 & later)

FORM FAKTÖRÜ

E-ATX Form Factor
12 inch x 10.9 inch (30.5 cm x 27.7 cm)

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

KARGO VE GARANTİ

Ürünlerimiz her zaman stokta olup, resmi tatil günleri hariç hafta içi saat 16:00’a ve Cumartesi saat 11:00’e kadar verilen siparişler aynı gün, yurt içi kargo ile özenle gönderilmektedir. Ayrıca, tüm ürünlerimiz tamamen orijinal olup, Türkiye distribütör garantisiyle desteklenmektedir.
