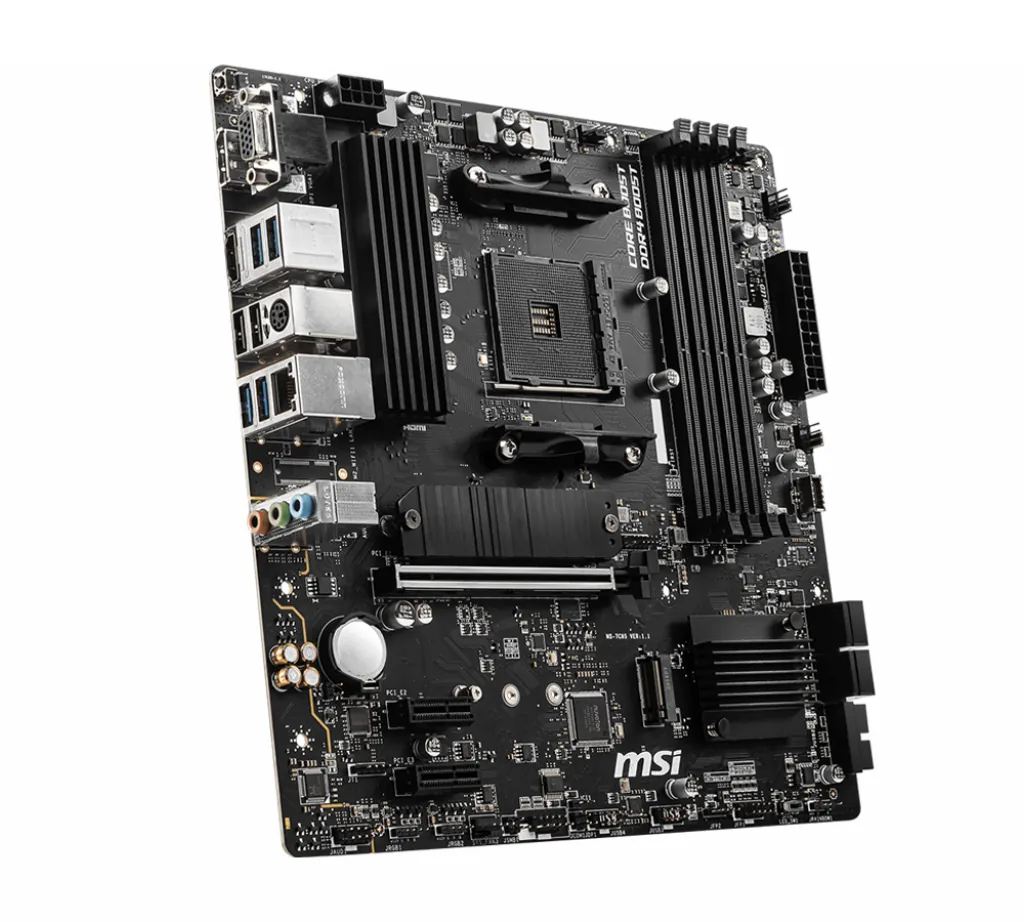

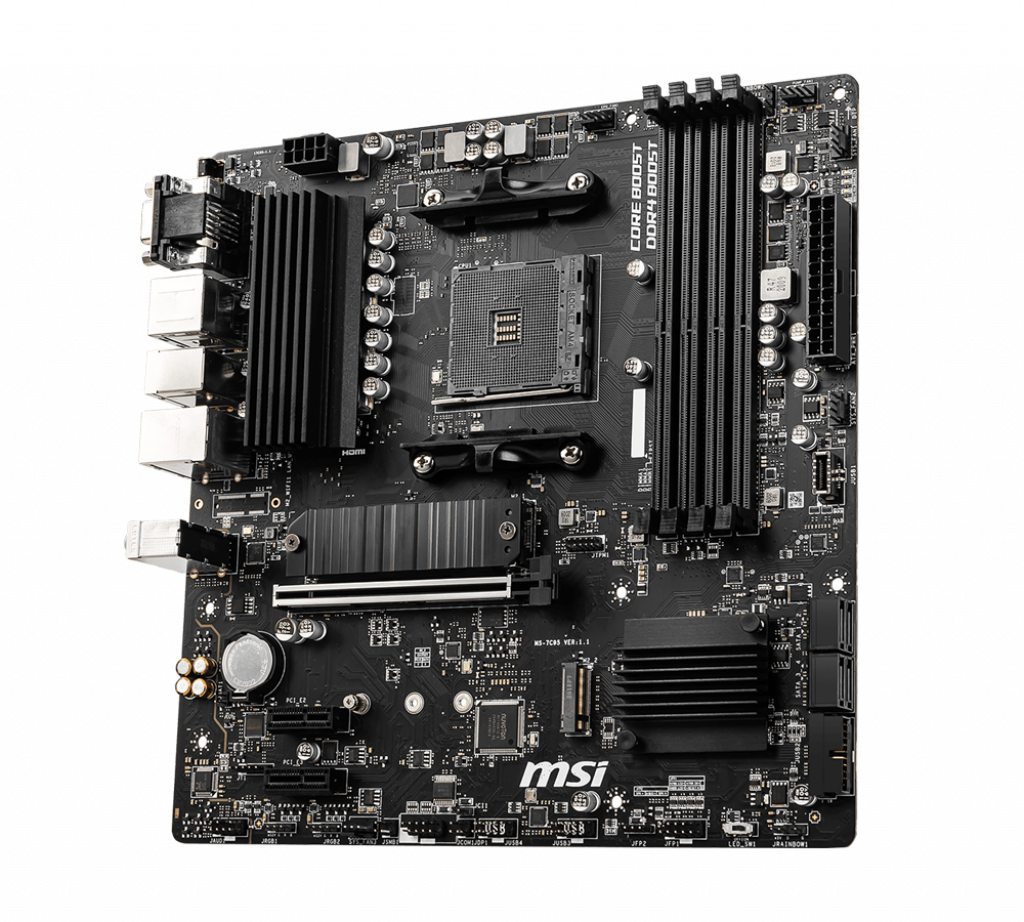

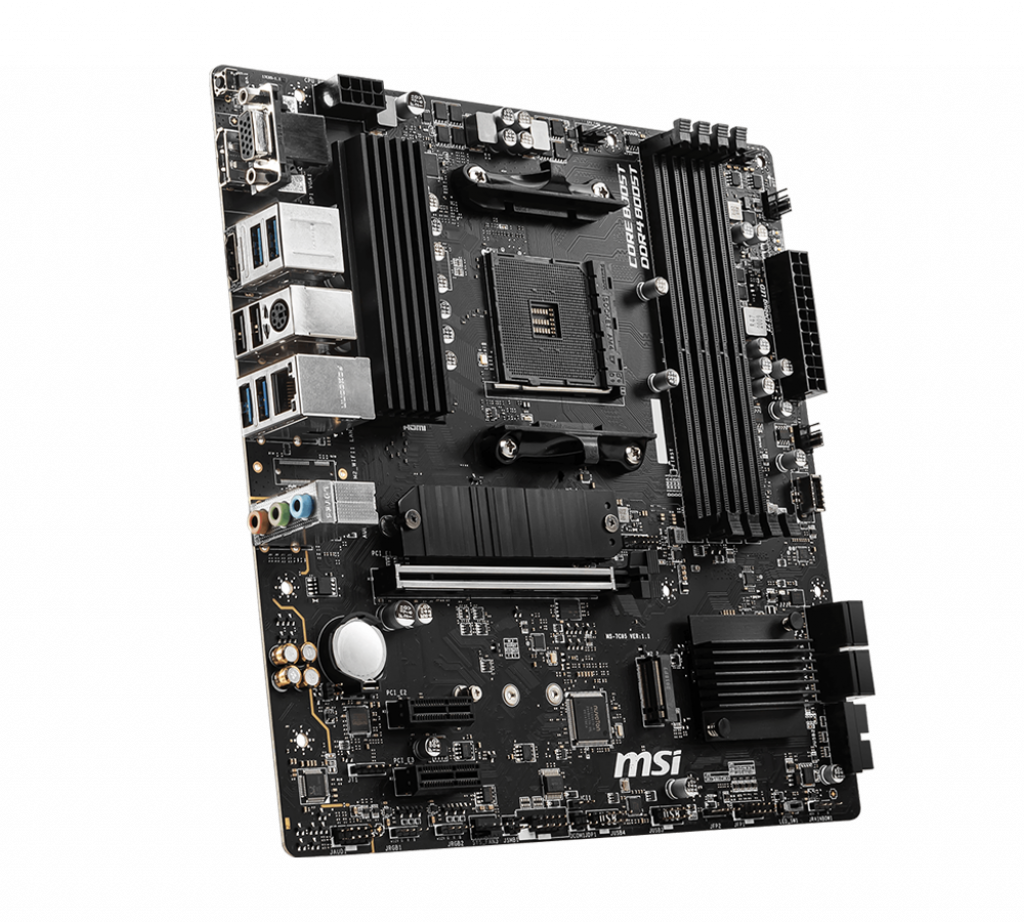

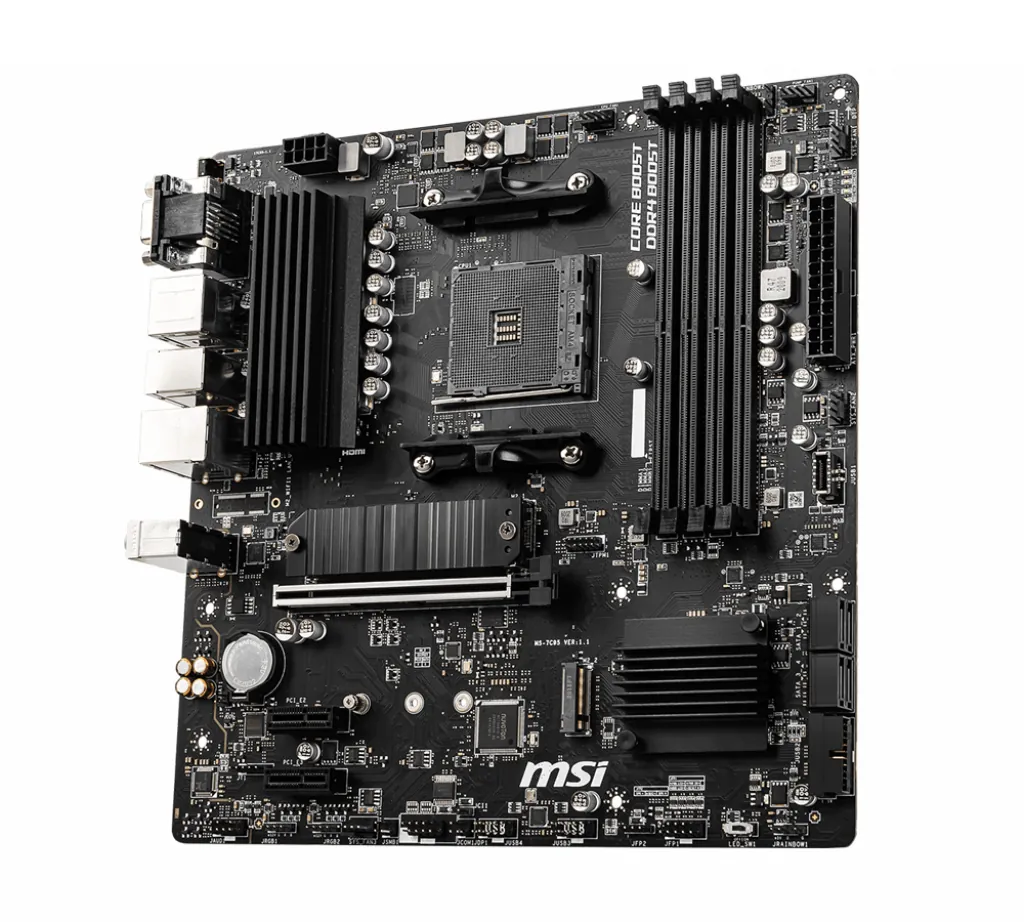

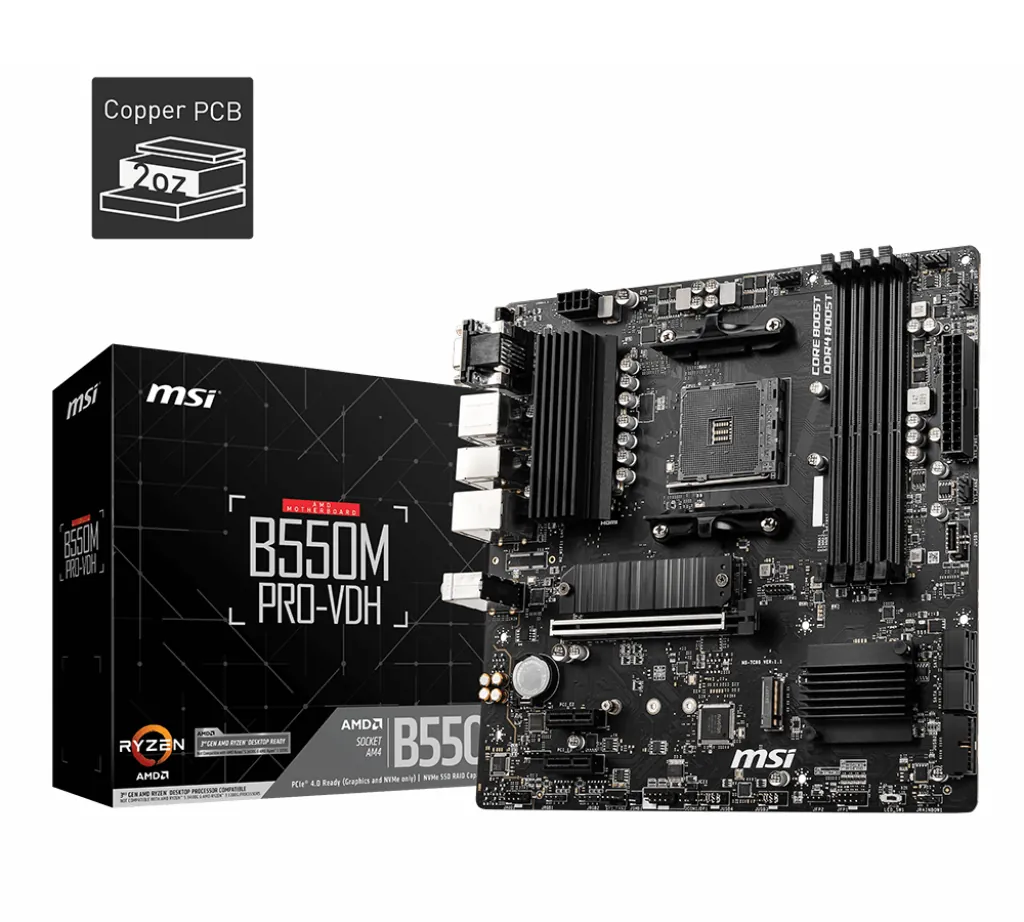

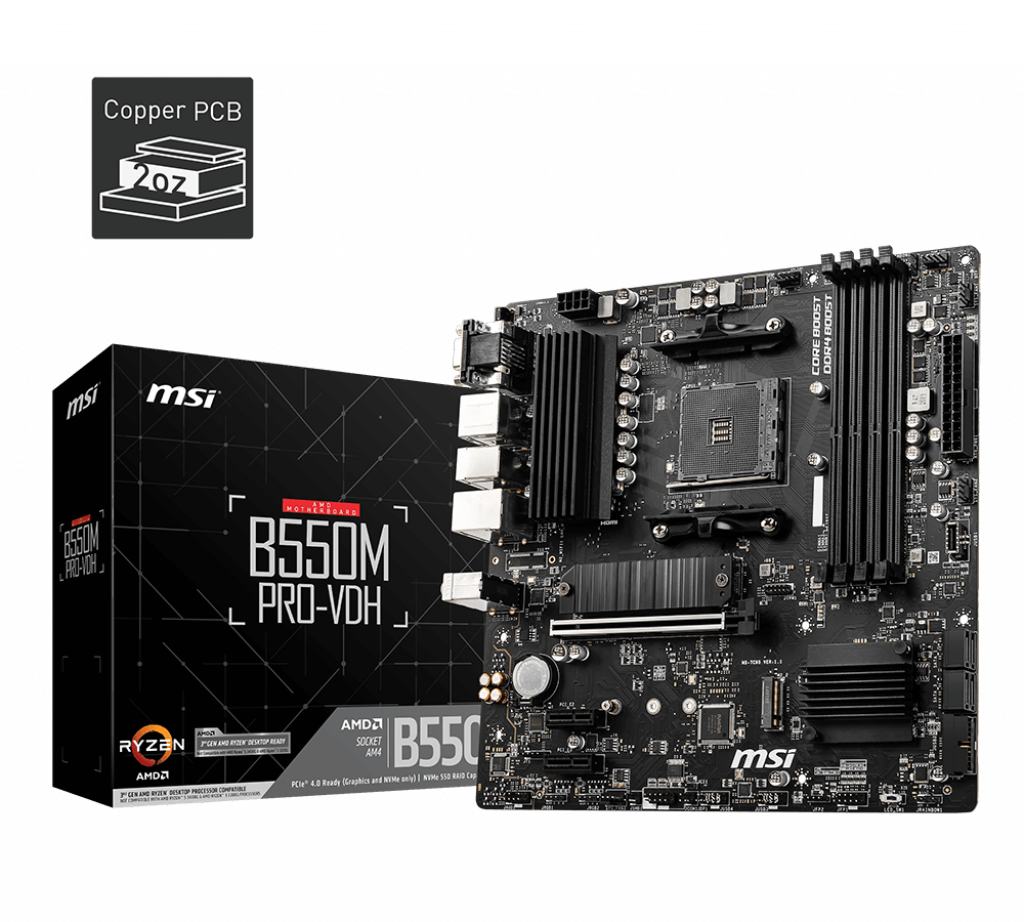

Msi B550m Pro-Vdh Am4 Ddr4 Ses Glan Dp/Hdmi/Vga Sata3 Usb3.2 Matx

MARKA

MSI

GARANTİ SÜRESİ

36 AY

EAN

4719072758417

İŞLEMCİ

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

YONGA SETİ

AMD B550 Chipset

BELLEK

4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory

DAHİLİ GRAFİK

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Maximum shared memory of 16 GB

GENİŞLEME YUVALARI

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
2x PCIe 3.0 x1 slots

SES DESTEĞİ

7.1-Channel High Definition Audio

LAN

1x Realtek® 8111HN Gigabit LAN controller

USB PORTLARI

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

DEPOLAMA ARAYÜZÜ

4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices

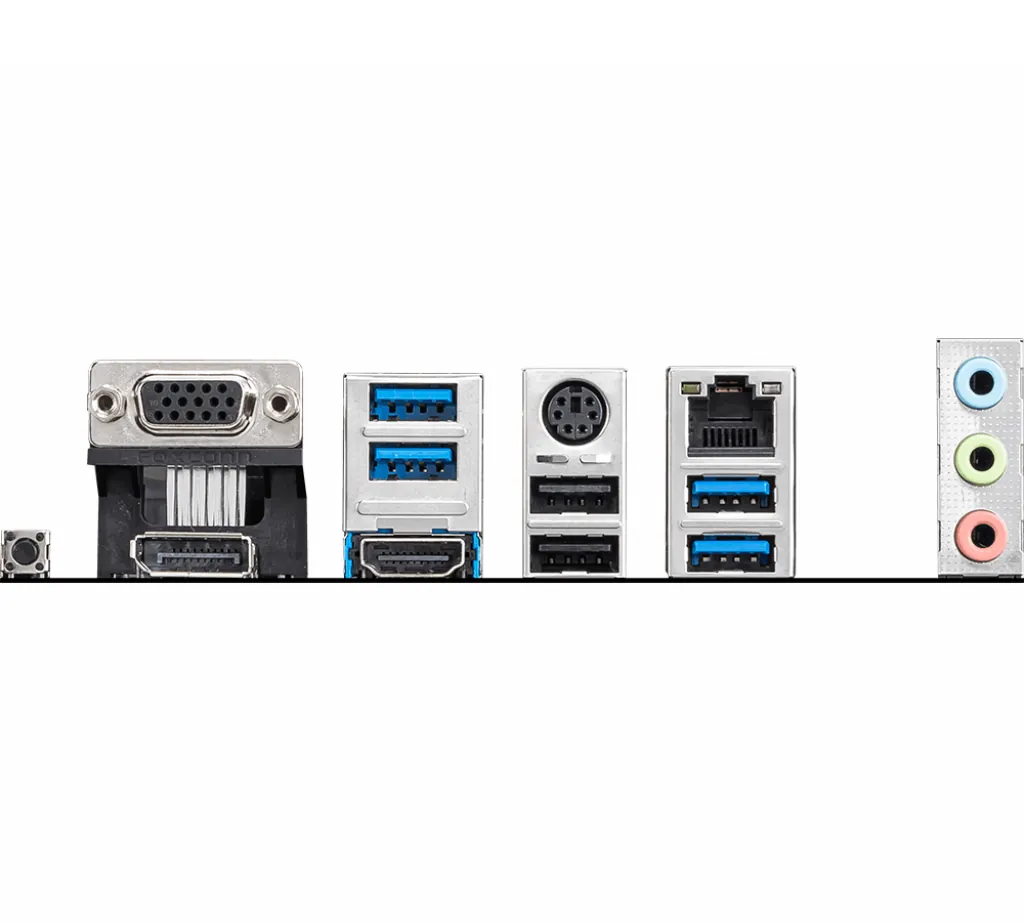

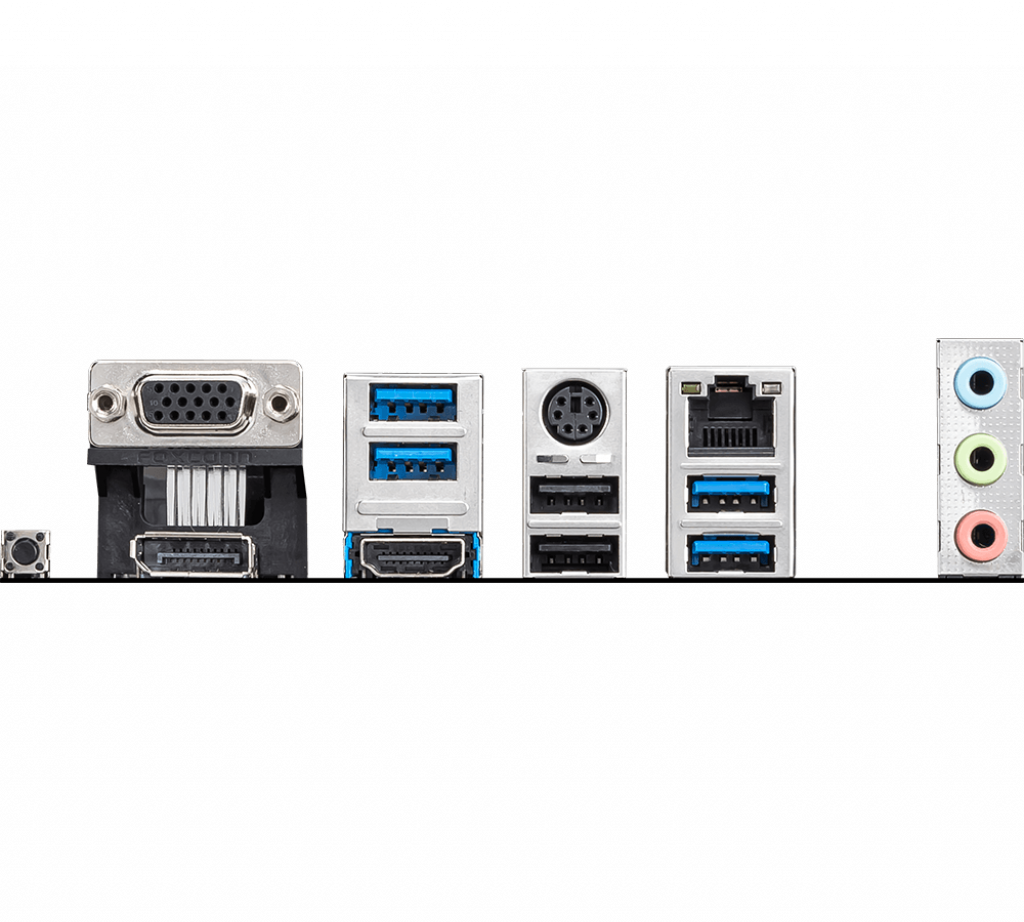

ARKA GİRİŞ/ÇIKIŞ PORTLARI

VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Clear CMOS Button
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
HD Audio Connectors

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

FORM FAKTÖRÜ

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
