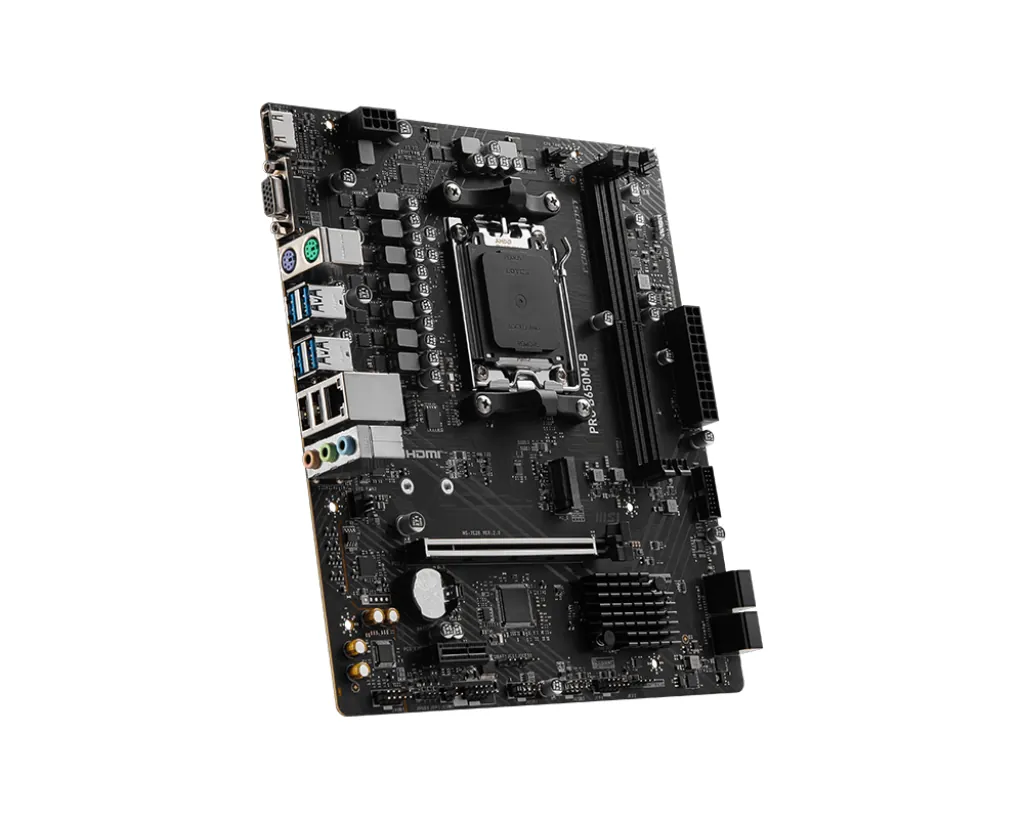

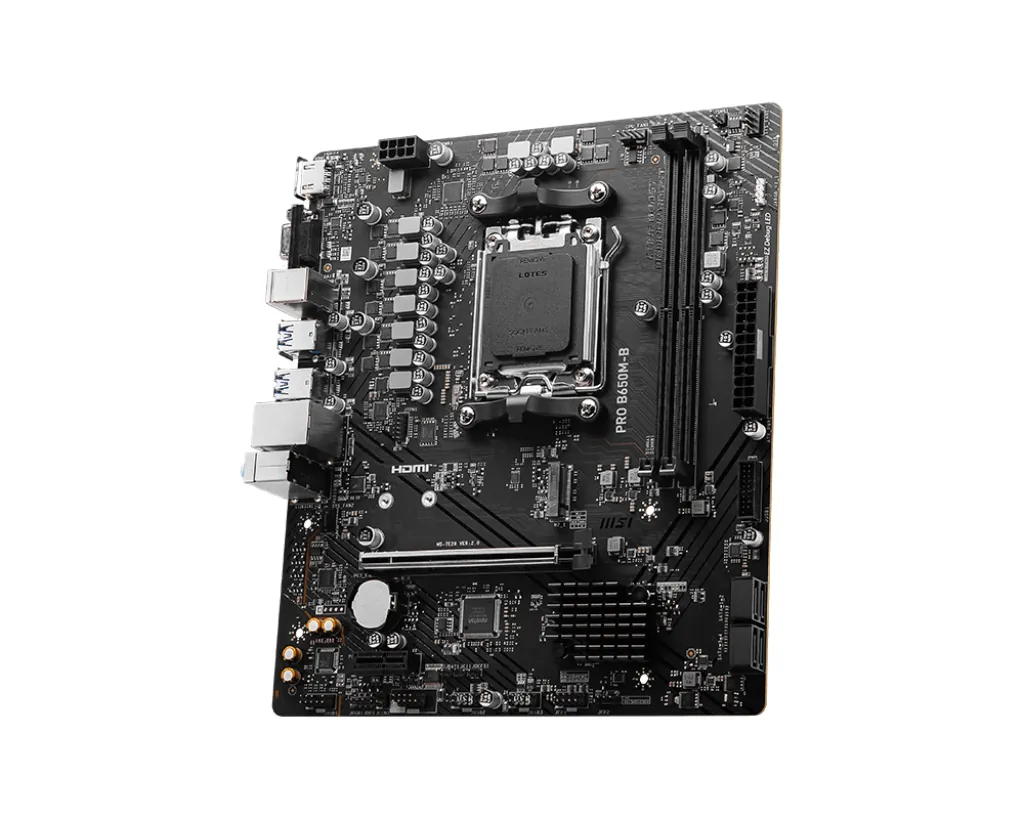

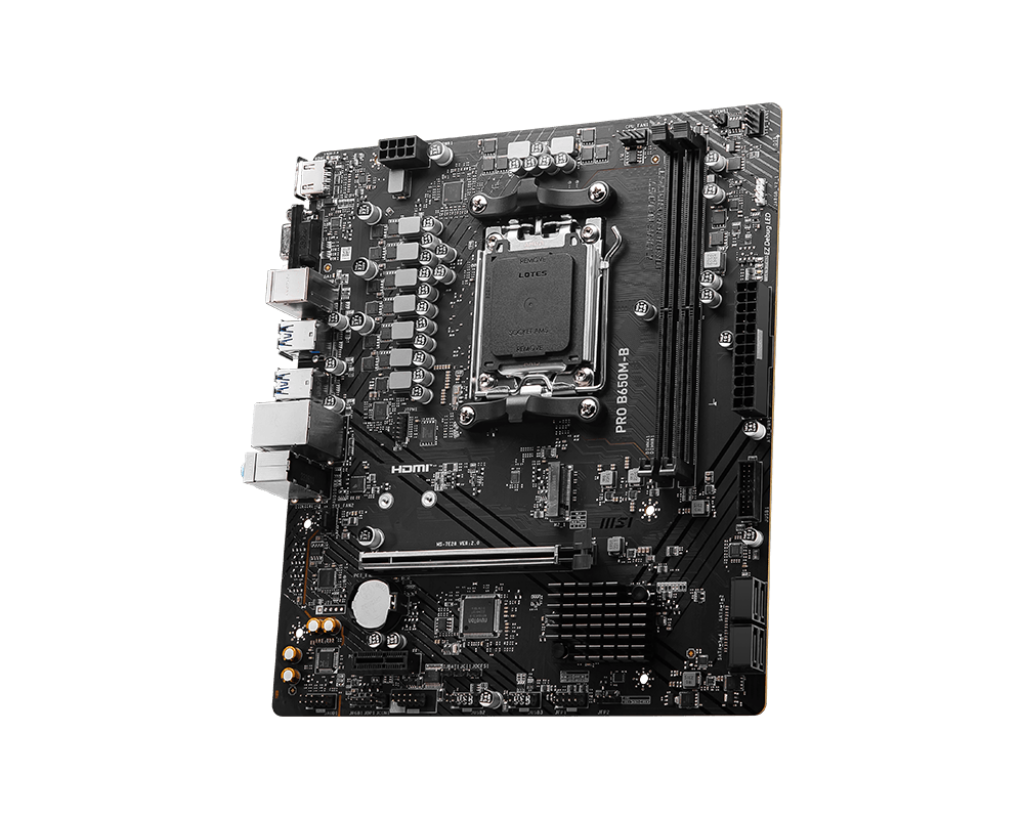

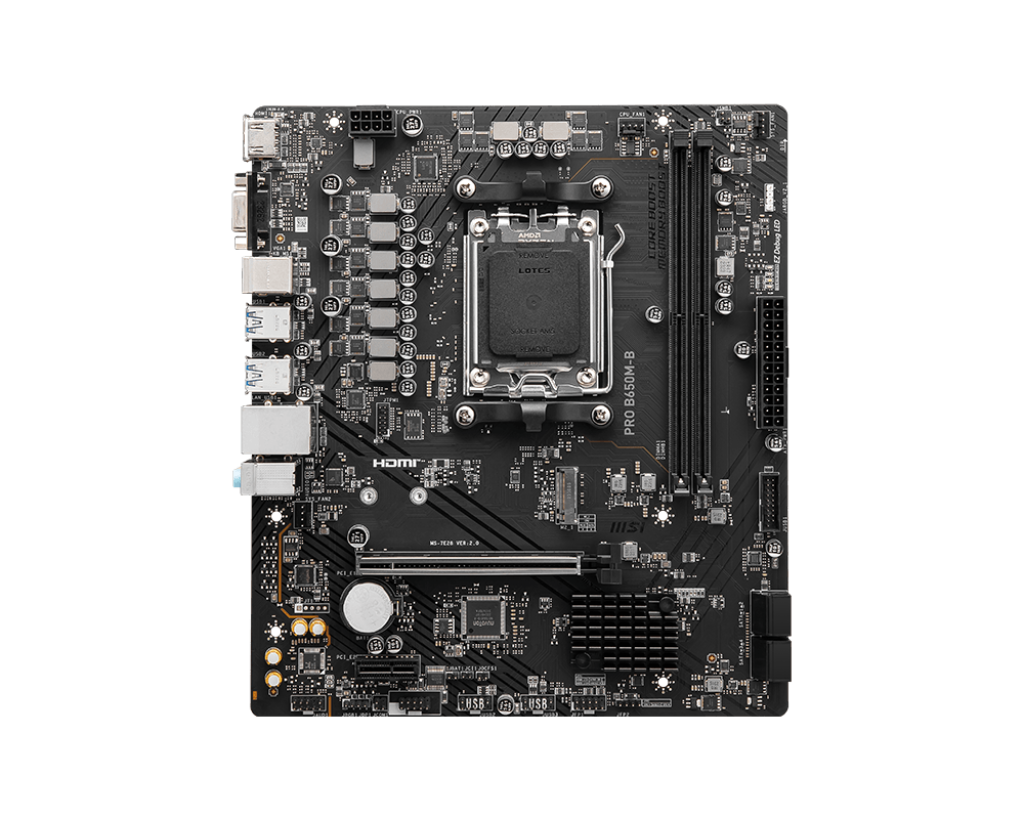

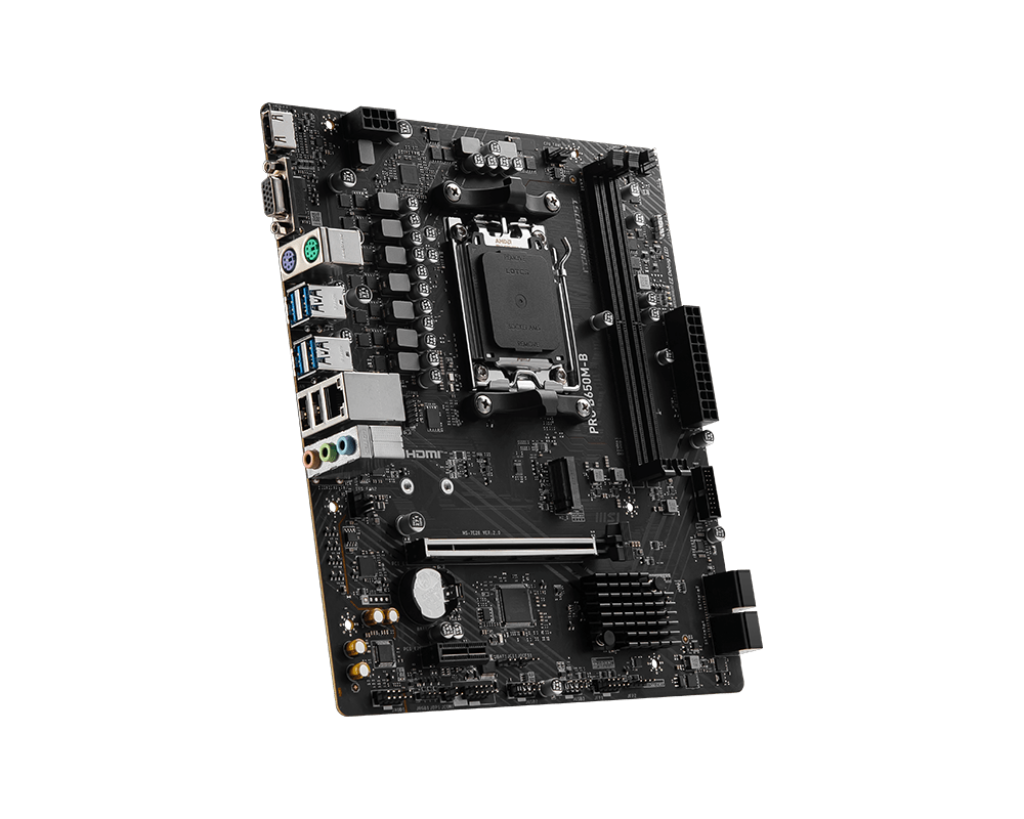

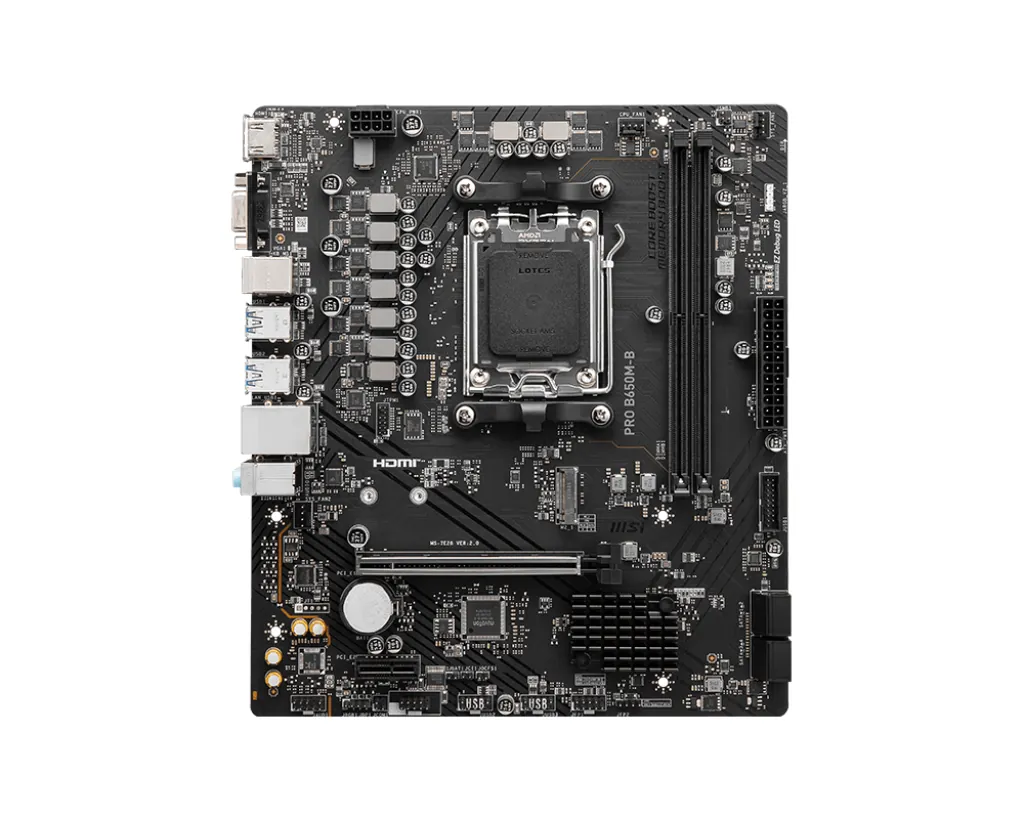

MSI Pro B650M-B AM5 DDR5 Ses GLAN HDMI/VGA SATA3 USB3.2 mATX

MARKA

MSI

GARANTİ SÜRESİ

24 AY

EAN

4711377144797

İŞLEMCİ

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5

YONGA SETİ

AMD B650

BELLEK

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

DAHİLİ GRAFİK

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

GENİŞLEME YUVALARI

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SES DESTEĞİ

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

LAN

Realtek® RTL8125BG 2.5G LAN

USB PORTLARI

4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

DEPOLAMA ARAYÜZÜ

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

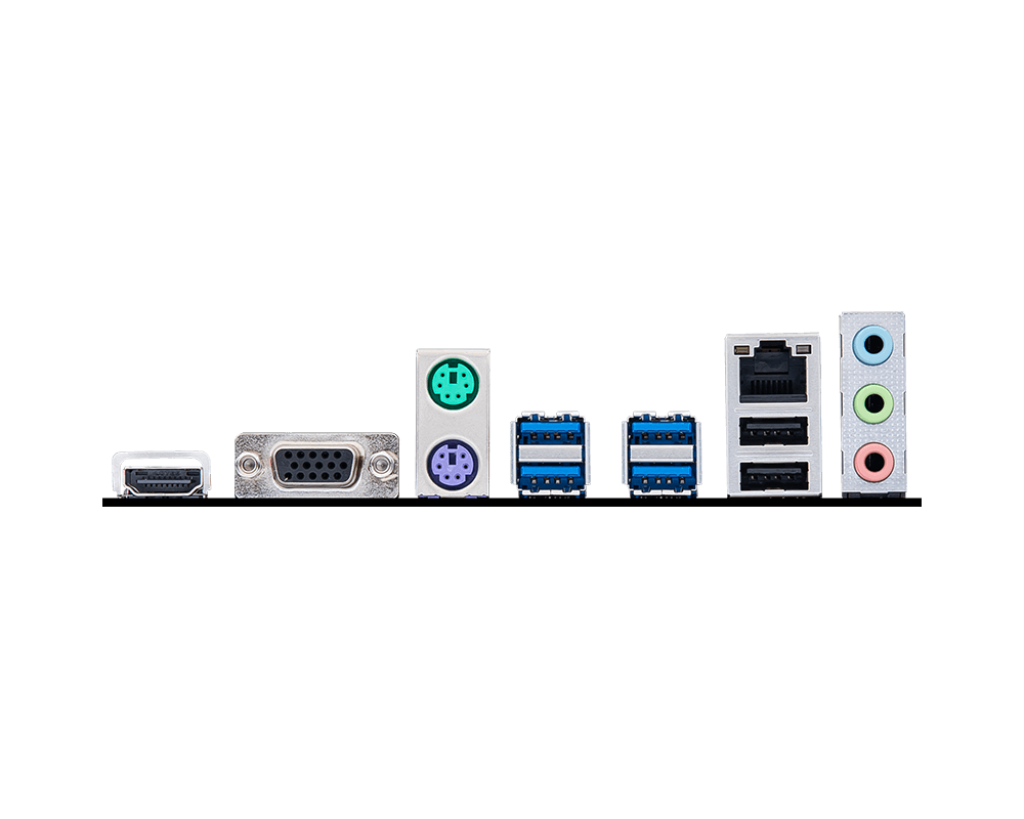

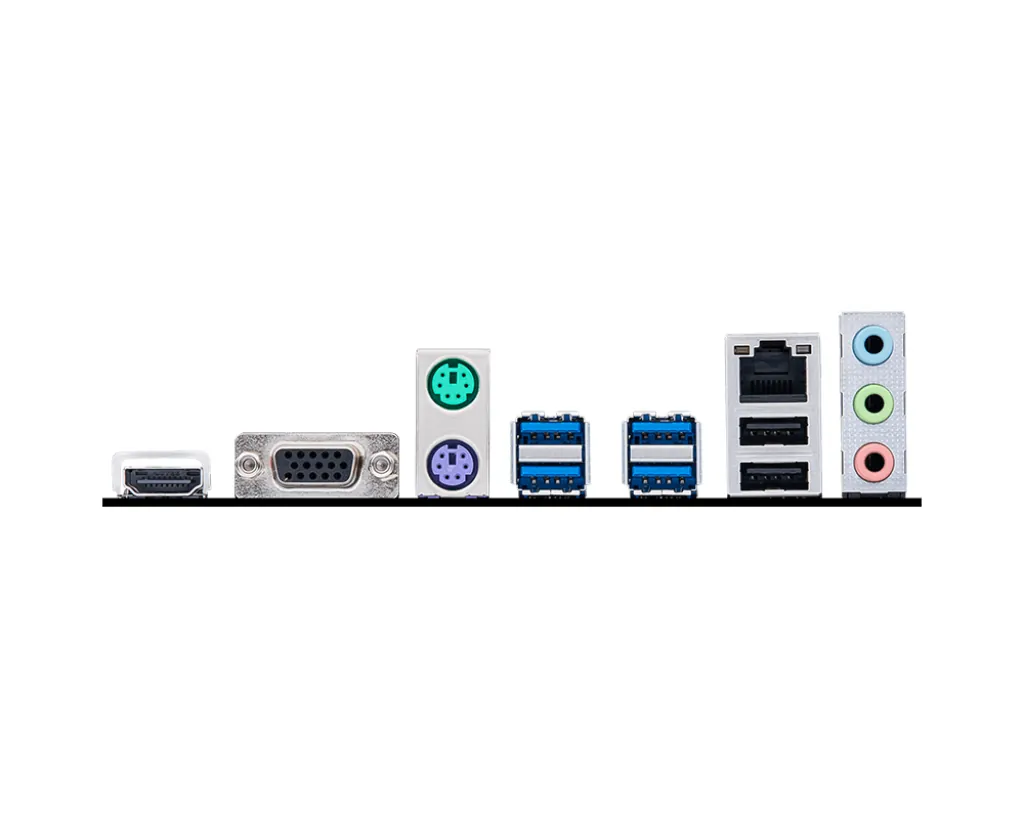

ARKA GİRİŞ/ÇIKIŞ PORTLARI

HDMI™
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows® 11 64-bit, Windows® 10 64-bit

FORM FAKTÖRÜ

mATX 215mmx243.84mm

KARGO VE GARANTİ

Ürünlerimiz her zaman stokta olup, resmi tatil günleri hariç hafta içi saat 16:00’a ve Cumartesi saat 11:00’e kadar verilen siparişler aynı gün, yurt içi kargo ile özenle gönderilmektedir. Ayrıca, tüm ürünlerimiz tamamen orijinal olup, Türkiye distribütör garantisiyle desteklenmektedir.
