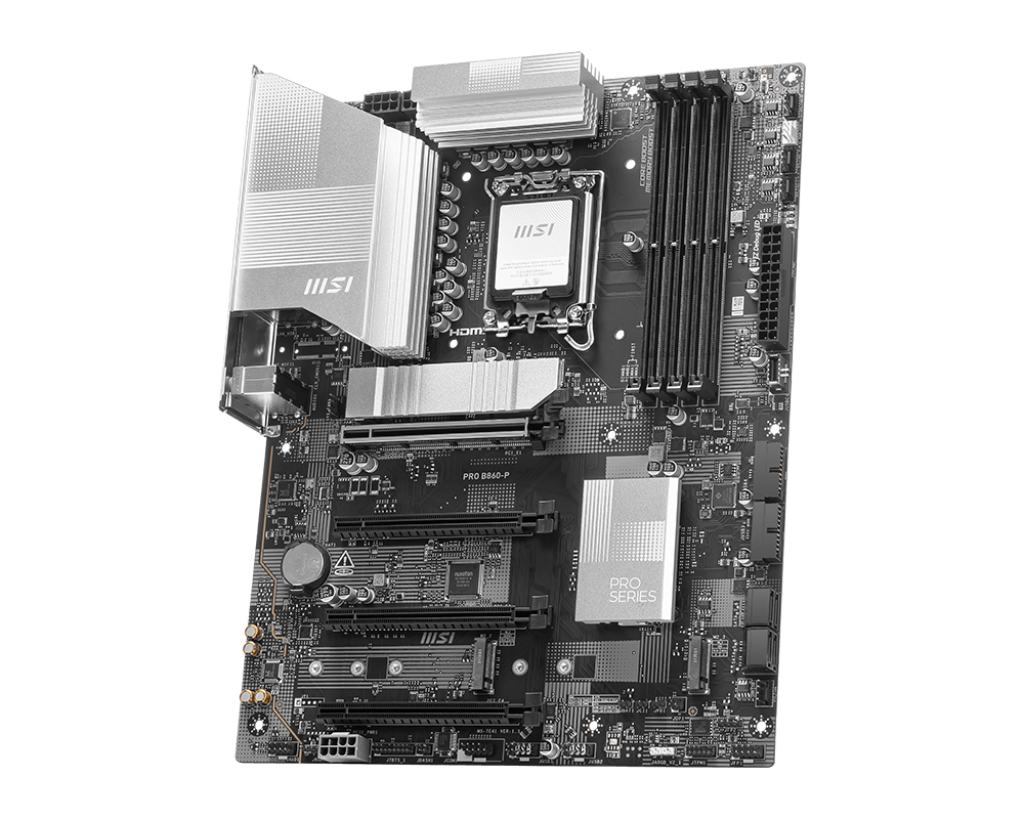

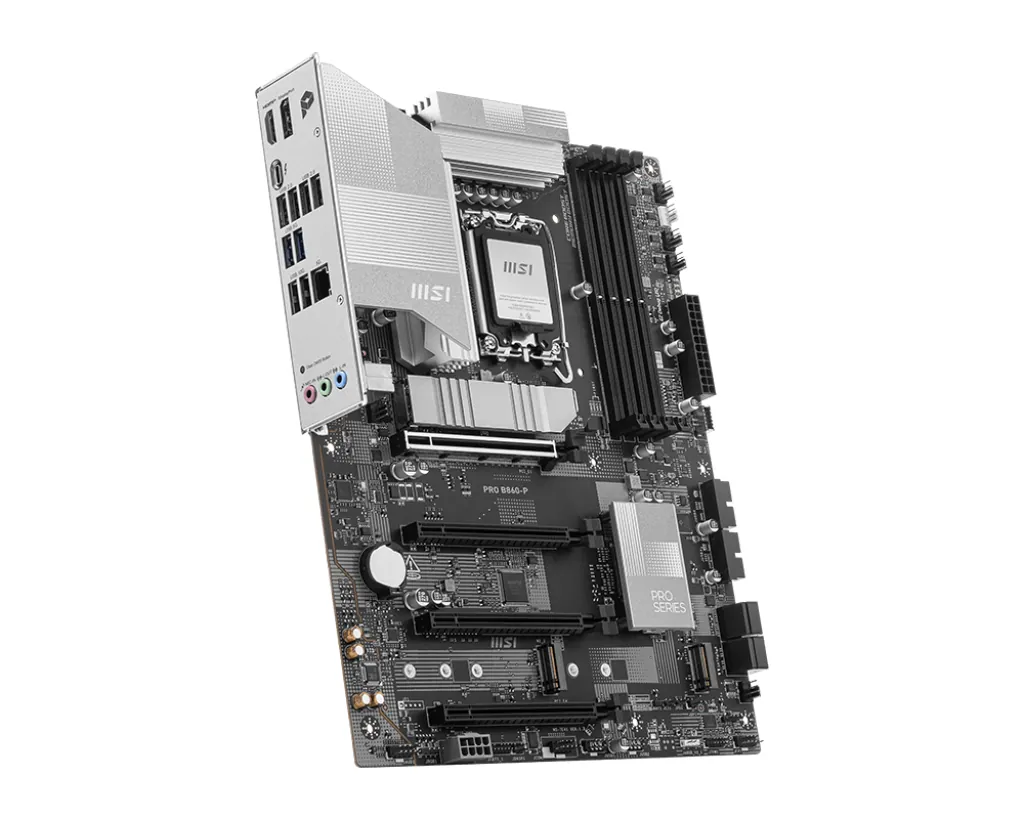

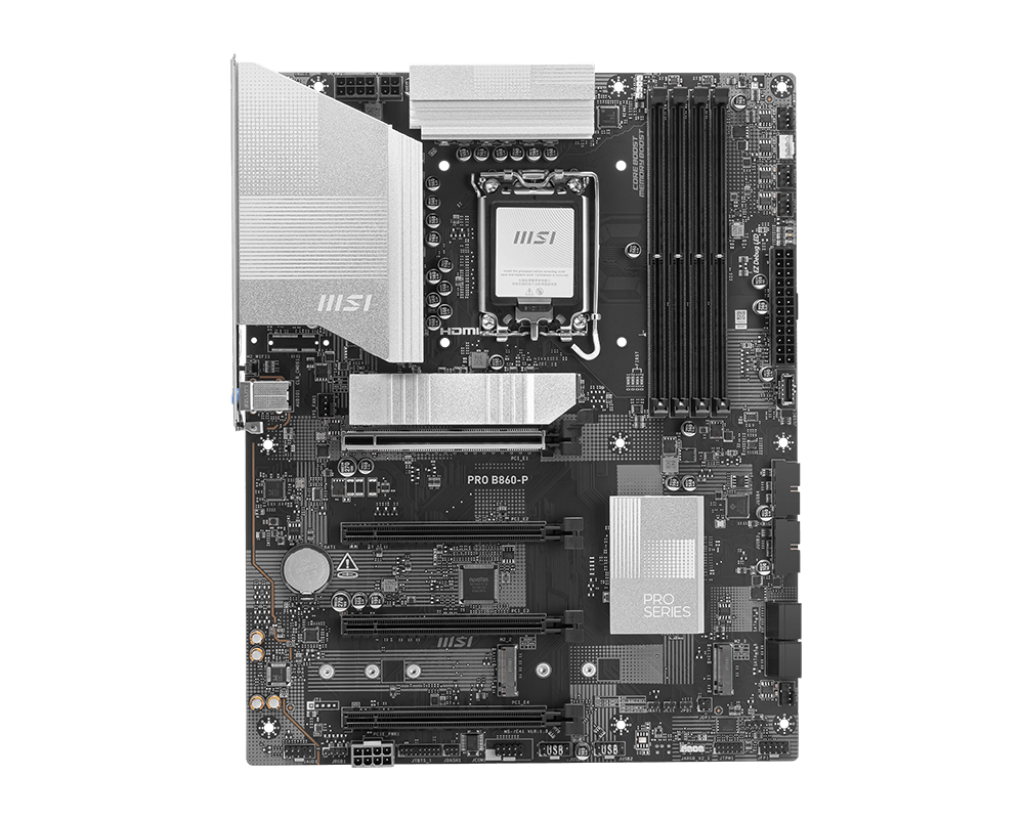

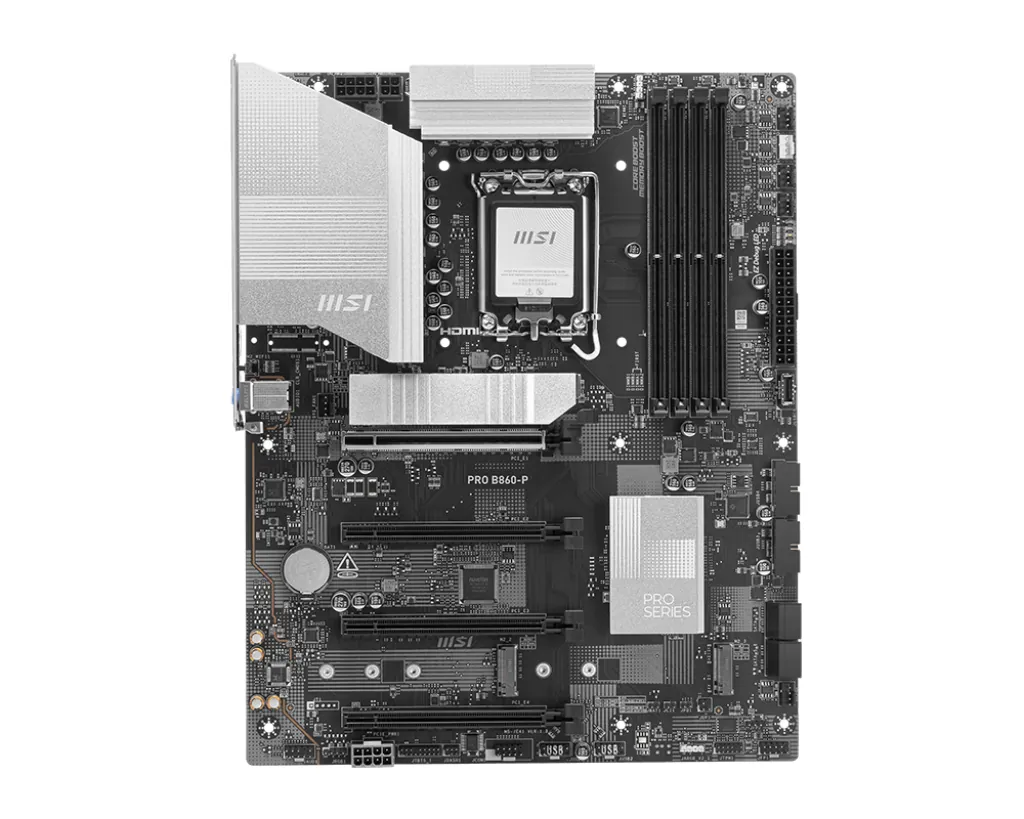

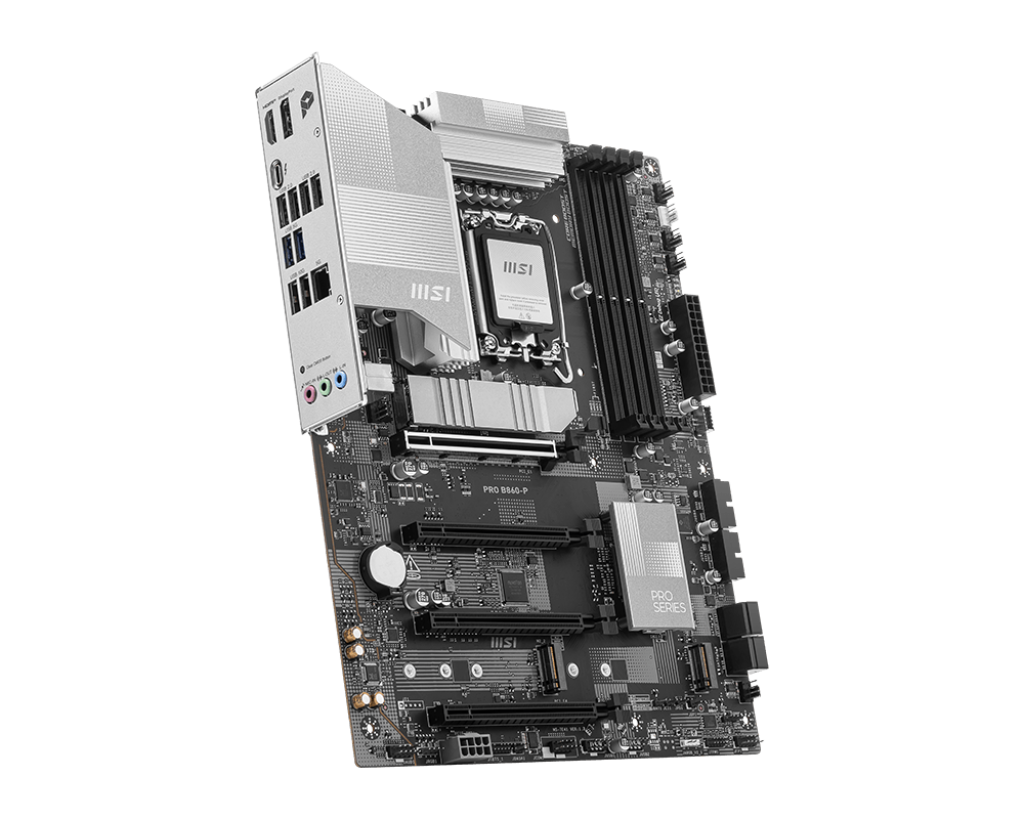

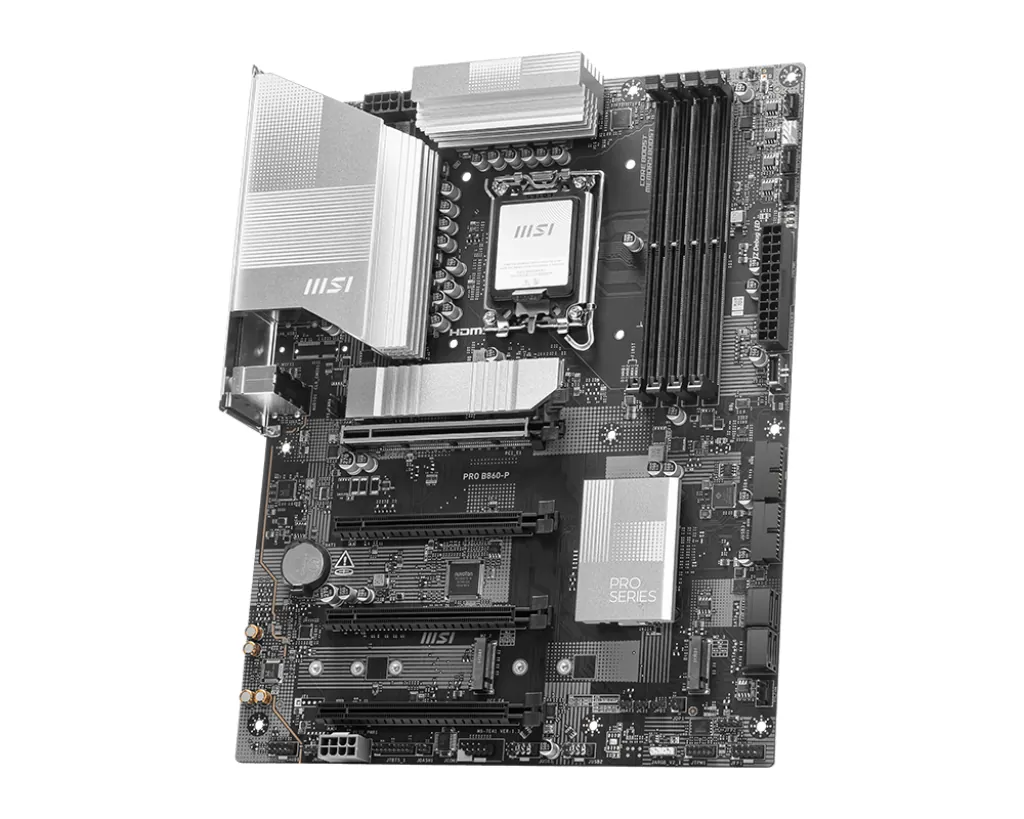

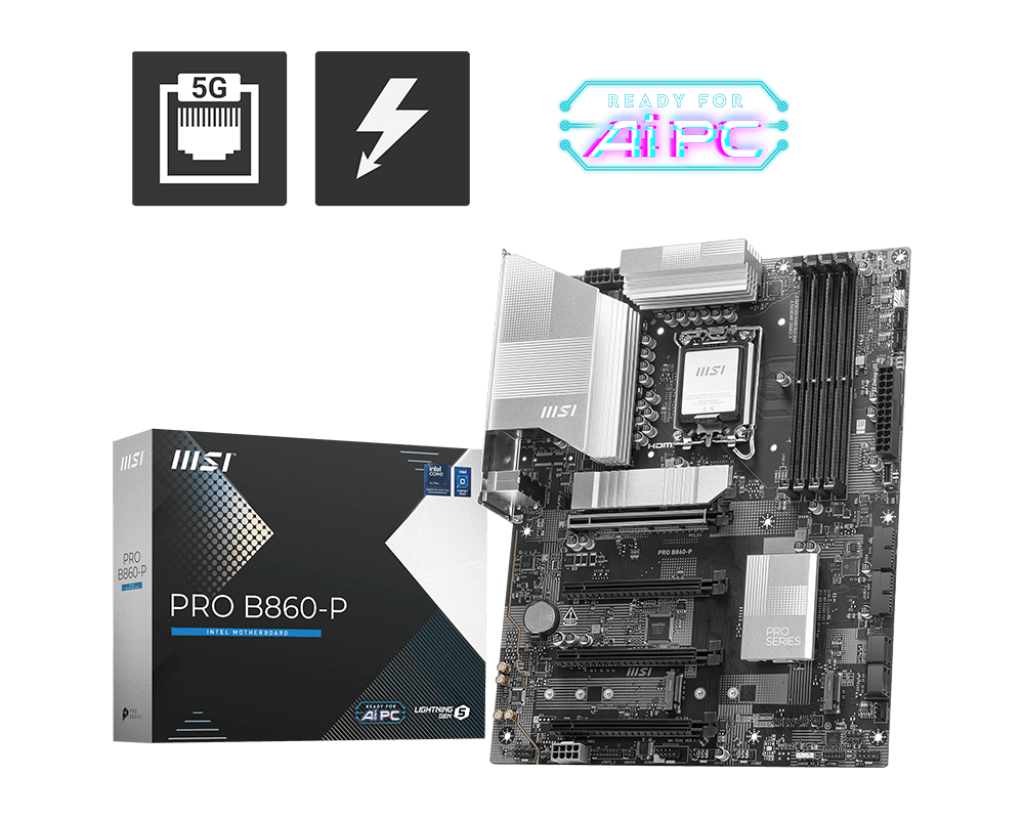

Msi Pro B860-P 1851P Ddr5 Ses Glan Dp/Hdmi/Type-C Sata3 Usb3.2 Atx

MARKA

MSI

GARANTİ SÜRESİ

24 AY

EAN

4711377289757

İŞLEMCİ

Supports Intel® Core™ Ultra Processors (Series 2)

YONGA SETİ

B860

BELLEK

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

DAHİLİ GRAFİK

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

GENİŞLEME YUVALARI

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

SES DESTEĞİ

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

LAN

Realtek® 8126 5Gbps LAN

USB PORTLARI

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)

DEPOLAMA ARAYÜZÜ

3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

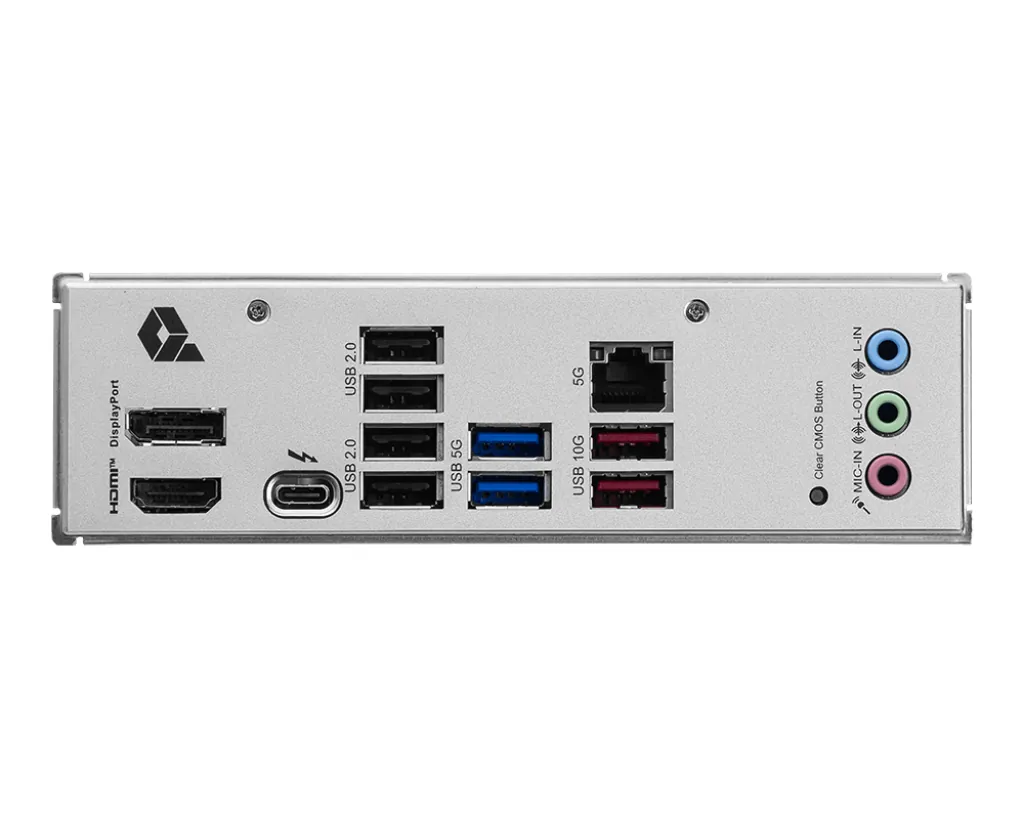

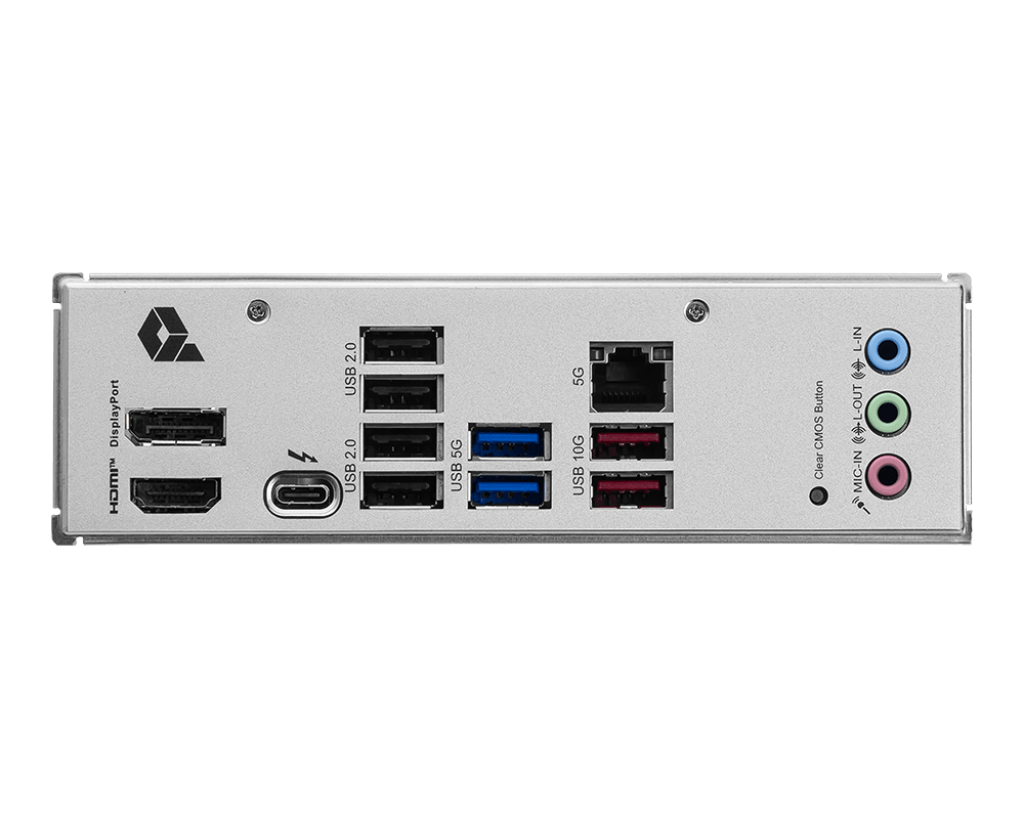

ARKA GİRİŞ/ÇIKIŞ PORTLARI

DisplayPort
USB 2.0
USB 5Gbps Type-A
5G LAN
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-A
Clear CMOS Button

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows® 11 64-bit

FORM FAKTÖRÜ

ATX
243.84mmx304.8mm
