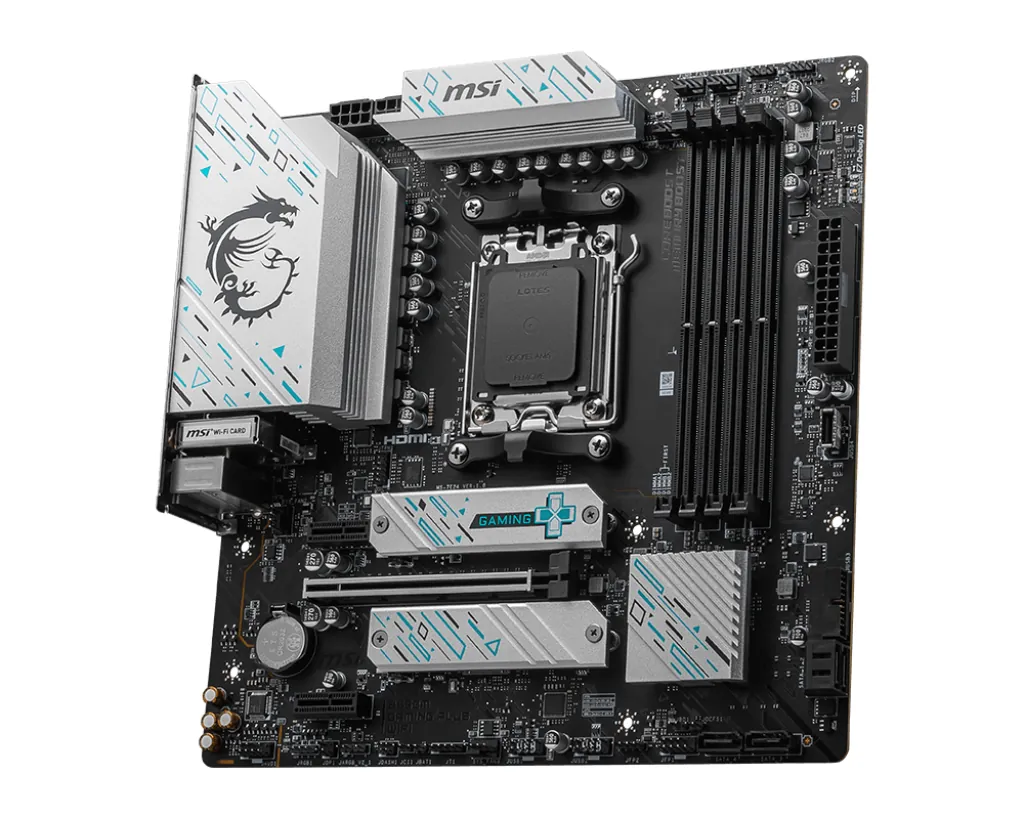

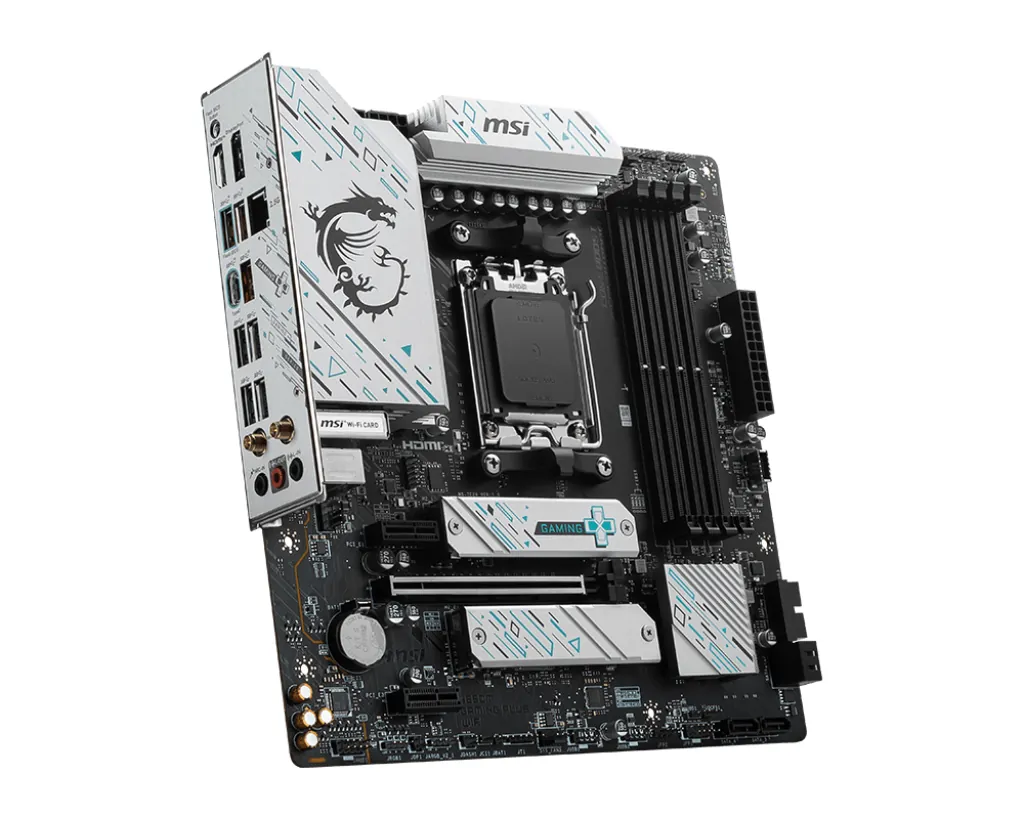

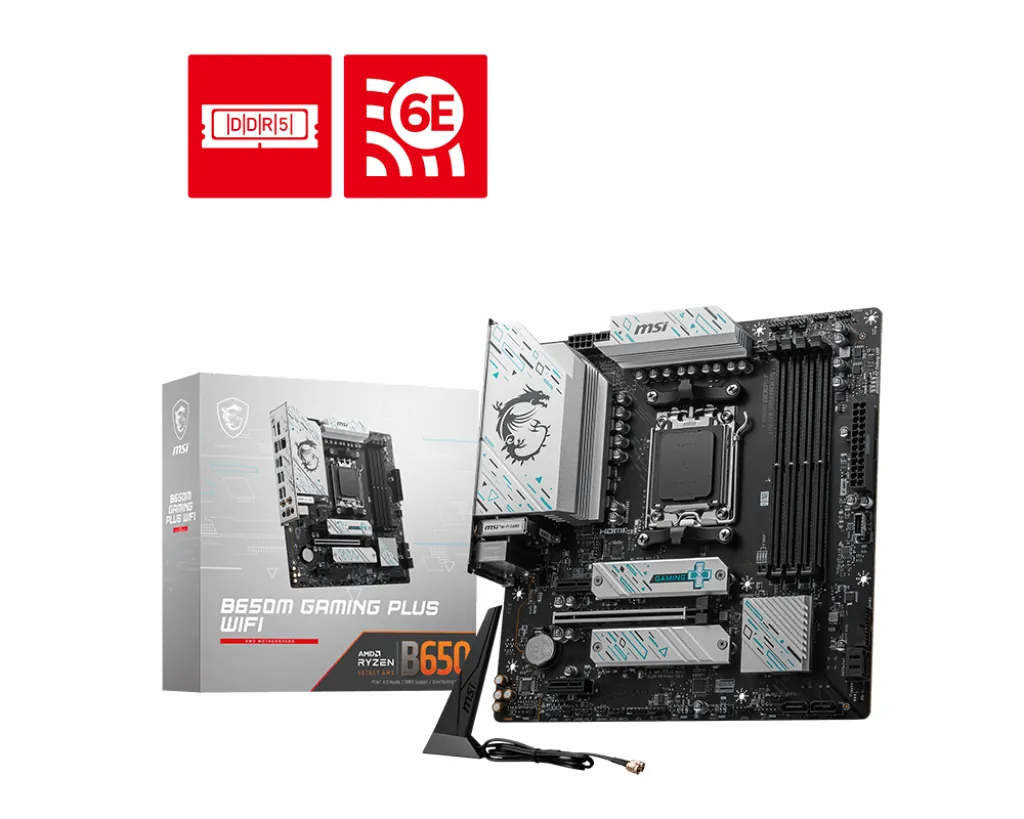

Msi B650M Gaming Plus Wifi Am5 Ddr5 Ses Glan Dp/Hdmi Sata3 Usb3.2 Matx

MARKA

MSI

GARANTİ SÜRESİ

24 AY

EAN

4711377180955

İŞLEMCİ

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

YONGA SETİ

AMD B650

BELLEK

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

DAHİLİ GRAFİK

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

GENİŞLEME YUVALARI

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

SES DESTEĞİ

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

LAN

Realtek® RTL8125BG 2.5Gbps LAN

USB PORTLARI

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)

DEPOLAMA ARAYÜZÜ

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

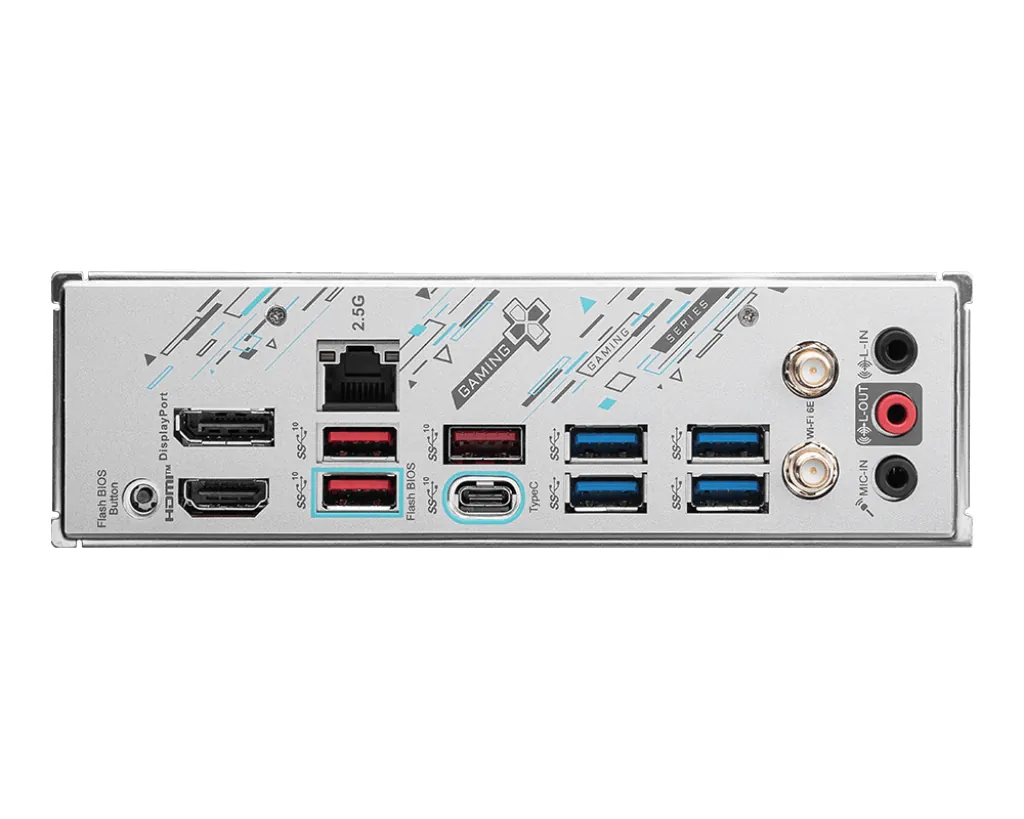

ARKA GİRİŞ/ÇIKIŞ PORTLARI

DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Audio connectors

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows® 11 64-bit, Windows® 10 64-bit

FORM FAKTÖRÜ

mATX
243.84mmx243.84mm
