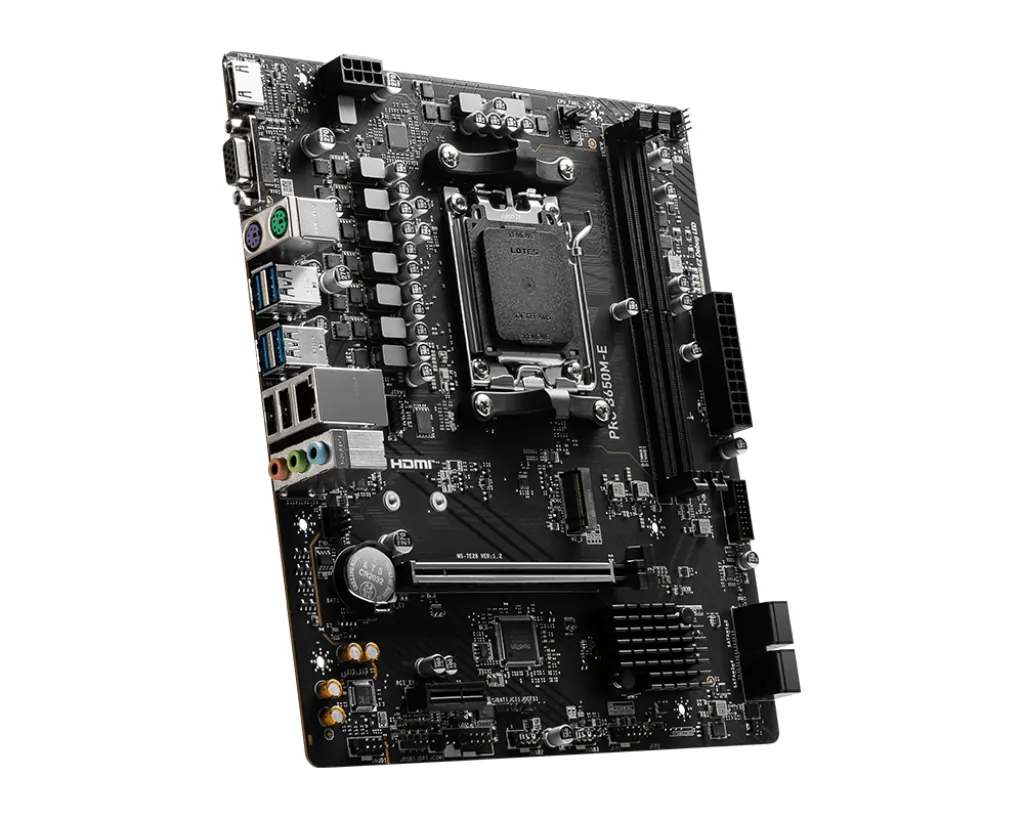

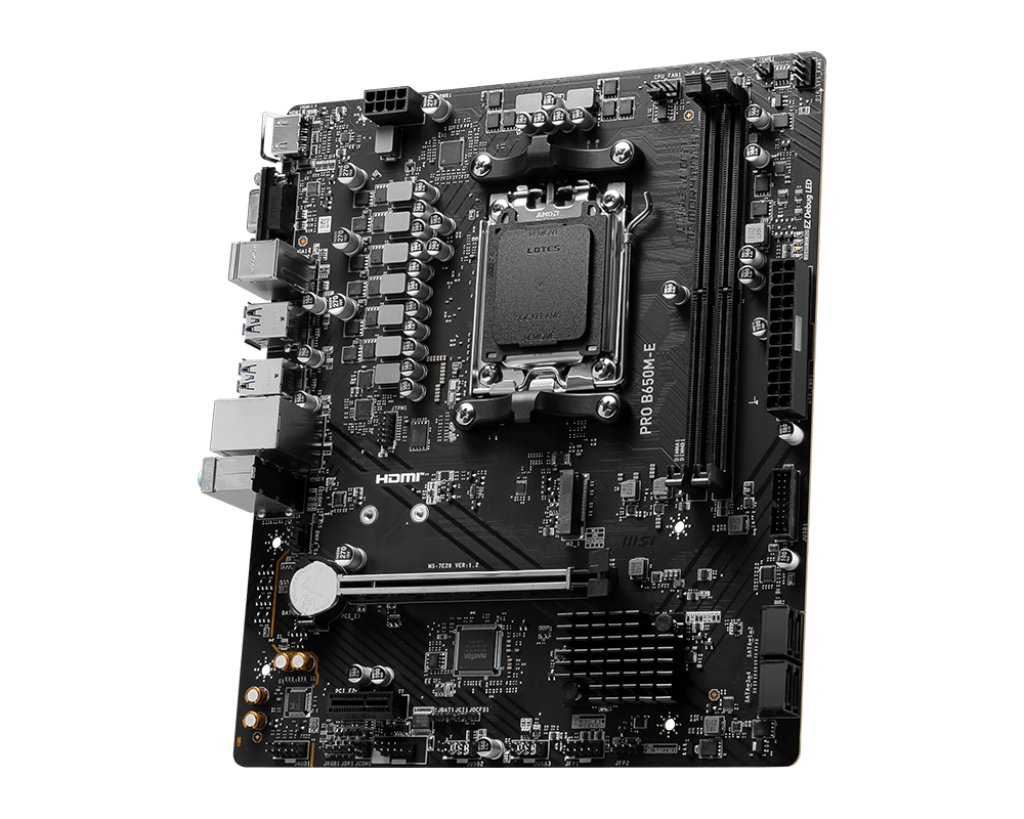

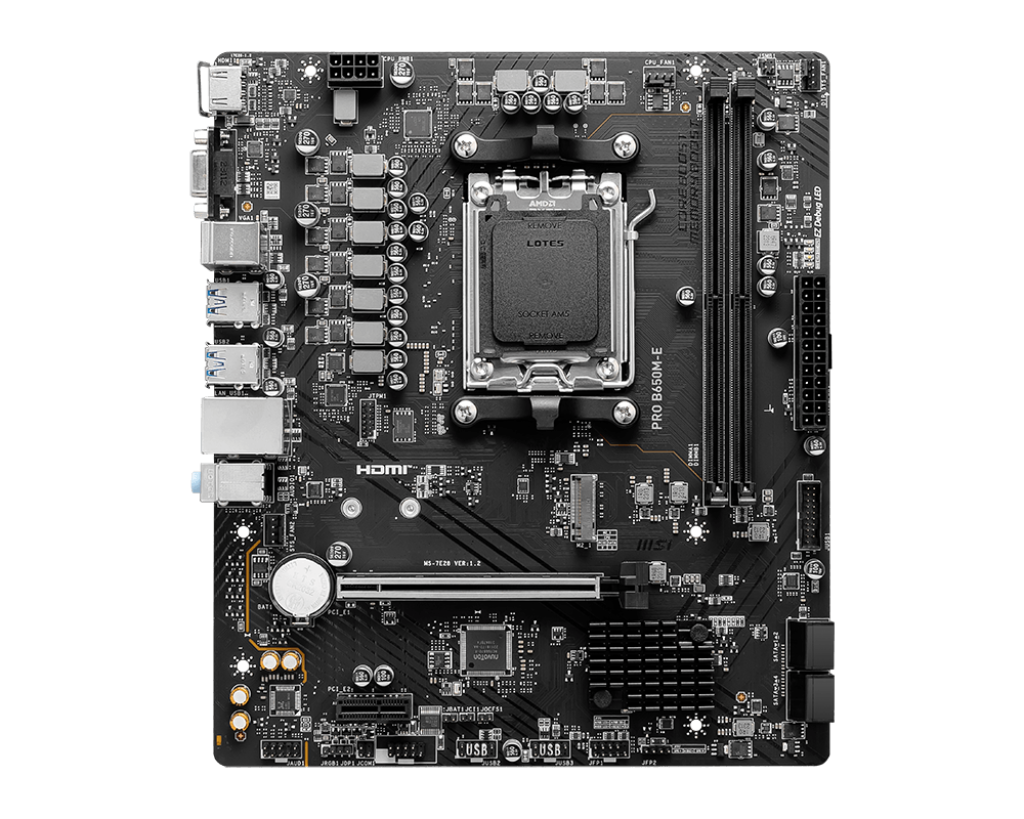

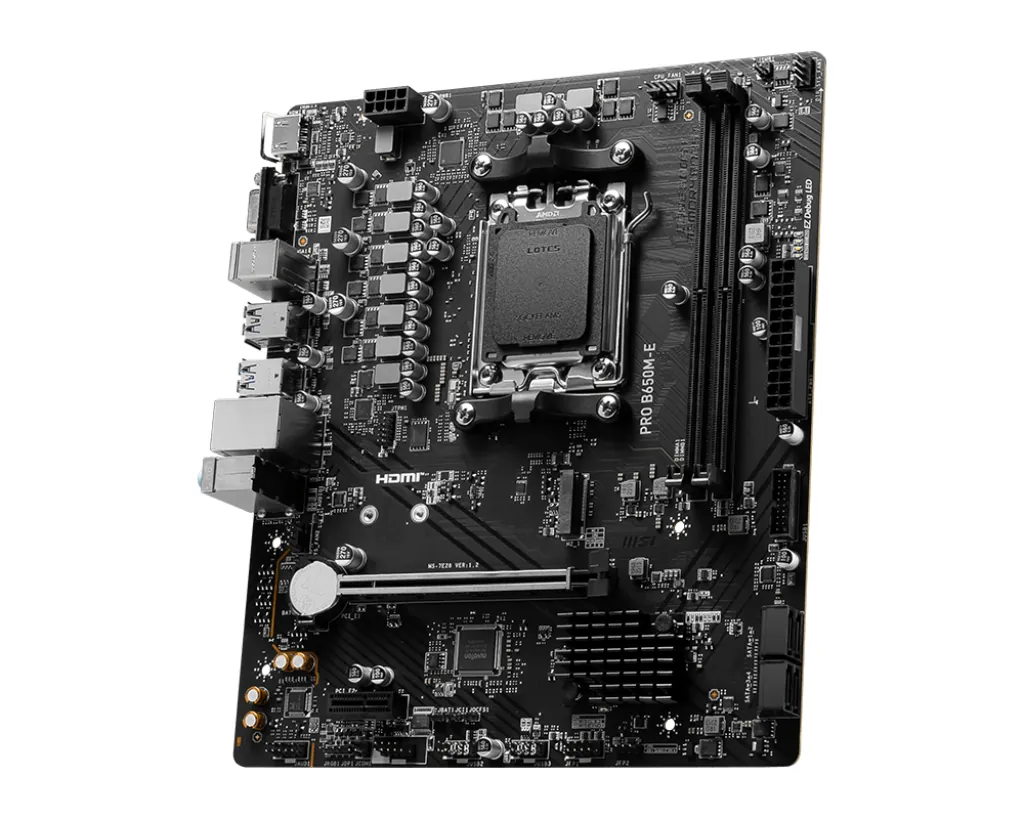

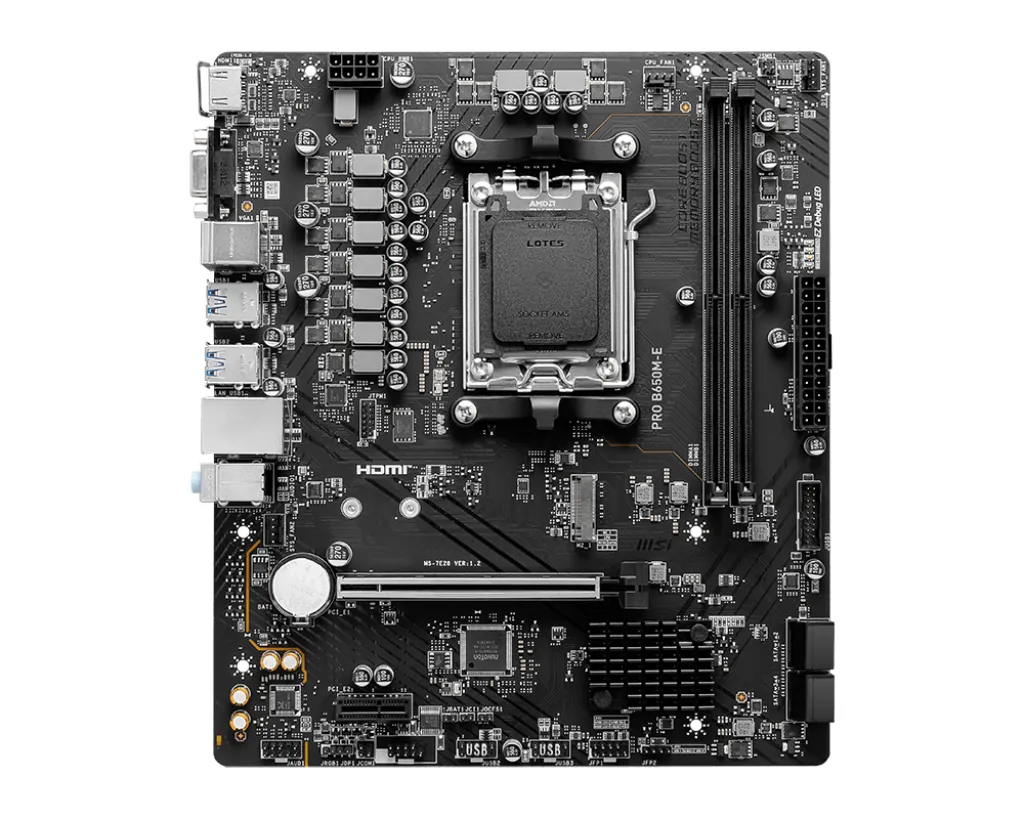

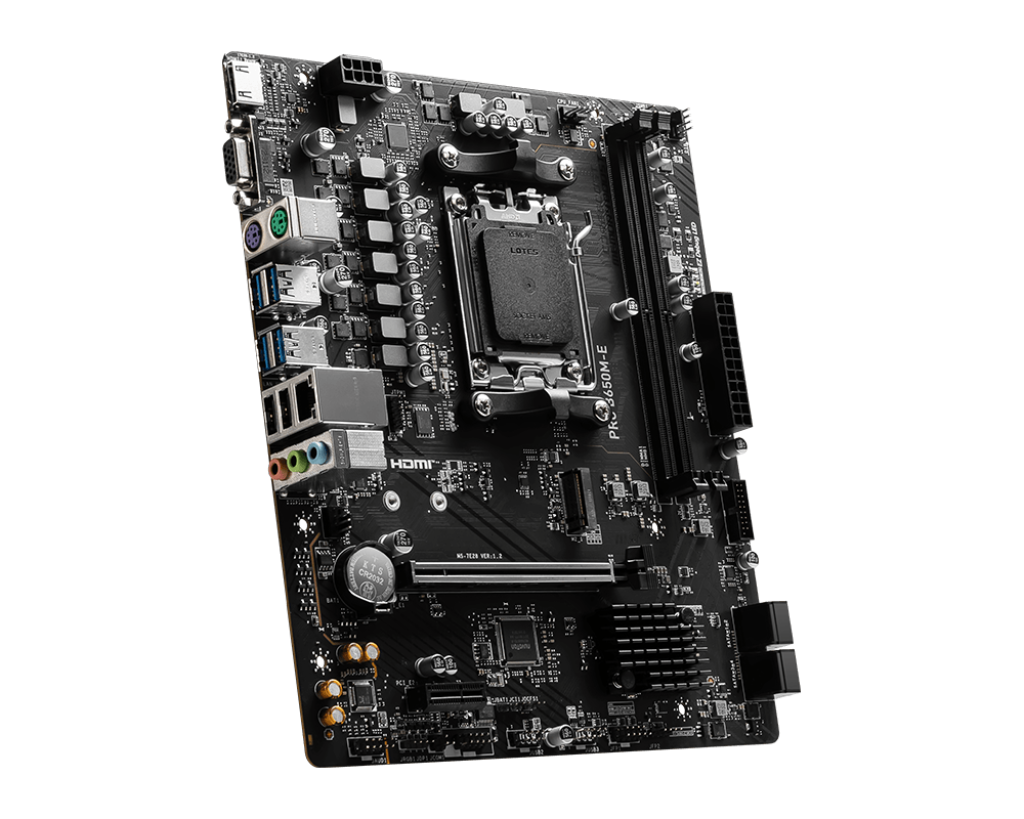

Msi Pro B650M-E Am5 Ddr5 Ses Glan Hdmi/Vga Sata3 Usb3.2 Matx

MARKA

MSI

GARANTİ SÜRESİ

24 AY

İŞLEMCİ

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

YONGA SETİ

B650

BELLEK

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

DAHİLİ GRAFİK

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

GENİŞLEME YUVALARI

1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SES DESTEĞİ

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

LAN

Realtek® RTL8111H Gigabit LAN

USB PORTLARI

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

DEPOLAMA ARAYÜZÜ

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

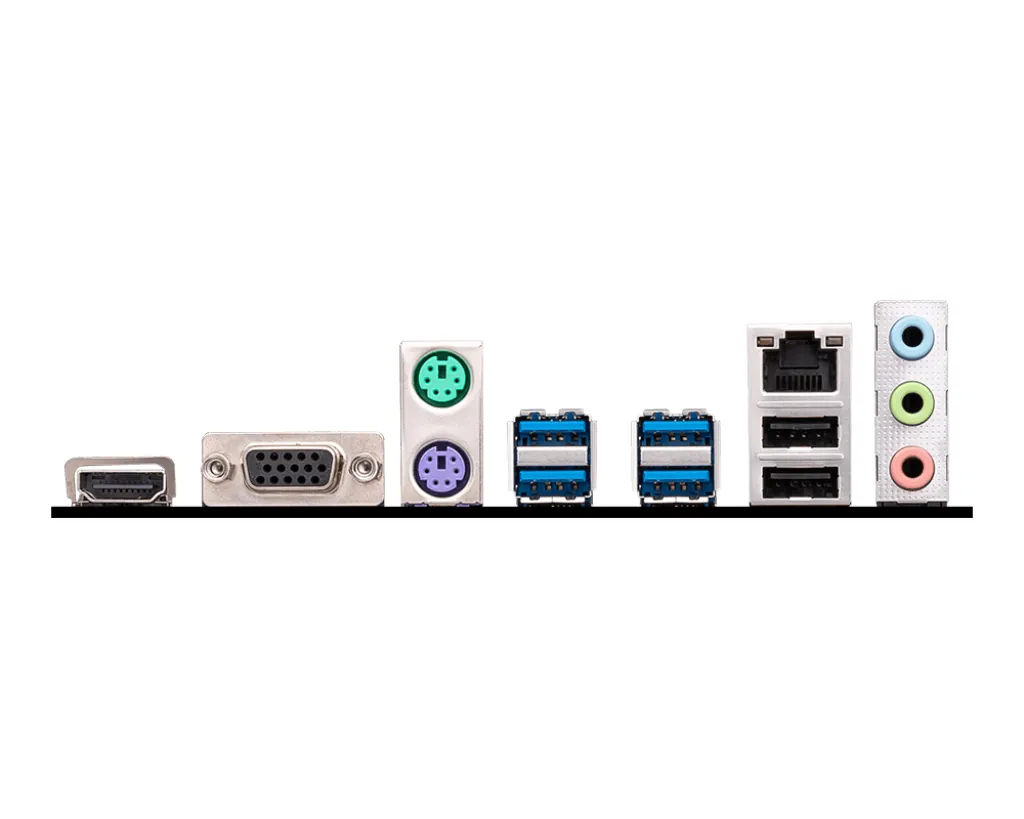

ARKA GİRİŞ/ÇIKIŞ PORTLARI

HDMI™
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows® 11 64-bit,
Windows® 10 64-bit

FORM FAKTÖRÜ

mATX
211mmx243.84mm
