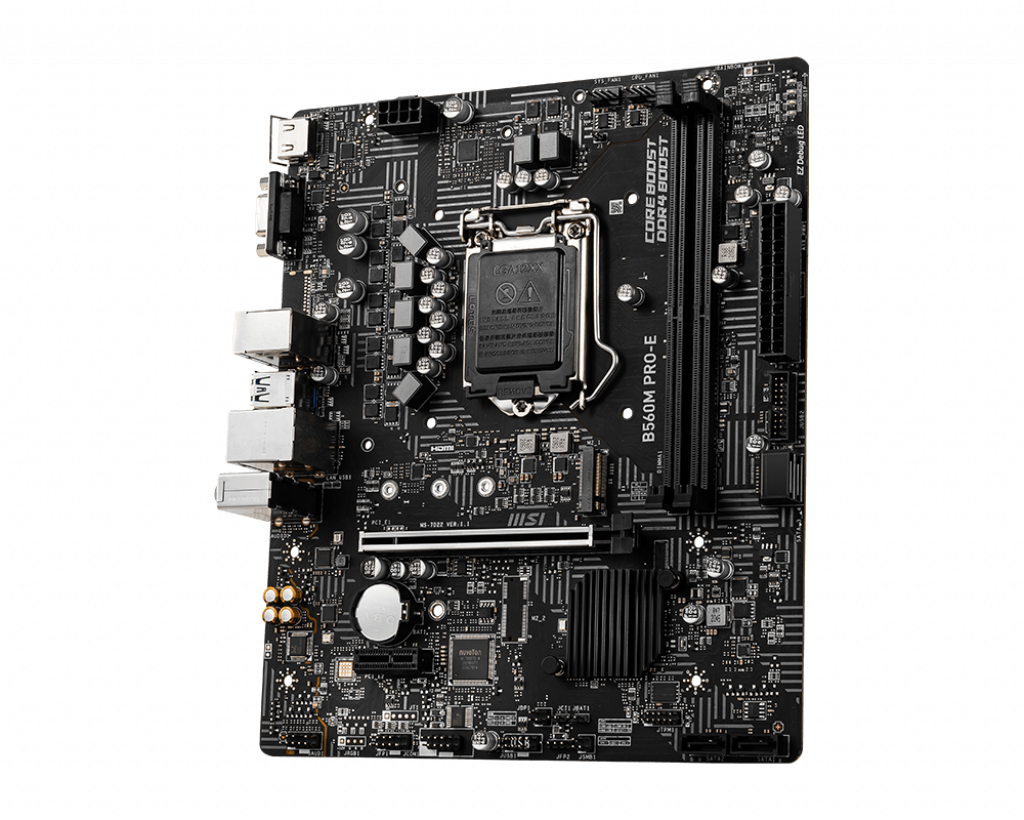

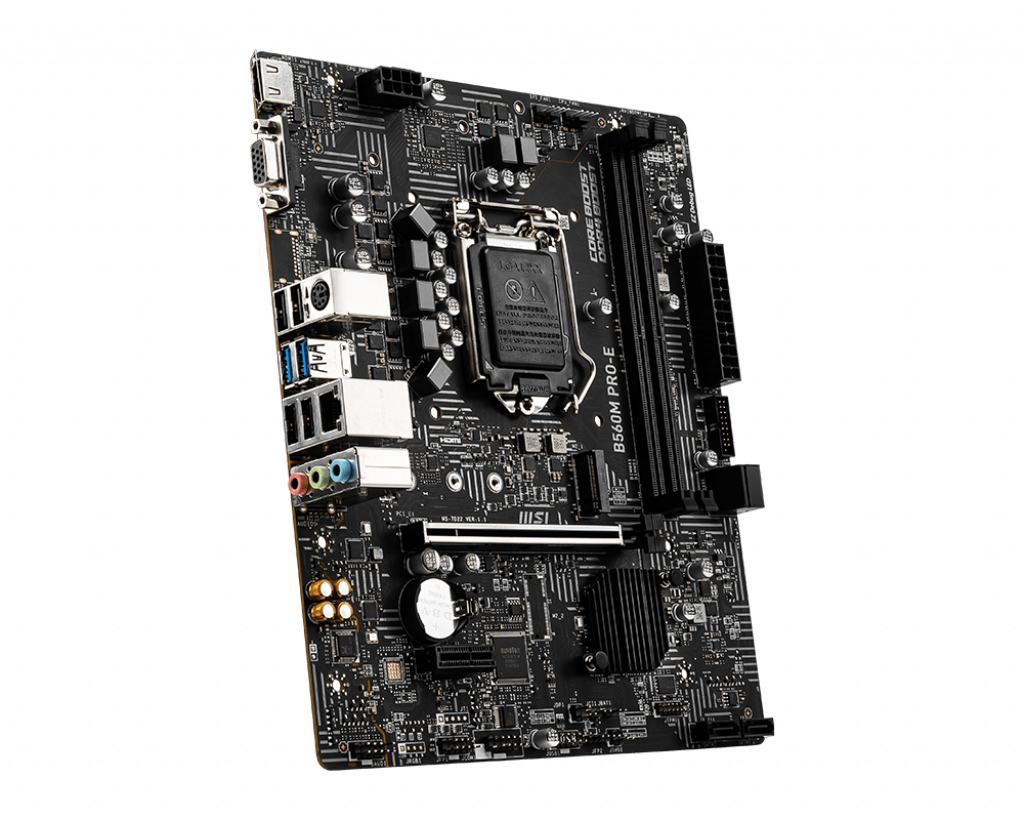

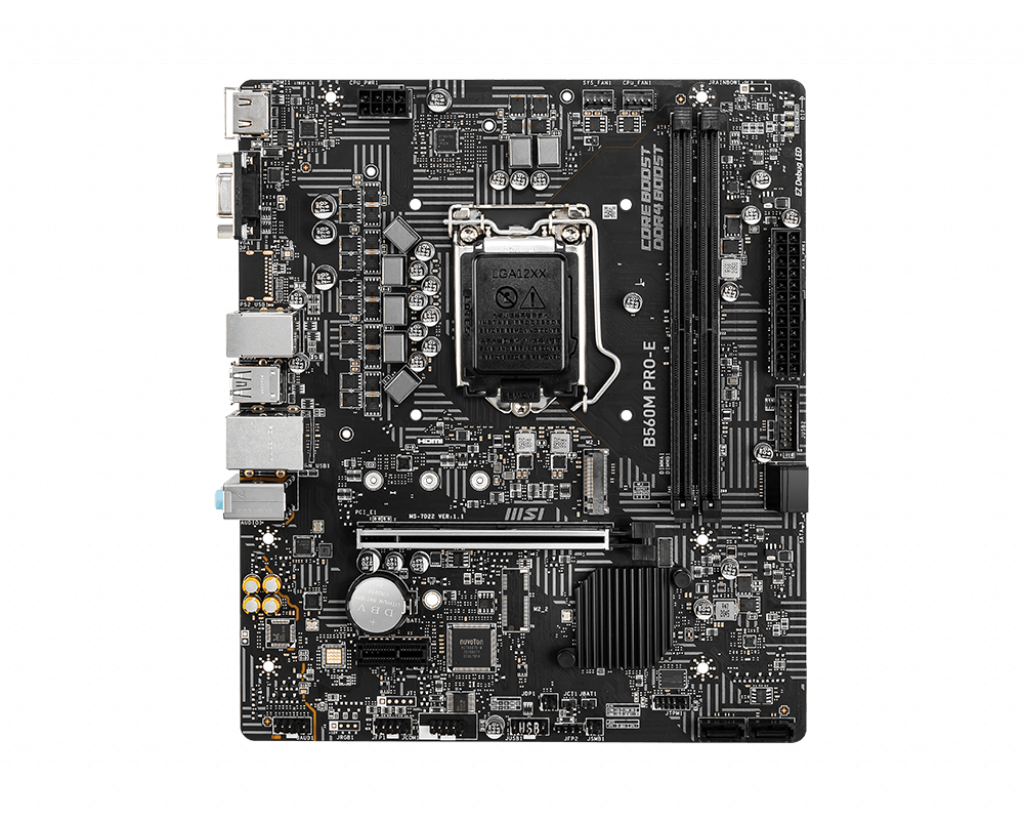

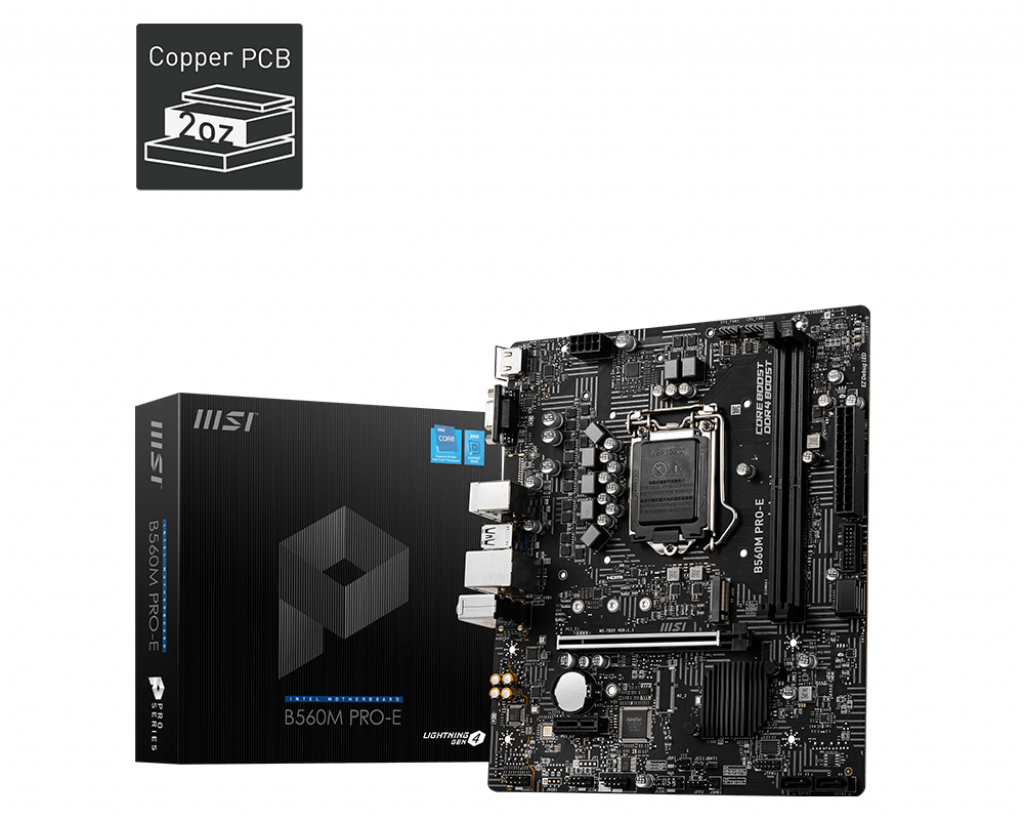

Msi B560m Pro-E 1200p Ddr4 Ses Glan Hdmi/Vga Sata3 Usb3.2 Matx

MARKA

MSI

GARANTİ SÜRESİ

36 AY

EAN

4719072807856

İŞLEMCİ

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors

YONGA SETİ

Intel® B560 chipse

BELLEK

2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800 MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

DAHİLİ GRAFİK

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz

GENİŞLEME YUVALARI

1x PCIe x16 slot (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
1x PCIe 3.0 x1 slot (From PCH)

SES DESTEĞİ

7.1-Channel High Definition Audio

LAN

1x Intel® I219V 1Gbps LAN controller

USB PORTLARI

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

DEPOLAMA ARAYÜZÜ

4x SATA 6Gb/s ports (From B560 Chipset)
1x M.2 slot (Key M)
M2_1 slot (From B560 Chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

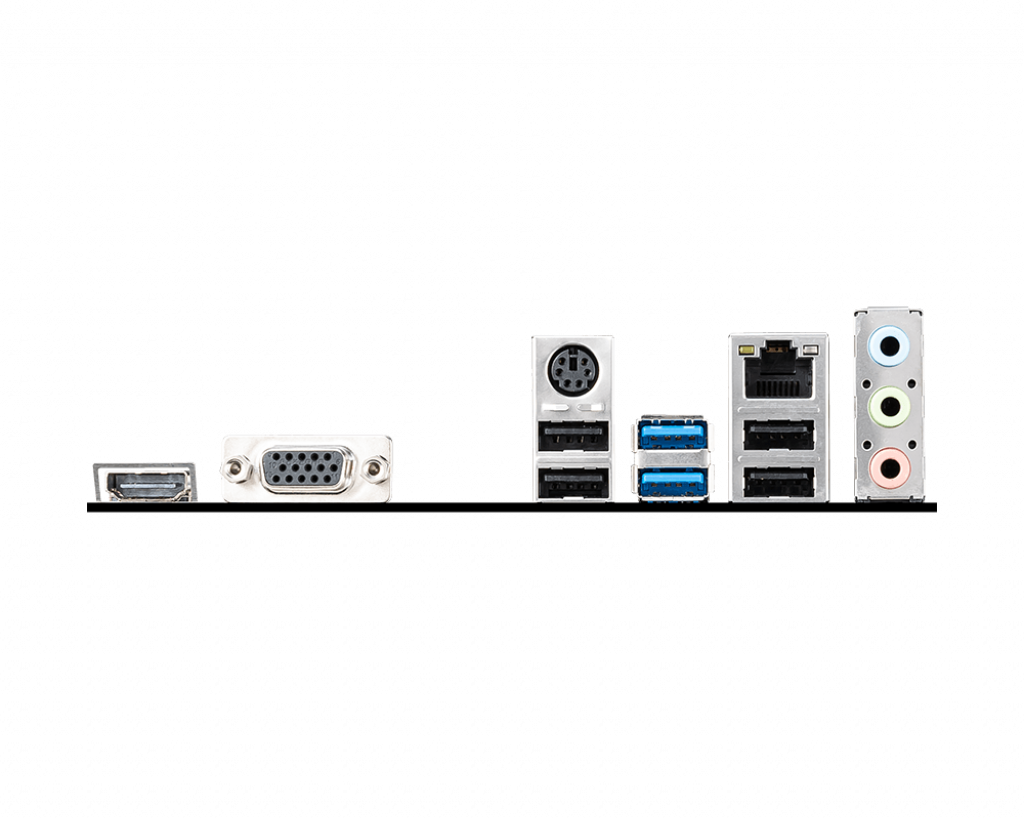

ARKA GİRİŞ/ÇIKIŞ PORTLARI

HDMI
VGA
Mouse / Keyboard
LAN port
Audio connector
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector

FORM FAKTÖRÜ

mATX Form Factor
9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
