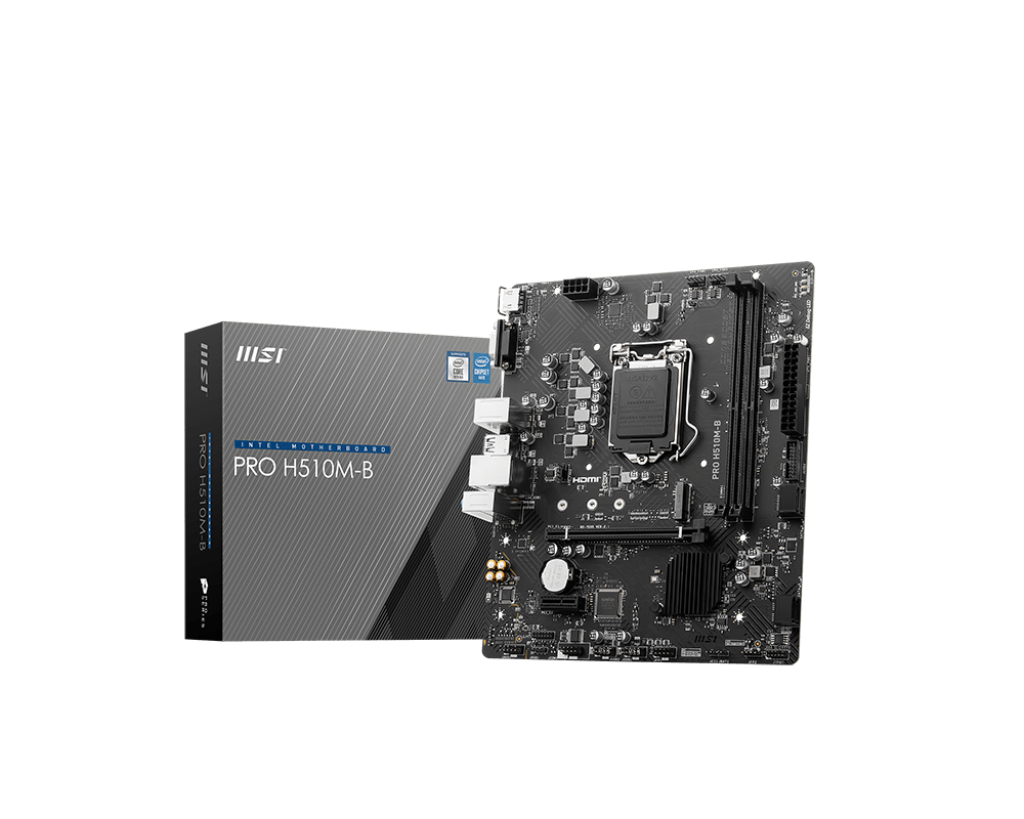

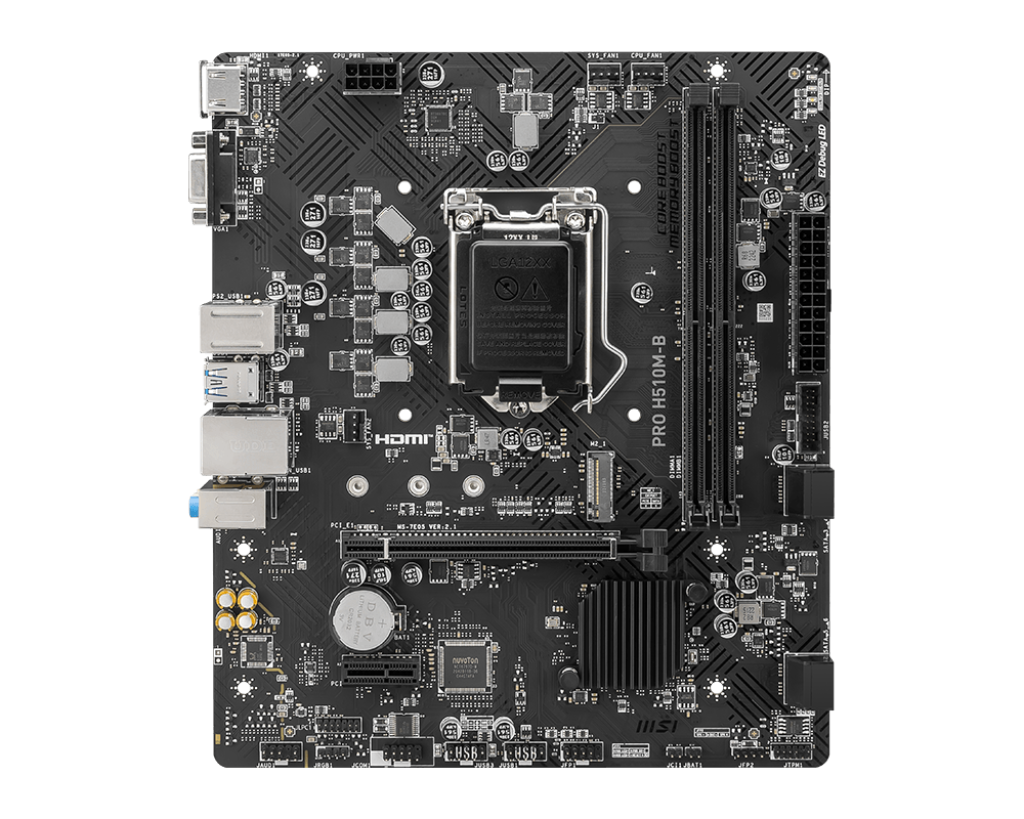

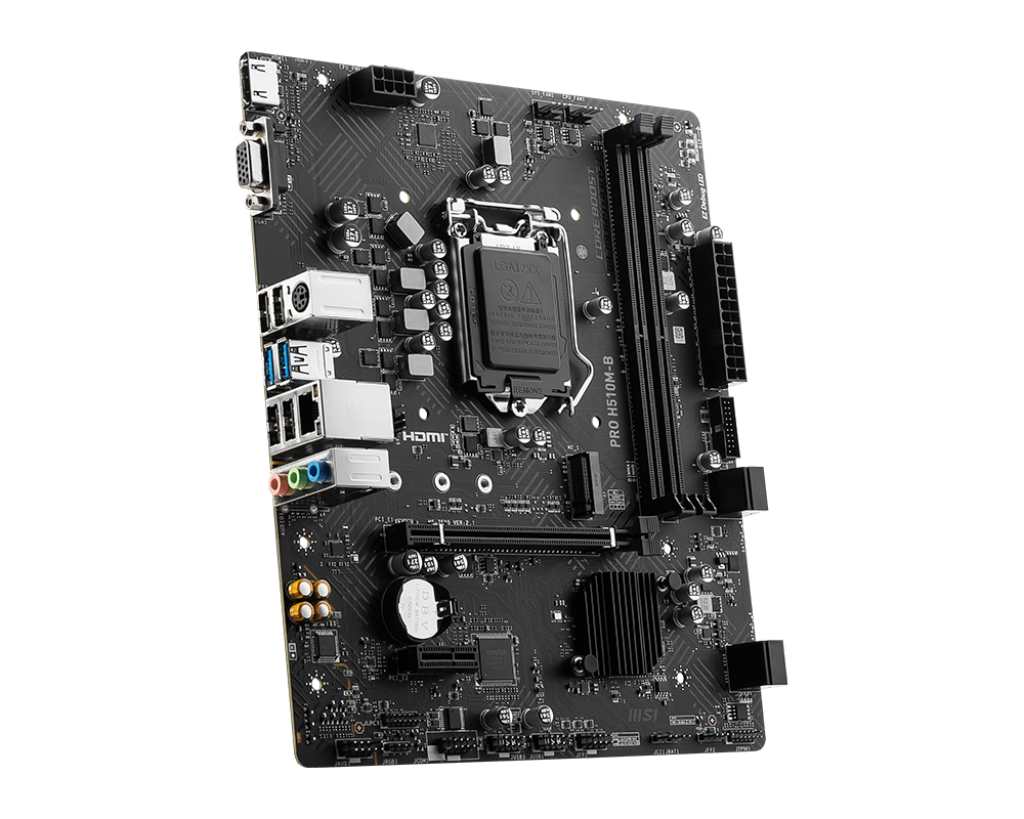

Msi Pro H510M-B 1200P DDR4 Ses Glan Hdmi/Vga Sata3 Usb3.2 Matx

MARKA

MSI

GARANTİ SÜRESİ

24 AY

EAN

4711377078870

İŞLEMCİ

Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

YONGA SETİ

INTEL H470

BELLEK

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

DAHİLİ GRAFİK

1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA

GENİŞLEME YUVALARI

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

SES DESTEĞİ

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

LAN

Realtek® 8111H Gigabit LAN

USB PORTLARI

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

DEPOLAMA ARAYÜZÜ

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

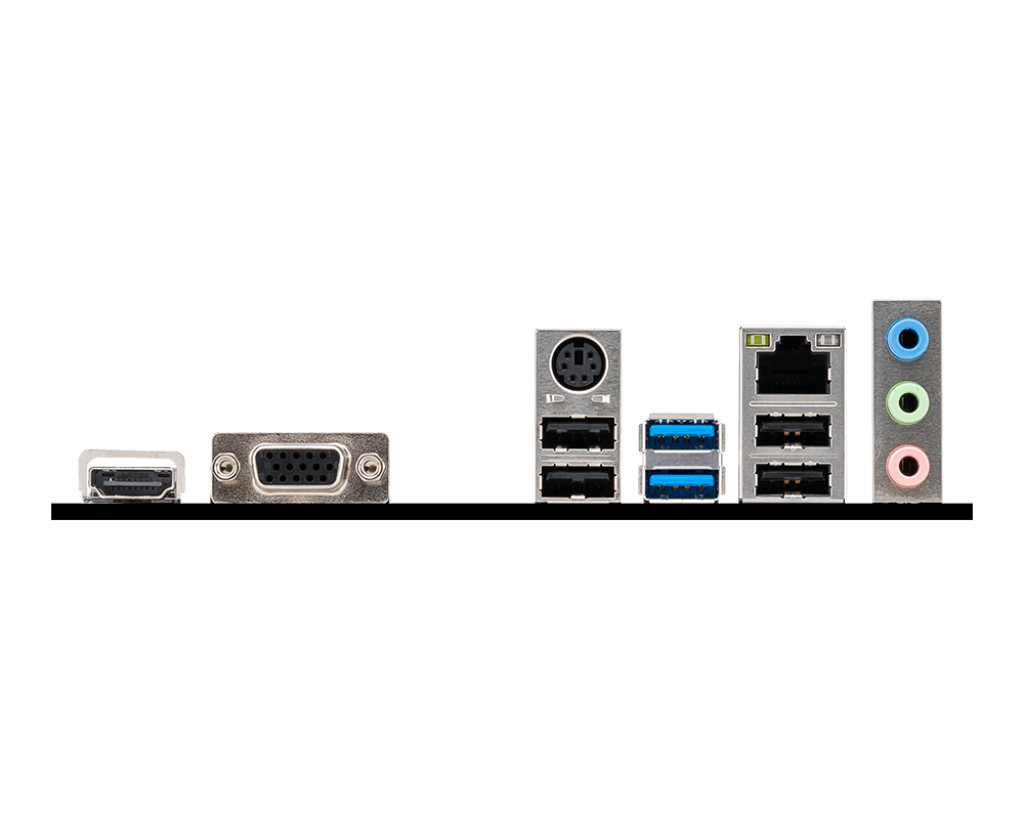

ARKA GİRİŞ/ÇIKIŞ PORTLARI

HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows® 11 64-bit
Windows® 10 64-bit

FORM FAKTÖRÜ

mATX
202mmx236mm
