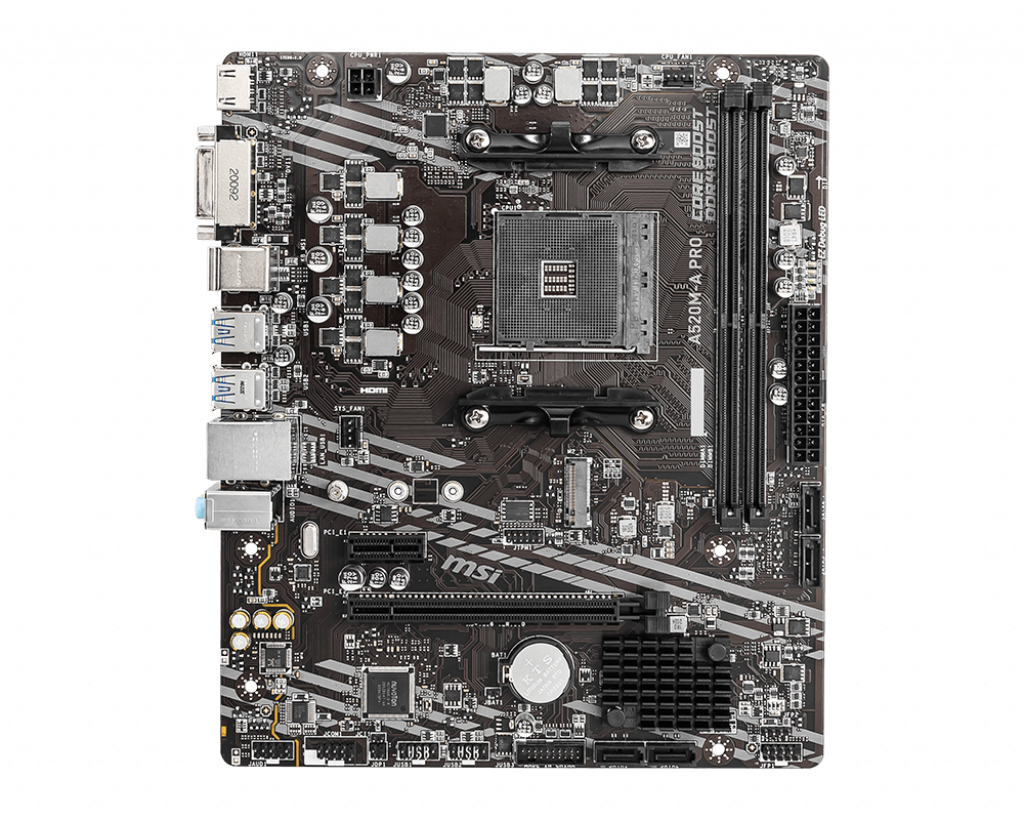

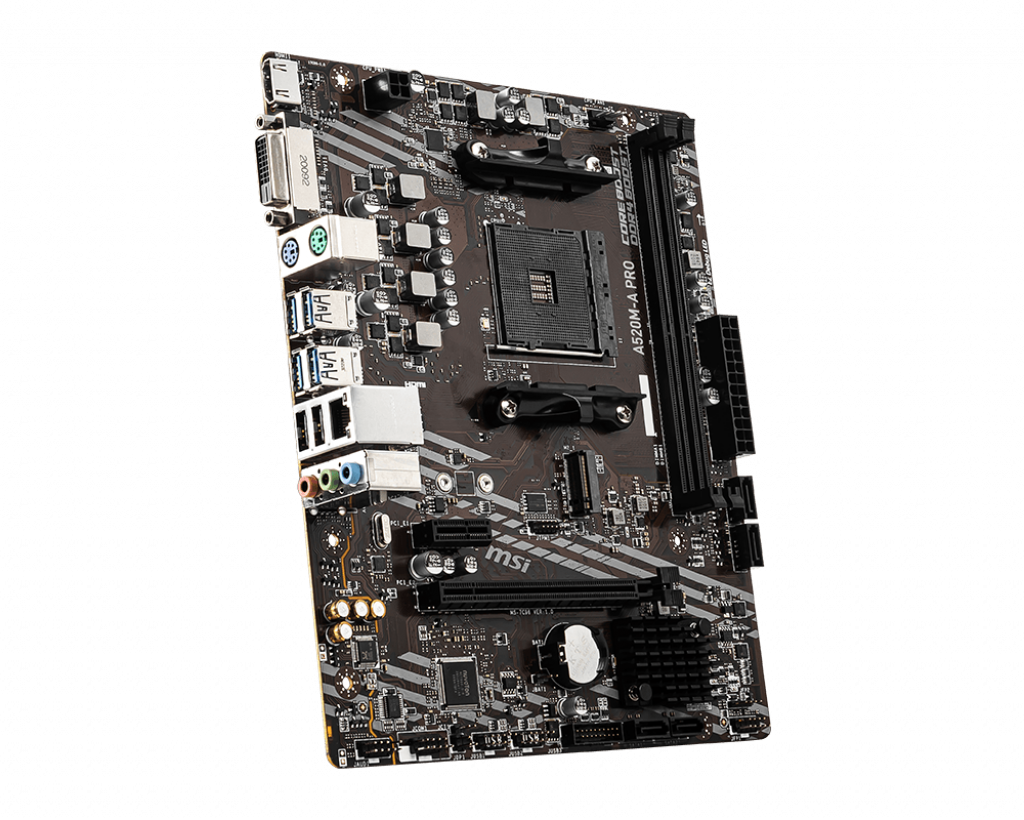

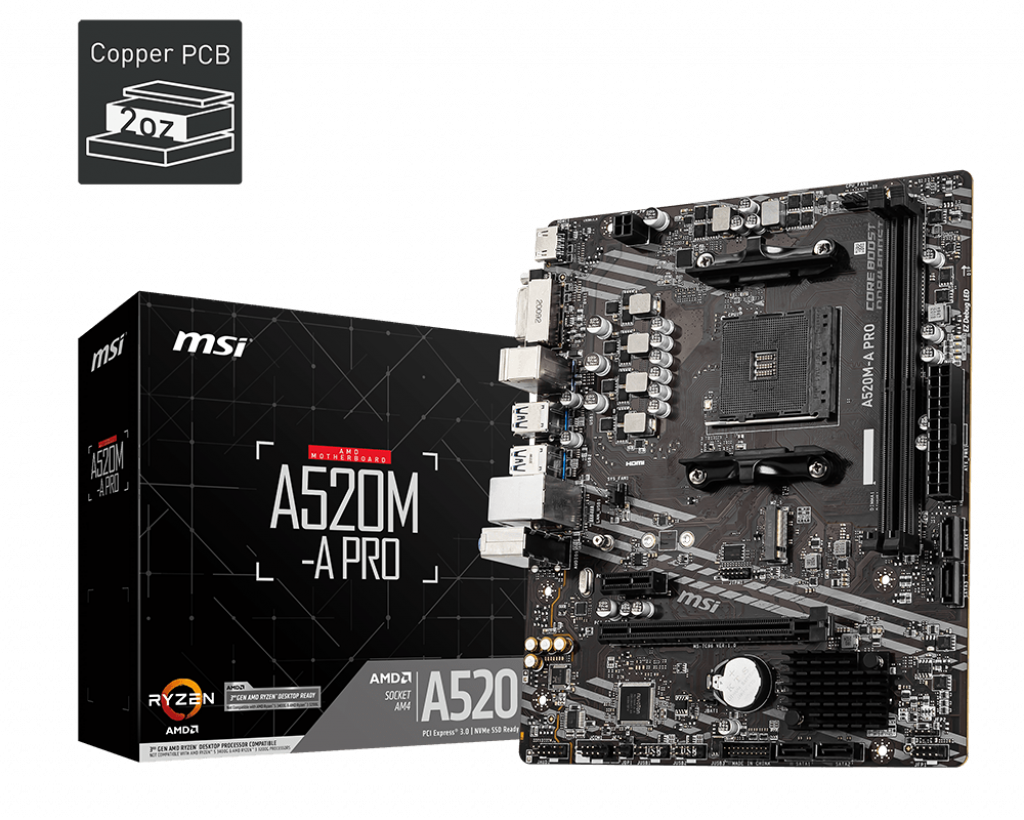

MSI A520M-A Pro AM4 DDR4 Ses GLAN HDMI/DVI SATA3 USB3.2 mATX

MARKA

MSI

GARANTİ SÜRESİ

36 AY

EAN

4719072749927

İŞLEMCİ

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

YONGA SETİ

AMD A520 Chipset

BELLEK

2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

DAHİLİ GRAFİK

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Maximum shared memory of 16 GB

GENİŞLEME YUVALARI

1x PCIe 3.0 x1 slot
1x PCIe x16 slot

SES DESTEĞİ

7.1-Channel High Definition Audio

LAN

1x Realtek® RTL8111H Gigabit LAN controller

USB PORTLARI

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

DEPOLAMA ARAYÜZÜ

4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

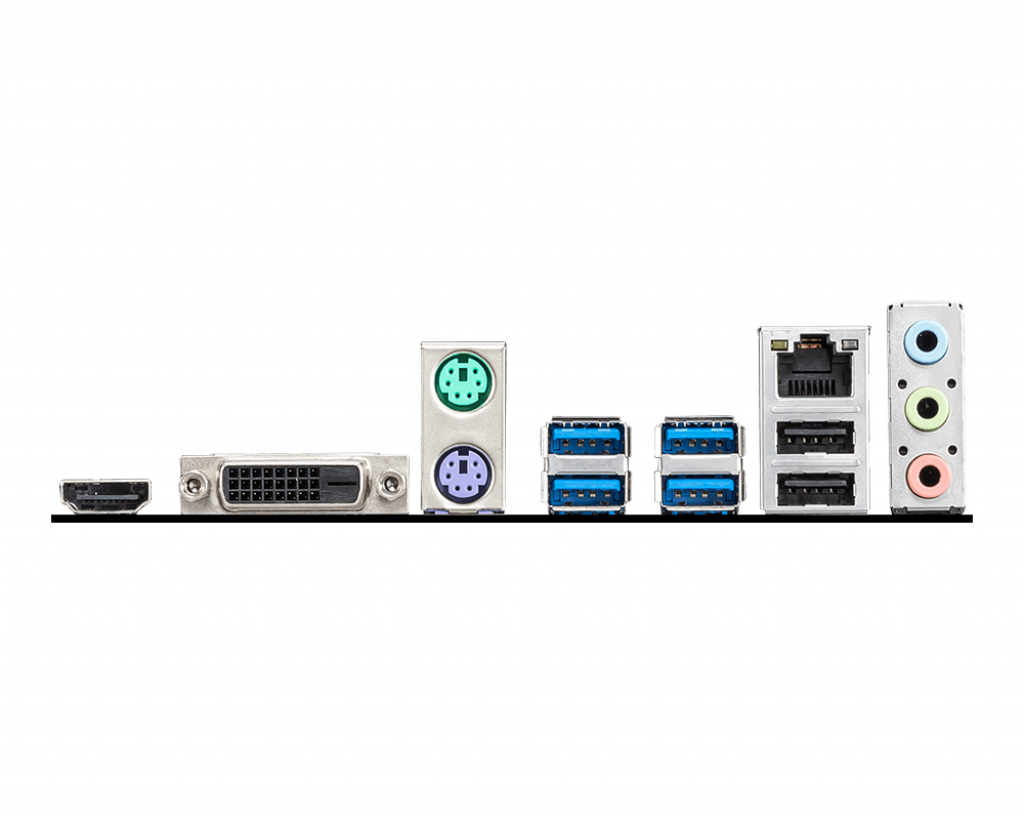

ARKA GİRİŞ/ÇIKIŞ PORTLARI

LAN port
HDMI
DVI-D
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0 Ports
Audio Connectors

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper

FORM FAKTÖRÜ

Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
