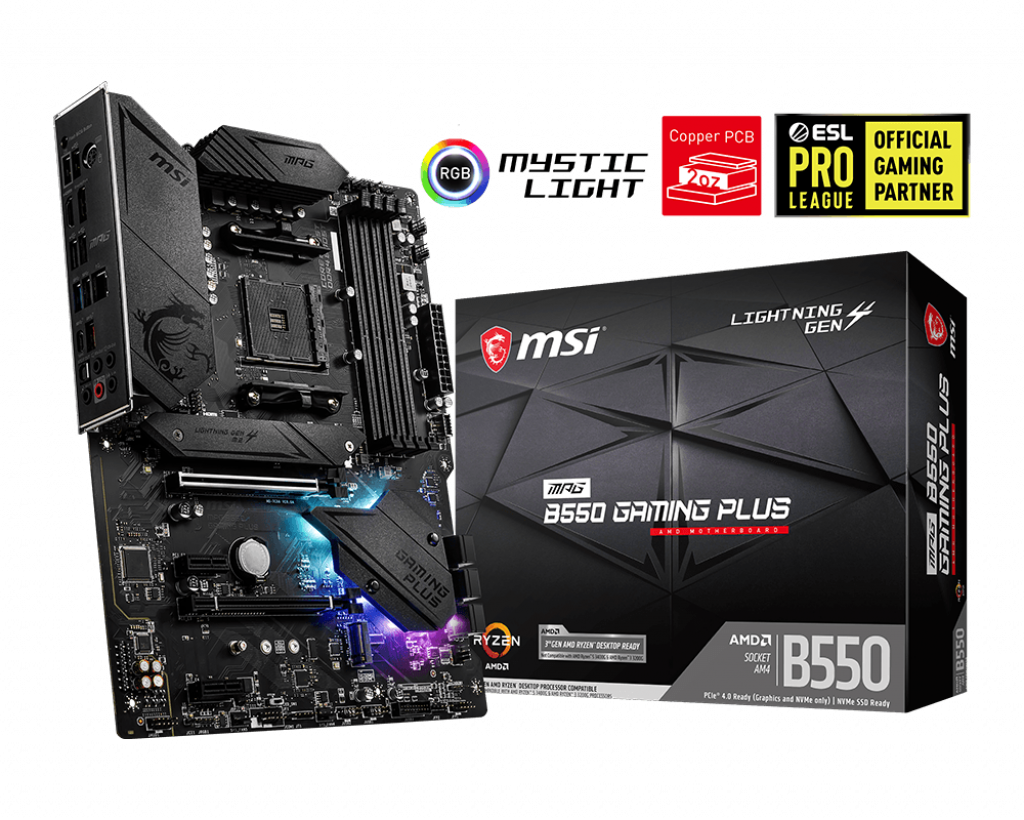

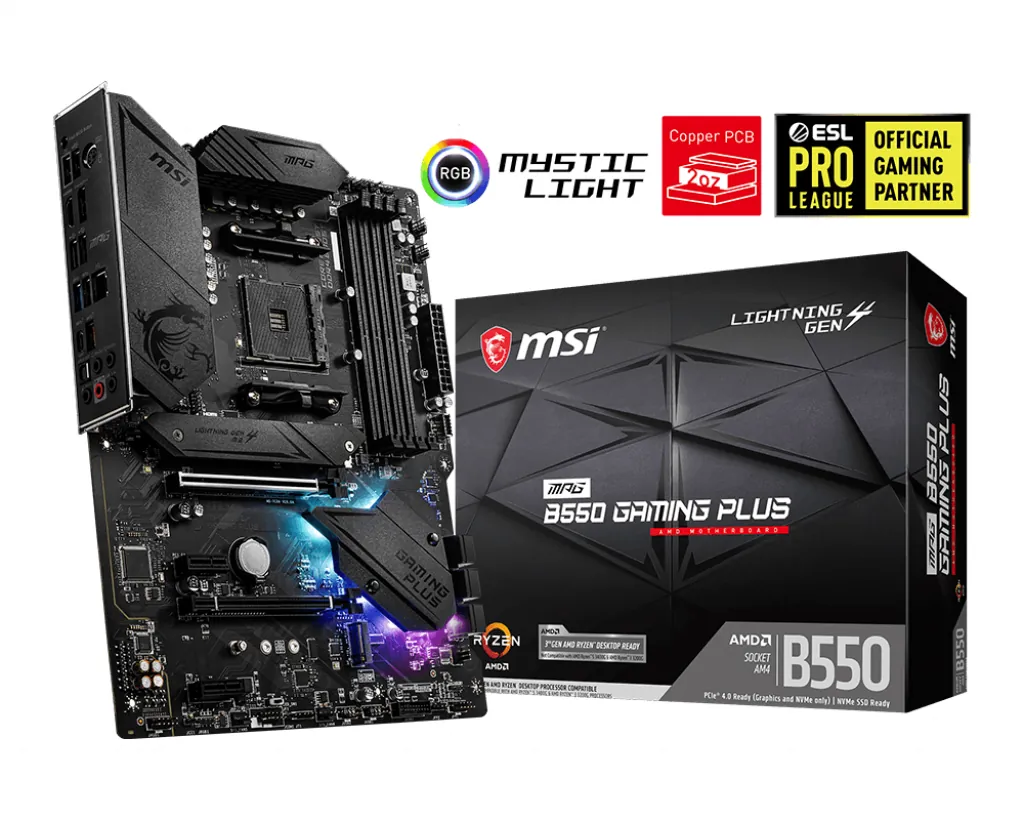

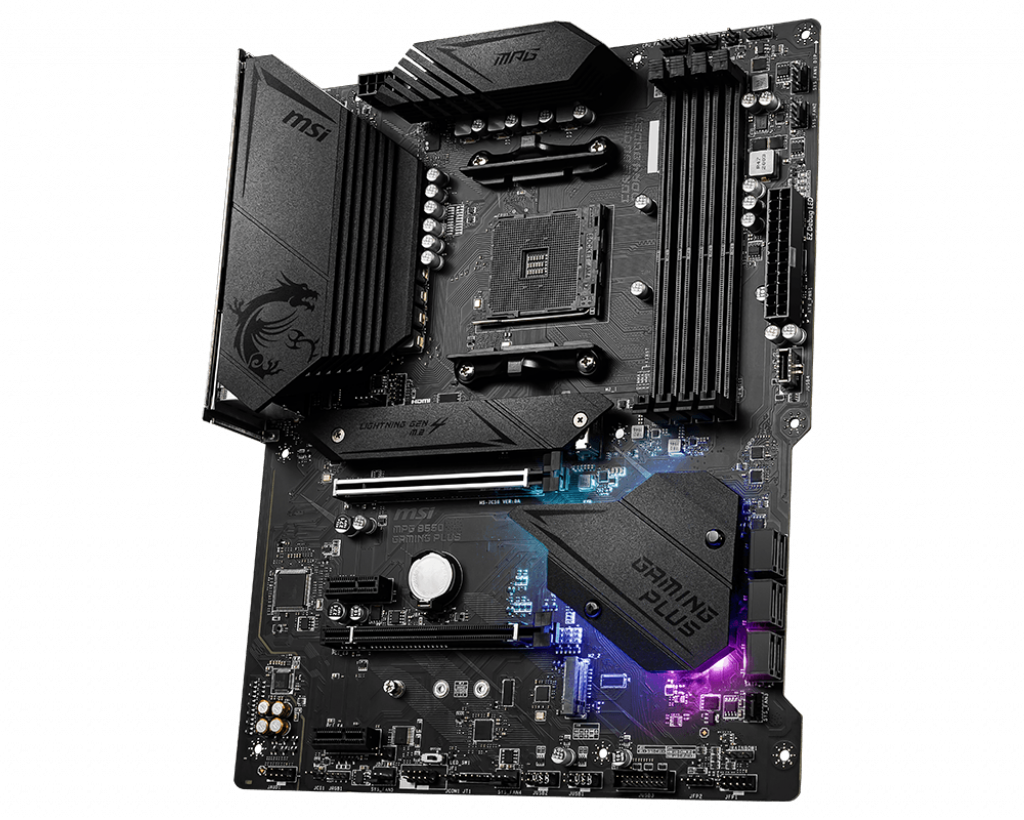

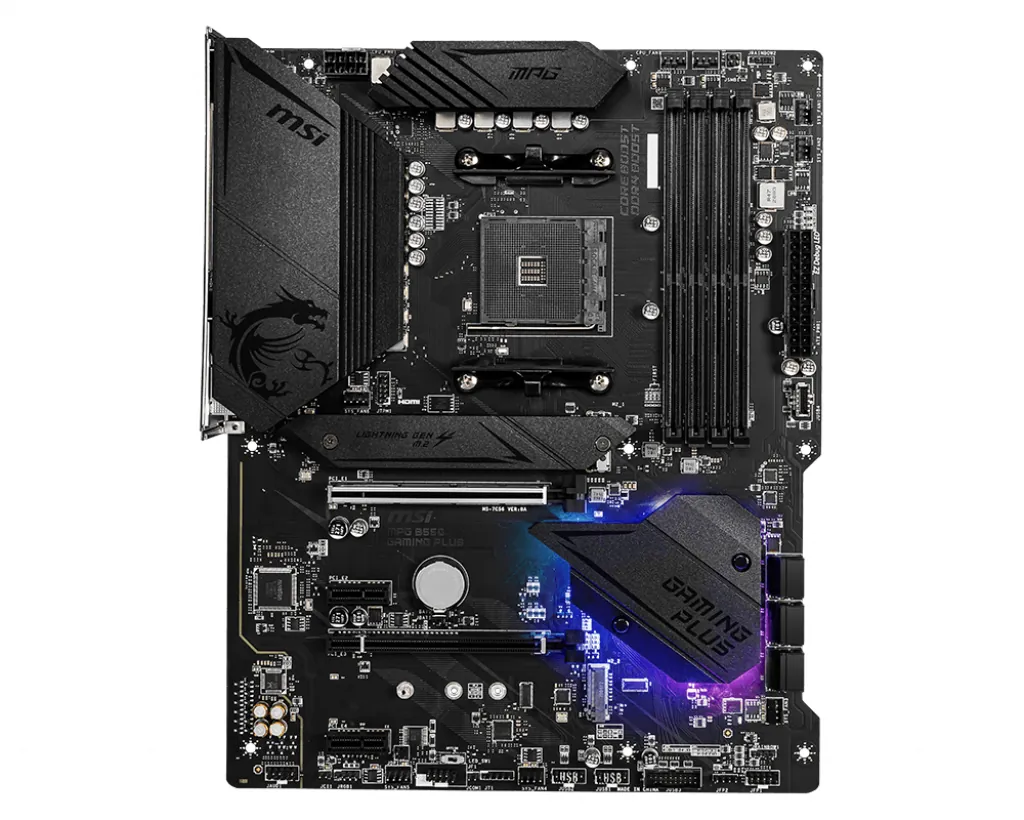

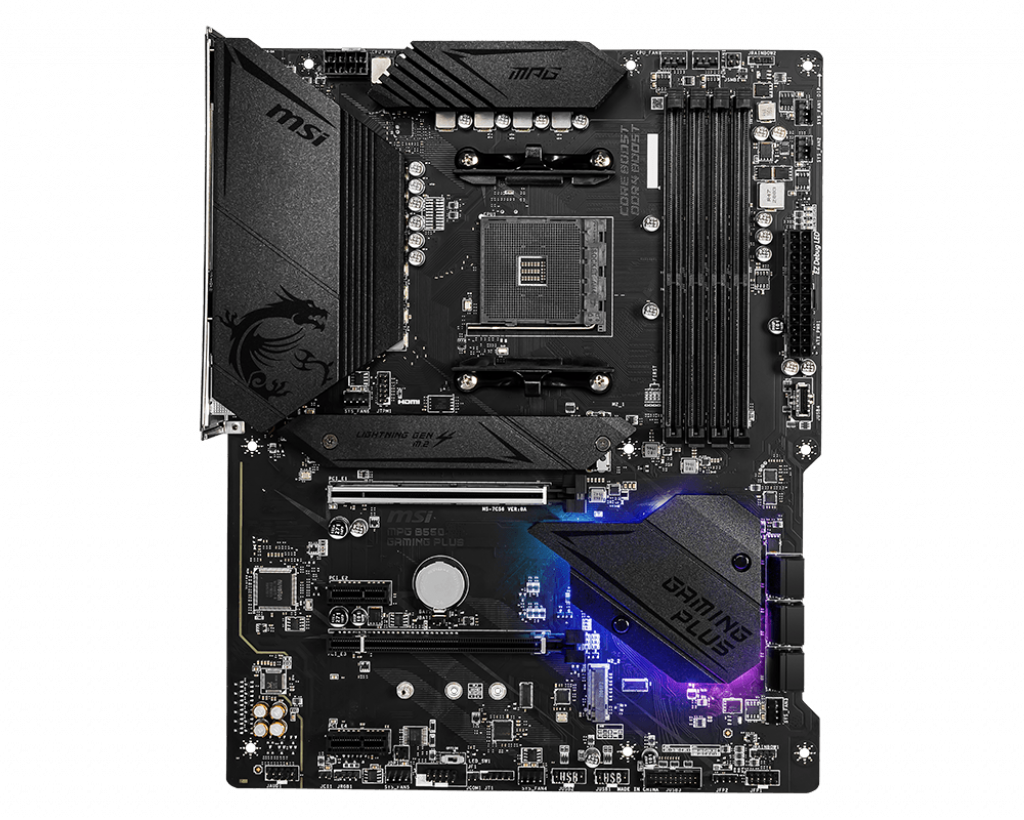

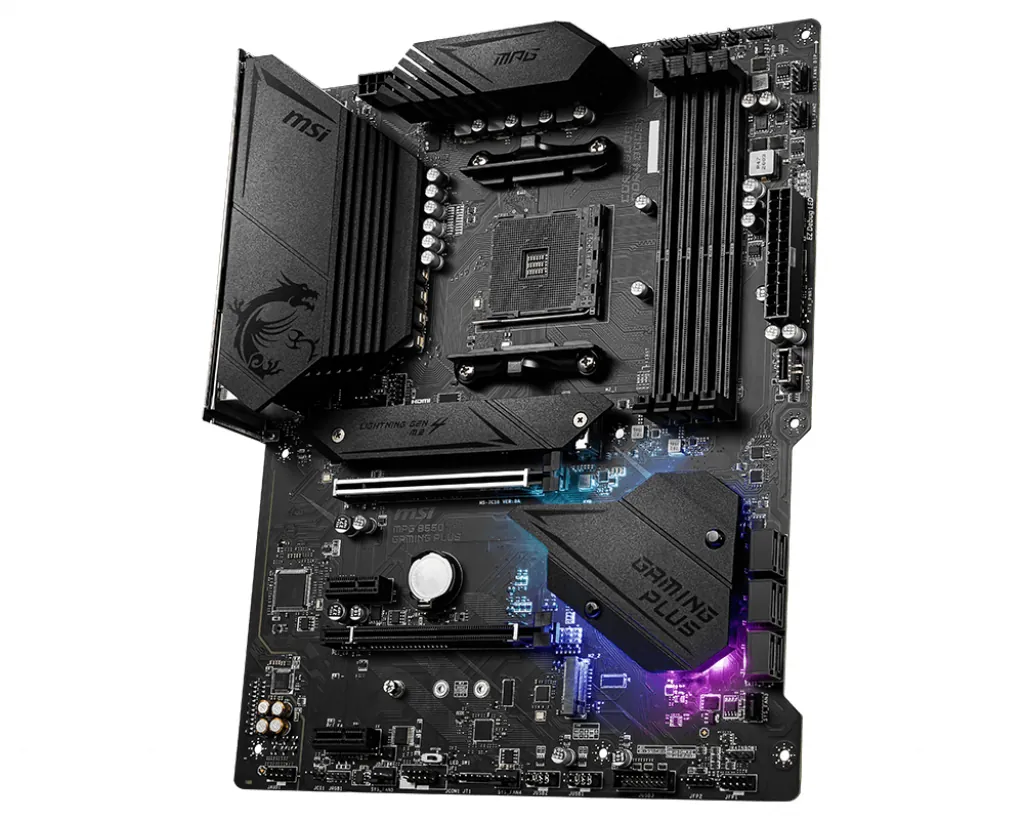

MSI Mpg B550 Gaming Plus AM4 DDR4 Ses Glan Dp/Hdmi Sata3 Usb3.2 Atx

MARKA

MSI

GARANTİ SÜRESİ

36 AY

EAN

0824142218600

İŞLEMCİ

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

YONGA SETİ

AMD B550 Chipset

BELLEK

4x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHz
1DPC 2R max speed 3866 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

DAHİLİ GRAFİK

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
Maximum shared memory of 16 GB
Available for the processor with integrated graphics.

GENİŞLEME YUVALARI

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
2x PCIe 3.0 x1 slots
The supported specification depends on installed processor.When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

SES DESTEĞİ

Realtek® ALC892 Codec

7.1-Channel High Definition Audio
Supports S/PDIF output

LAN

1x Realtek® 8111H Gigabit LAN controller

USB PORTLARI

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

DEPOLAMA ARAYÜZÜ

AMD B550 Chipset

6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.

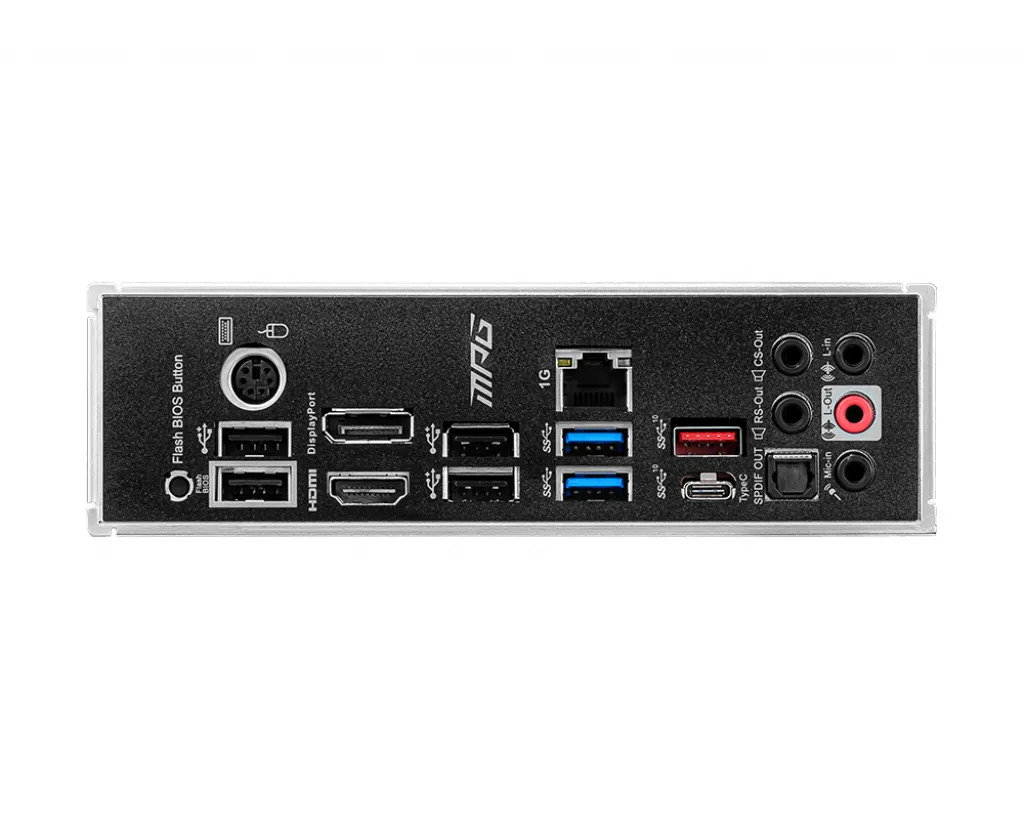

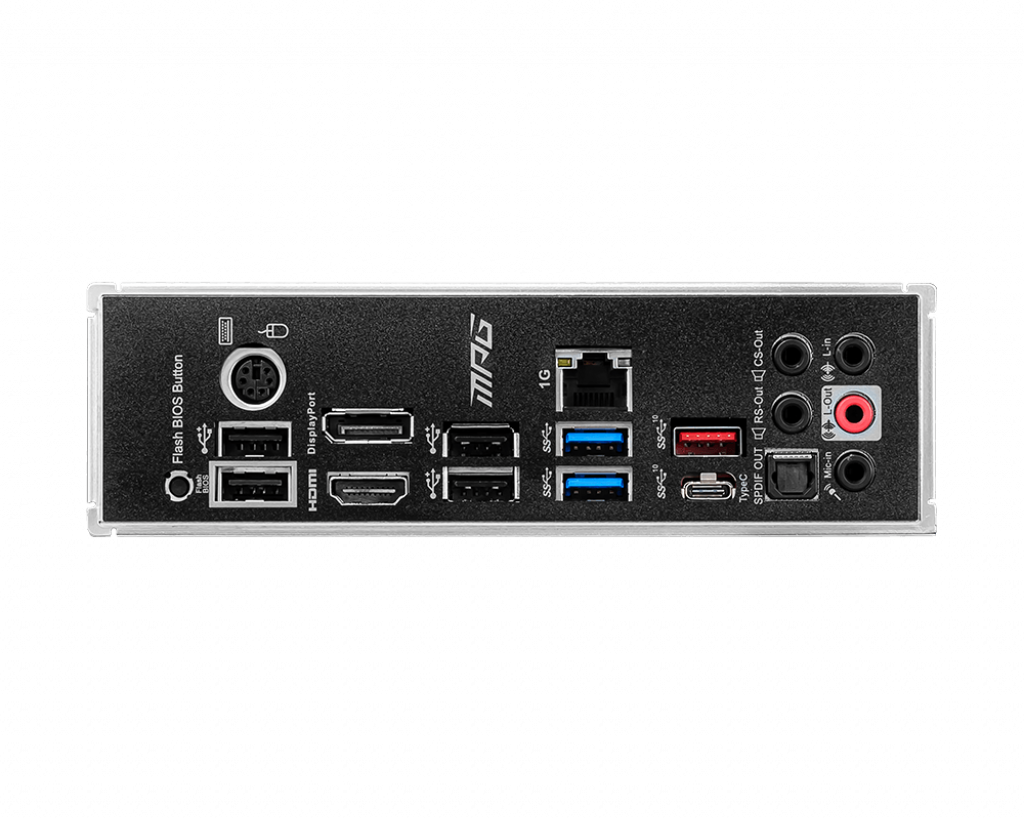

ARKA GİRİŞ/ÇIKIŞ PORTLARI

PS/2 Combo Port
DisplayPort
LAN Port
USB 3.2 Gen 2 10Gbps (Type-A)
HD Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Optical S/PDIF OUT

DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

İŞLETİM SİSTEMİ DESTEĞİ

Support for Windows® 10 64-bit

FORM FAKTÖRÜ

ATX

BIOS

-
